Test fixture kits

92 Product series
ETK-WS-SP
Spare part kit, conveyor press
ETK-WS-SP
  • Type Pressure pad
  • Version Magnet, pressure spring
  • Accessory type Spare parts
View products (1)
MA 3213T
Manual test fixture
MA 3213T
  • Housing type High desk housing
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 2 x 5 – 1700
  • Contact stroke generation Manual
View products (2)
VA 3070LT
Vacuum test fixture
VA 3070LT
  • Housing type Flat housing
  • Max. contact force 12,000 N [43,163 ozf]
  • Max. interface signals 0 – 7104
  • Contact stroke generation Vacuum
View products (1)
FB-RC
Locking interface
FB-RC
  • Type Receiver/test fixture fixing mechanism
  • Version GR2270/71 (manual)
  • Accessory type Additional function
View products (4)
INGUN SELECTION
RC
Receiver
RC
  • Max. interface signals 10 – 1700
  • Contact stroke generation Manual
  • Max. internal interface blocks 10
  • Approx. parallel contact stroke 4.3 mm [.169 in]
View products (1)
INGUN SELECTION
MA 2113
Manual test fixture
MA 2113
  • Housing type Desk housing
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 10 – 1700
  • Contact stroke generation Manual
View products (16)
INGUN SELECTION
MA 2012
Manual test fixture
MA 2012
  • Housing type High housing
  • Pushrod length 60 mm [2.36 in]
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 0 – 1190
View products (6)
FB-ATSMAxxx
Connector - multipole male
FB-ATSMAxxx
  • Type Set
  • Version Multipoint connector
  • Connection Wire-wrap posts
  • Accessory type Additional function
View products (2)
FB-VAxxxx
locking unit
FB-VAxxxx
  • Type Locking unit for moving plate (ADP)
  • Version Single-/dual-stage contacting
  • Accessory type Customising accessories
  • Useable area (WxD) 160 x 340 mm [6.29 x 13.3 in]
View products (17)
INGUN SELECTION
MA 3212
Manual test fixture
MA 3212
  • Housing type Desk housing
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 7 – 1190
  • Contact stroke generation Manual
View products (2)
INGUN SELECTION
MA 2109
Manual test fixture
MA 2109
  • Housing type Desk housing
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 5 – 850
  • Contact stroke generation Manual
View products (1)
INGUN SELECTION
WS Keysight
Interchangeable kit
WS Keysight
  • Version With interface
  • Pushrod length 20 mm [.787 in]
  • Useable area (WxD) 348 x 320 mm [13.7 x 12.5 in]
  • Max. interface signals 3666 – 7332
View products (6)

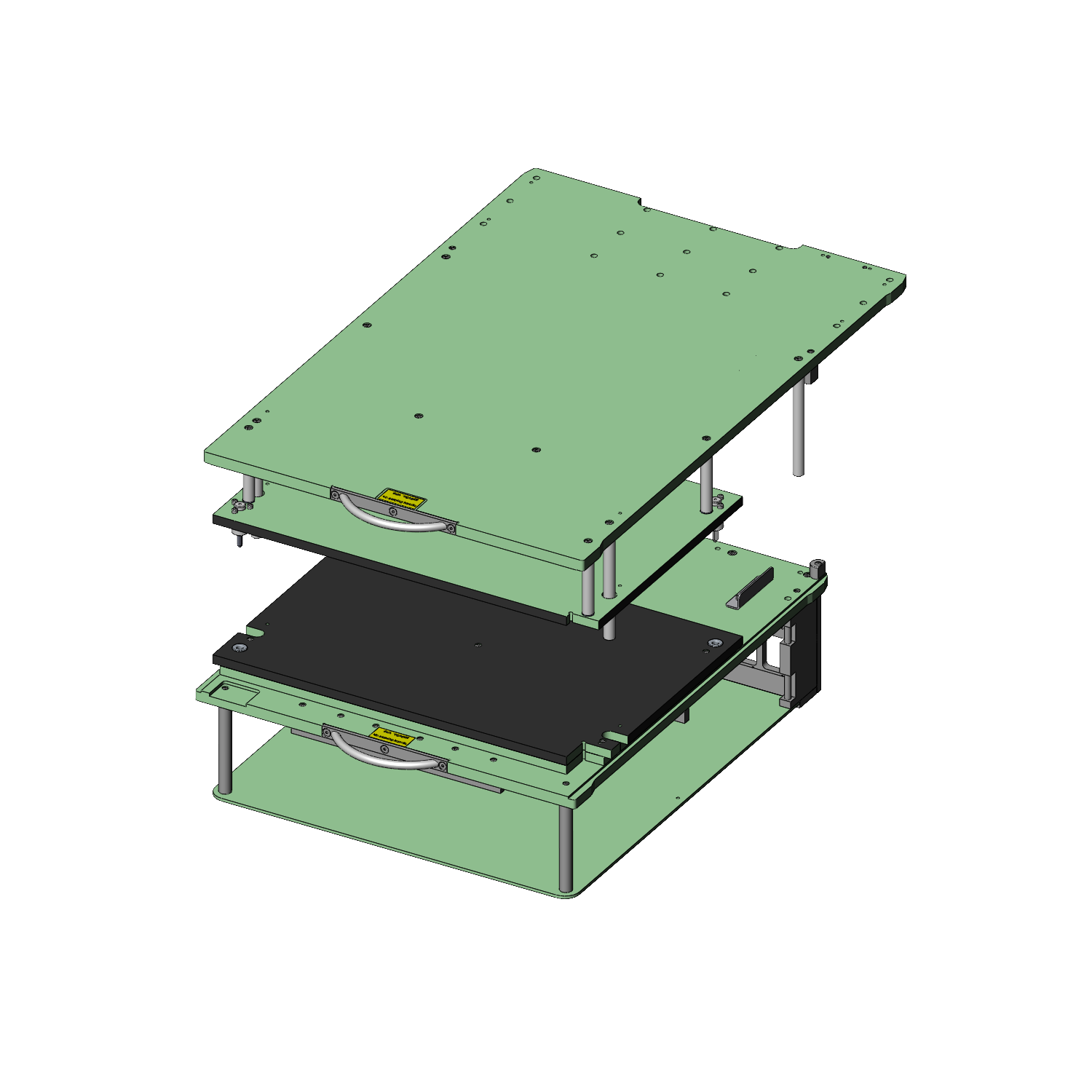

WS Asys
Interchangeable kit
WS Asys
  • Version With interface
  • Pushrod length 20 mm [.787 in]
  • Useable area (WxD) 445 x 345 mm [17.5 x 13.5 in]
  • Max. interface signals 20 – 3400
View products (2)
VK-VAxxxx
Vacuum cassette
VK-VAxxxx
  • Type VA 4030
  • Version 1-stage / 2-stage
  • Accessory type Additional function
  • Useable area (WxD) 360 x 230 mm [14.1 x 9.05 in]
View products (3)
INGUN SELECTION
ATS MA12
Exchangeable kit
ATS MA12
  • Version ESD with interface
  • Pushrod length 60 mm [2.36 in]
  • Useable area (WxD) 220 x 180 mm [8.66 x 7.08 in]
  • Max. interface signals 0 – 1190
View products (7)
INGUN SELECTION
MA 2011
Manual test fixture
MA 2011
  • Housing type Desk housing
  • Pushrod length 60 mm [2.36 in]
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 0 – 1000
View products (1)
ZSK-VAxxxx
Additional contacting unit
ZSK-VAxxxx
  • Type Excl. ATS ZSK2070
  • Version Parallel opening
  • Accessory type Additional function
  • Pushrod length 15 mm [.59 in]
View products (6)
INGUN SELECTION
MA 2112
Manual test fixture
MA 2112
  • Housing type Desk housing
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 7 – 1190
  • Contact stroke generation Manual
View products (12)
INGUN SELECTION
MA 2013
Manual test fixture
MA 2013
  • Housing type Desk housing
  • Pushrod length 60 mm [2.36 in]
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 0 – 1700
View products (5)
INGUN SELECTION
MA 2009
Manual test fixture
MA 2009
  • Housing type Desk housing
  • Pushrod length 60 mm [2.36 in]
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 0 – 1000
View products (1)

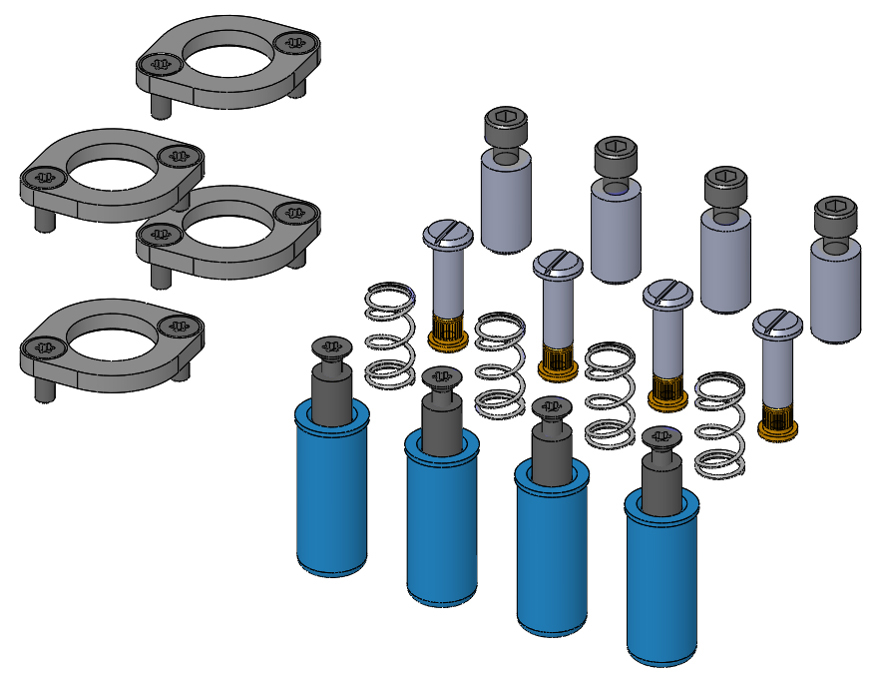

ETK-WS-KS
Spare part kit, guide
ETK-WS-KS
  • Type Guide pins/guide bushes
  • Version Chisel, round with flange (D22 x 4)
  • Accessory type Spare parts
View products (3)
INGUN SELECTION
ATS MA360
Exchangeable kit
ATS MA360
  • Version ESD without interface
  • Pushrod length 60 mm [2.36 in]
  • Useable area (WxD) 160 x 100 mm [6.29 x 3.93 in]
  • Max. interface signals 0 – 150
View products (2)
INGUN SELECTION
FB-MAxxxx
Pass/fail indication
FB-MAxxxx
  • Type Dual-stage limit
  • Version 3 holes, D = 23 mm
  • Accessory type Customising accessories
View products (72)
INGUN SELECTION
MA 2113T
Manual test fixture
MA 2113T
  • Housing type Desk housing
  • Max. contact force 2,000 N [7,193 ozf]
  • Max. interface signals 2 x 5 – 1700
  • Contact stroke generation Manual
View products (7)
