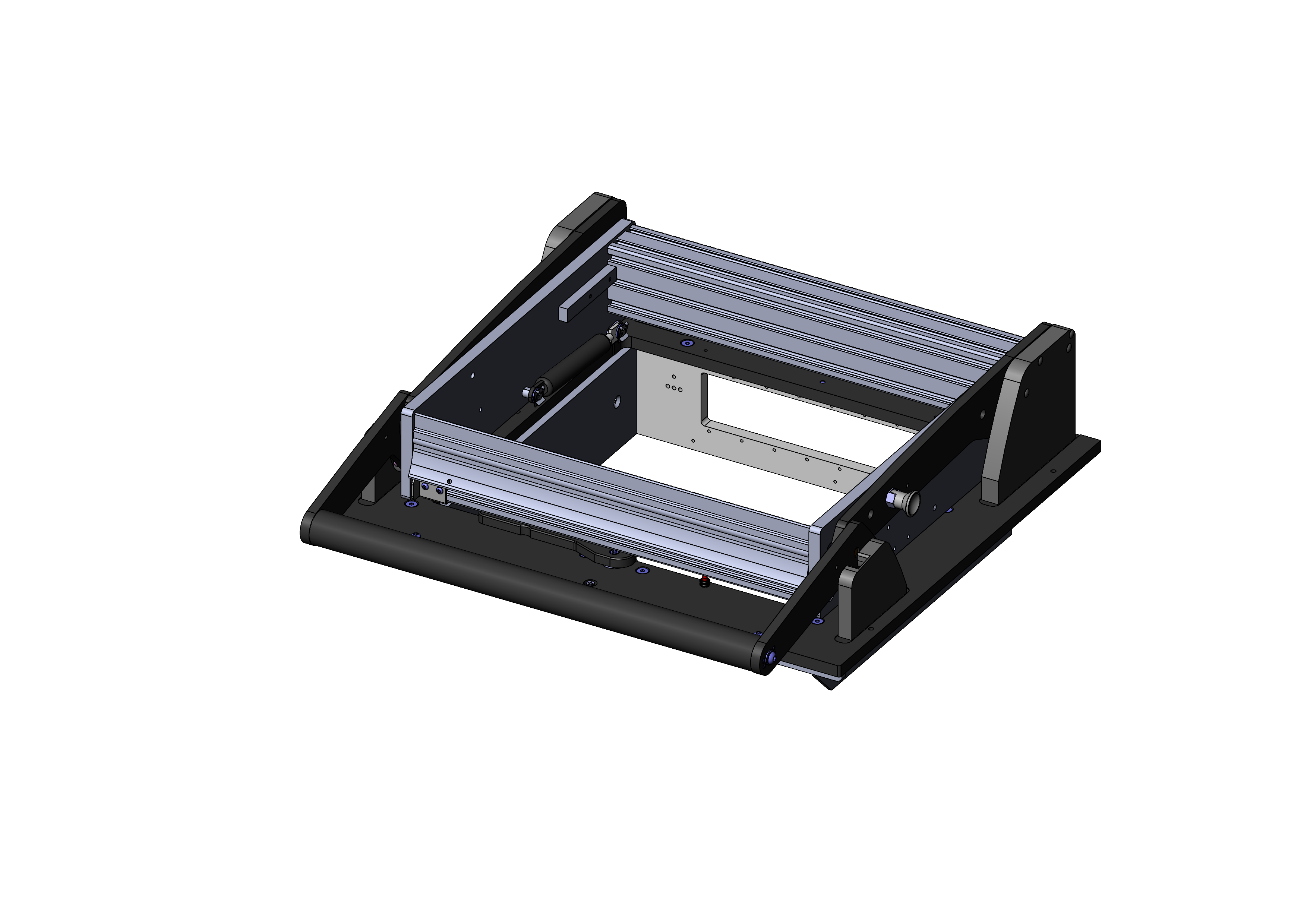

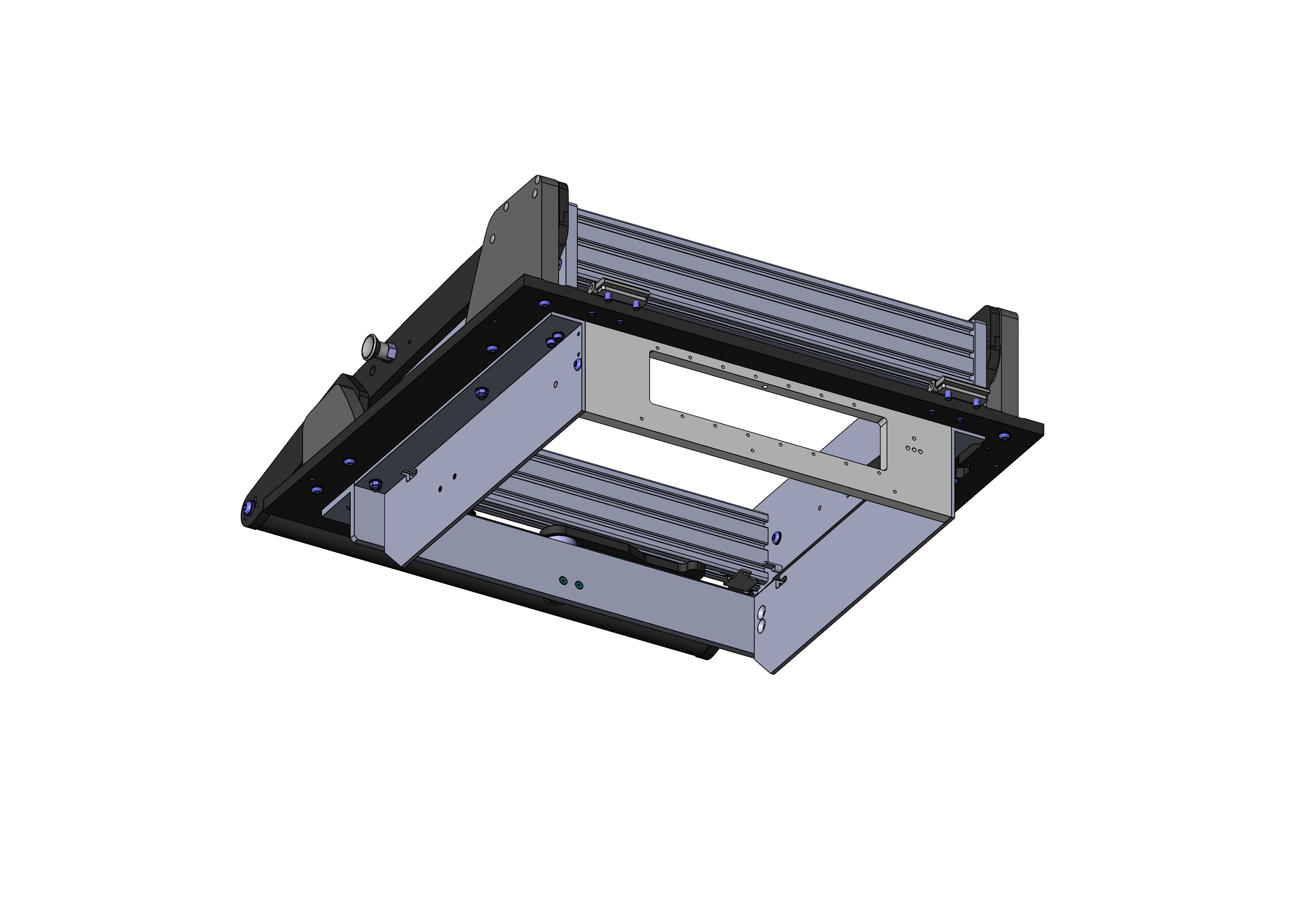

Product information "ATE MA3212"
- Parallel closing drive unit with mounting plate, with internal interface
- High contact force
- Modularly configurable signal transmission with internal interfaces
- Quick, easy, precise installation
- Energy-saving, shock-absorbing opening mechanism
- Can be used for various applications
| Approx. parallel contact stroke: | 22 mm [.866 in] |
|---|---|
| Contact stroke generation: | Manual |
| Force of gas pressure springs: | 300 N (L: 100 N / R: 200 N) |
| Interface blocks required: | Test system side |
| Main series: | ATE MAxxxx |
| Max. contact force: | 2,000 N [7,193 ozf] |
| Max. interface signals: | 7, 1190 |
| Max. internal interface blocks: | 7 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensions, closed (WxDxH): | 460 x 500 x 190 mm [18.1 x 19.6 x 7.48 in] |
| Outer dimensions, open (WxDxH): | 460 x 433 x 525 mm [18.1 x 17 x 20.6 in] |
| Pressure frame closing force: | 70 N [251 ozf] |
| Pressure frame opening angle: | 69 ° |
| Product group: | Manual drive unit |
| RoHS-compliant: | Yes |
| Series: | ATE MA32xx |
| Size: | 3212 |
| Subseries: | ATE MA3xxx |
| Test fixture type: | With mounting plate |
Login
Product details
- Parallel closing drive unit with mounting plate, with internal interface
- High contact force
- Modularly configurable signal transmission with internal interfaces
- Quick, easy, precise installation
- Energy-saving, shock-absorbing opening mechanism
- Can be used for various applications
Other products in this series:
Technical data
Technical data
- Force of gas pressure springs: 300 N (L: 100 N / R: 200 N)
- Pressure frame closing force: 70 N [251 ozf]
- Pressure frame opening angle: 69 °
- Outer dimensions, open (WxDxH): 460 x 433 x 525 mm [18.1 x 17 x 20.6 in]
- Outer dimensions, closed (WxDxH): 460 x 500 x 190 mm [18.1 x 19.6 x 7.48 in]
General data
- Product group: Manual drive unit
- Main series: ATE MAxxxx
- Subseries: ATE MA3xxx
- Series: ATE MA32xx
- Size: 3212
- Test fixture type: With mounting plate
- Contact stroke generation: Manual
- Max. interface signals: 7, 1190
- Interface blocks required: Test system side
- Max. internal interface blocks: 7
- Max. contact force: 2,000 N [7,193 ozf]
- Approx. parallel contact stroke: 22 mm [.866 in]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
