Product information "BCC-635 410 05 S 000 02 06"

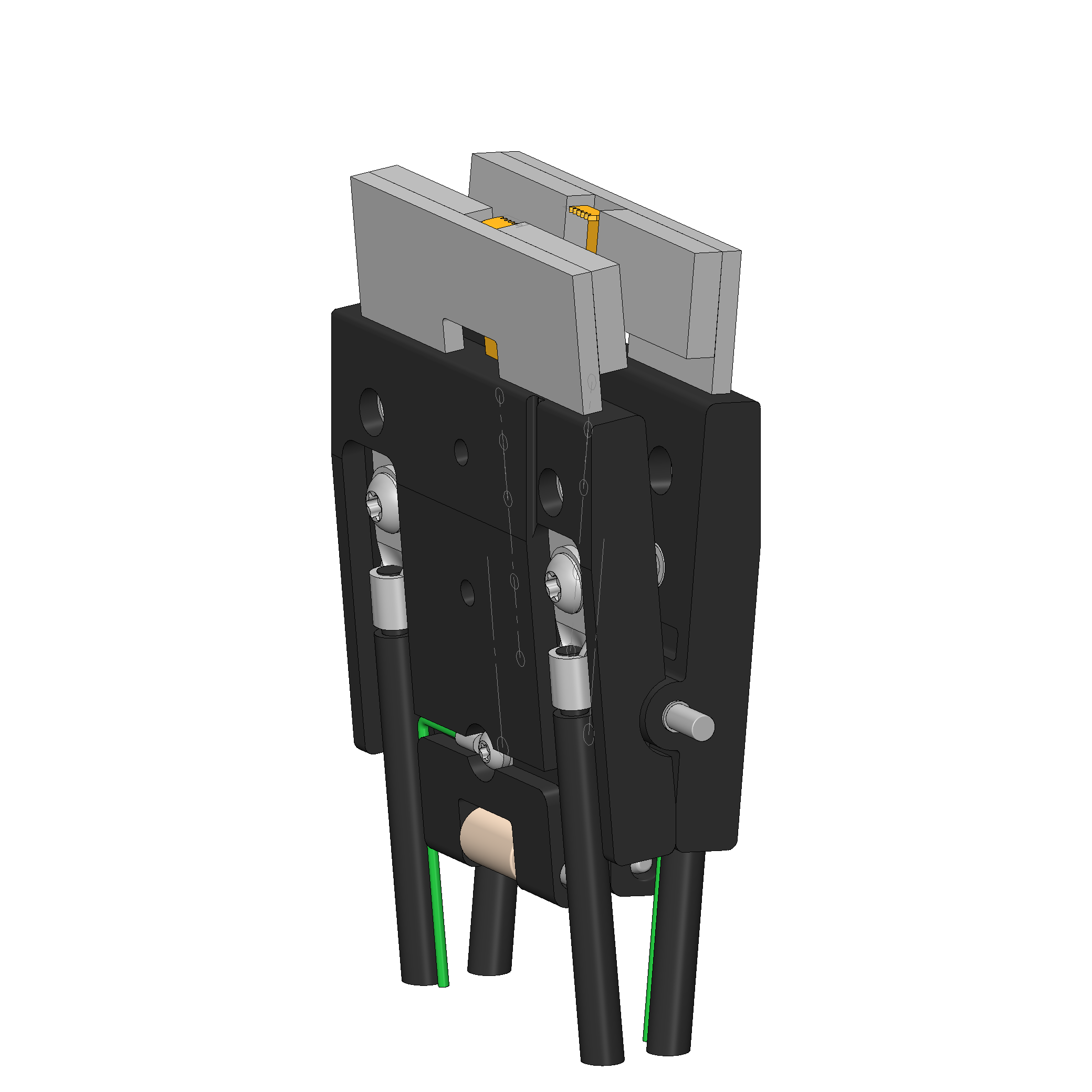

- Contacting solution for pouch cells
- Available with measuring contact for precise voltage measurements.
- Can be loaded with currents up to 100 A at DeltaT ≤ 20°K
- Connection with pre-assembled cables in 400 mm length
- Designed for a range of cell contacting applications such as Formation and Charging
- Easy installation of the clamp over the lateral axle protrusions
| Adjustable installation height: | No |
|---|---|
| Application rec.: | DC-IR, Fast Charging/High Current, Formation |
| Contacting from: | Bead, Flat contact, Post, Pin |
| Current load capacity / rated current: | 180 A |
| Current load capacity ΔT ≤ 20 K: | 120 A |
| Current load capacity ΔT ≤ 60 K: | 180 A |
| DUT / contact: | Pouch cells |
| Grid: | 30 mm [1,181 mil] |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | Yes |
| Product group: | BCC high-current clamps (flat / round), Battery Contacting |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | BCC-635 |
| Sub-product group: | BCC high-current clamps (flat / round) |
| Tip diameter: | 41 mm [1.61 in] |
| Tip style: | 02 flat |
| Tip style surface: | S silver |
| Total length: | 63 mm [2.48 in] |
| Type of test probe connection: | Pre-wired |
| Typical resistance (Ri): | 1 mOhm |
Login
Product details
- Contacting solution for pouch cells
- Available with measuring contact for precise voltage measurements.
- Can be loaded with currents up to 100 A at DeltaT ≤ 20°K
- Connection with pre-assembled cables in 400 mm length
- Designed for a range of cell contacting applications such as Formation and Charging
- Easy installation of the clamp over the lateral axle protrusions
Other products in this series:
Technical data
Electrical data

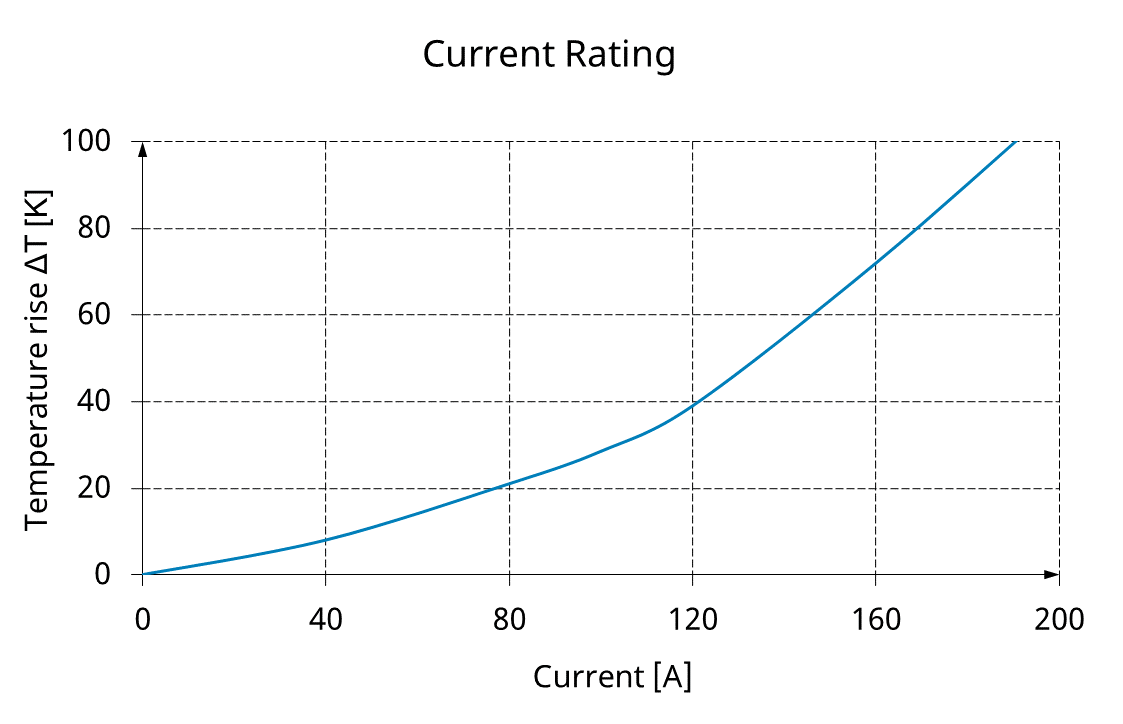

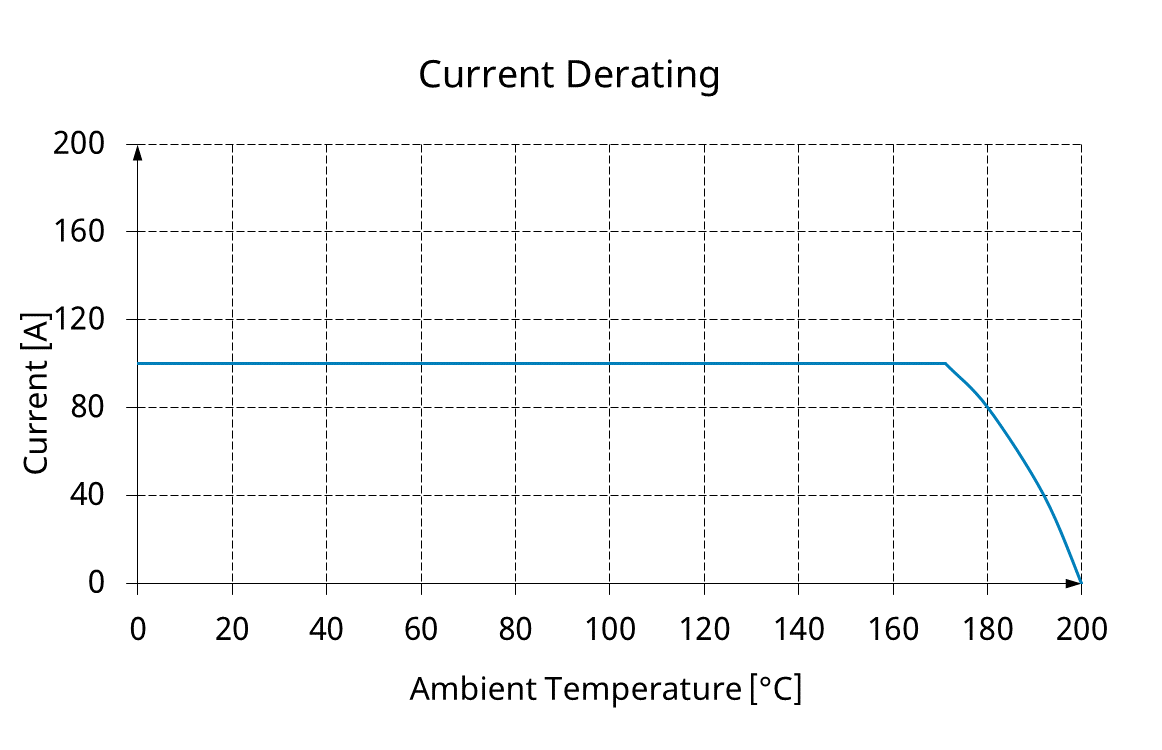

- Current load capacity / rated current: 180 A
- Current load capacity ΔT ≤ 20 K: 120 A
- Current load capacity ΔT ≤ 60 K: 180 A
- Typical resistance (Ri): 1 mOhm
General data
- Product group: BCC high-current clamps (flat / round), Battery Contacting
- Sub-product group: BCC high-current clamps (flat / round)
- Series: BCC-635
- Application rec.: Fast Charging/High Current, DC-IR, Formation
- Grid: 30 mm [1,181 mil]
- Contacting from: Bead, Pin, Flat contact, Post
- DUT / contact: Pouch cells
- Magnetic: Yes
- Quick-exchange system: No
- Type of test probe connection: Pre-wired
- Adjustable installation height: No
- Non-rotating: Yes
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Tip style data

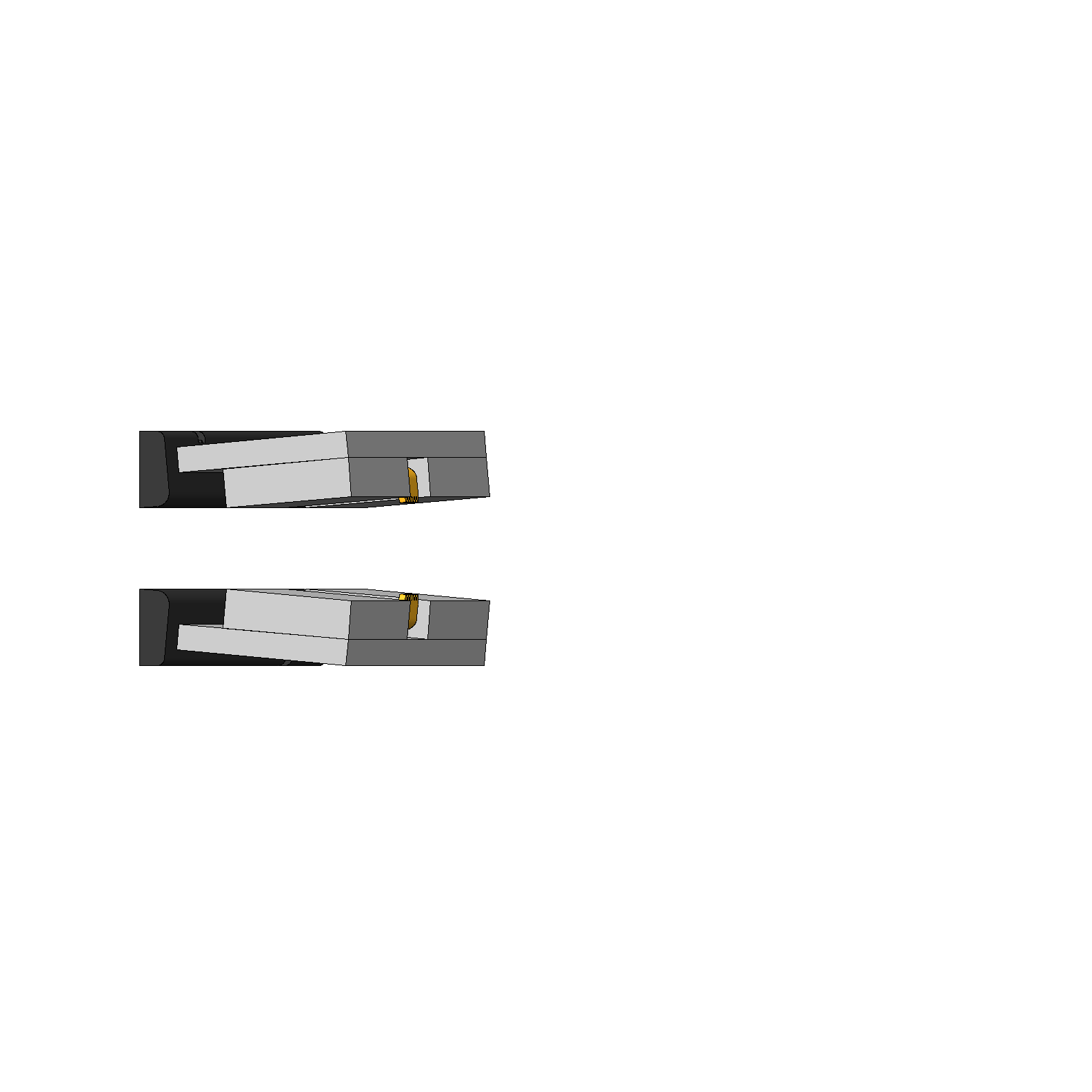

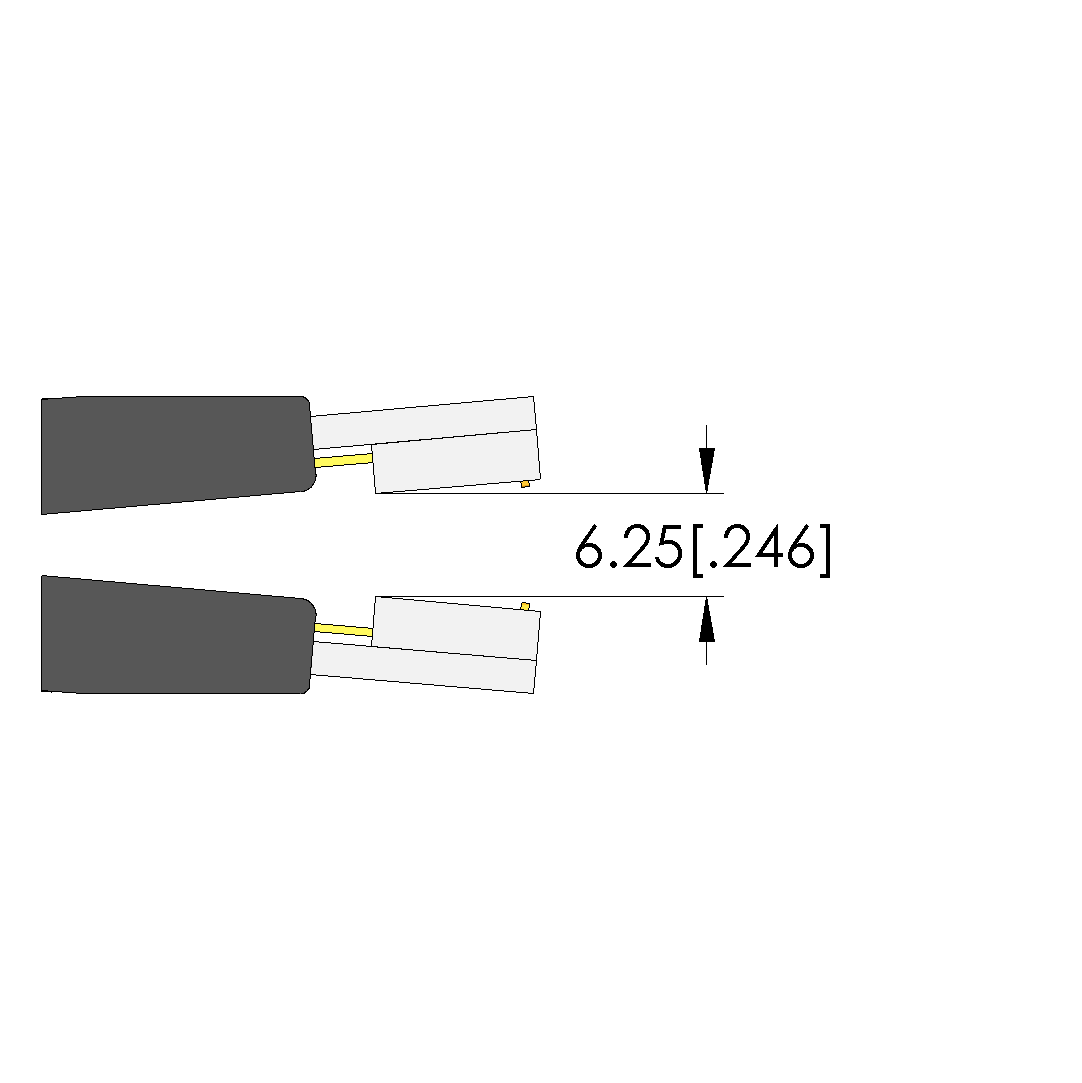

- Tip style: 02 flat
- Tip diameter: 41 mm [1.61 in]
- Tip style surface: S silver
Mechanical data

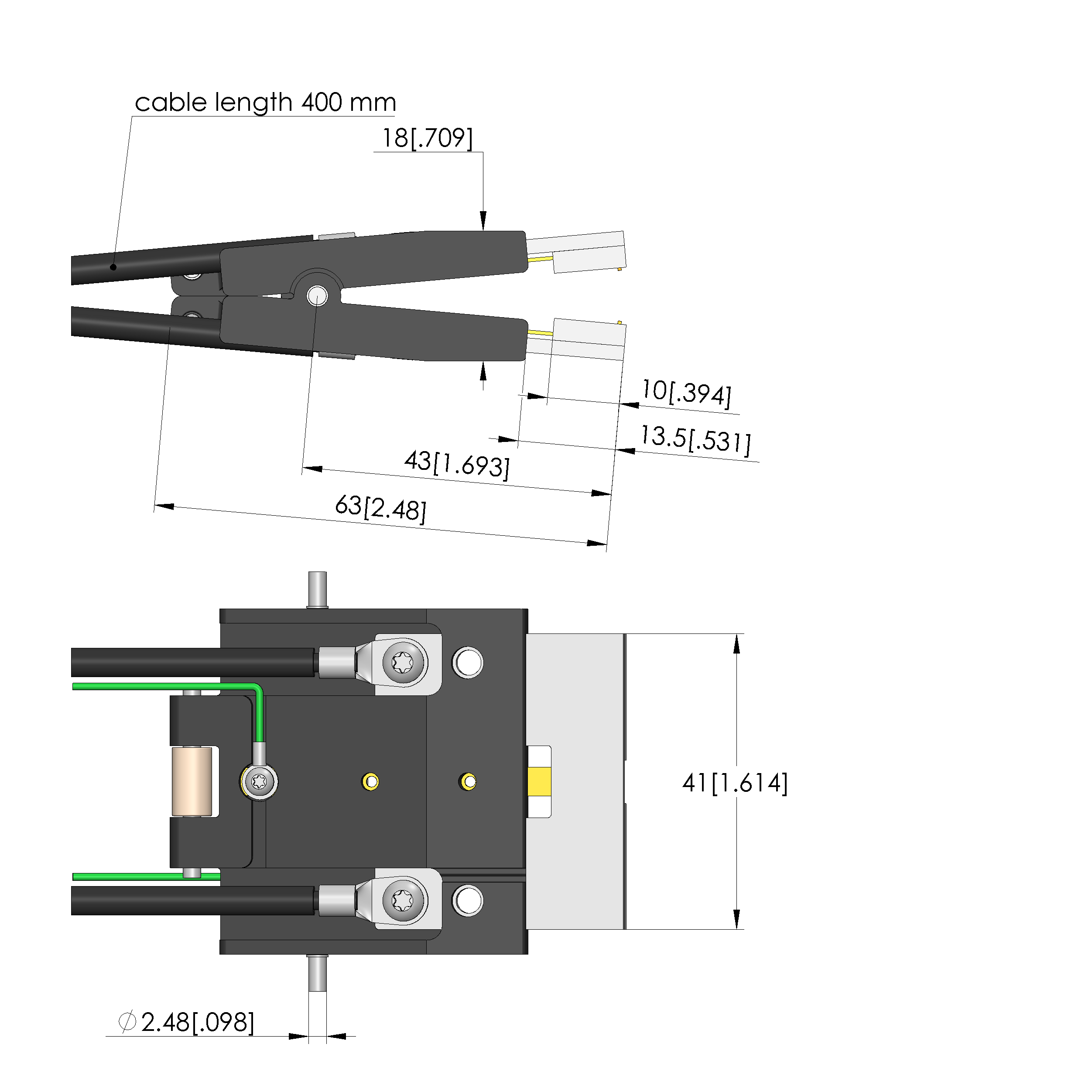

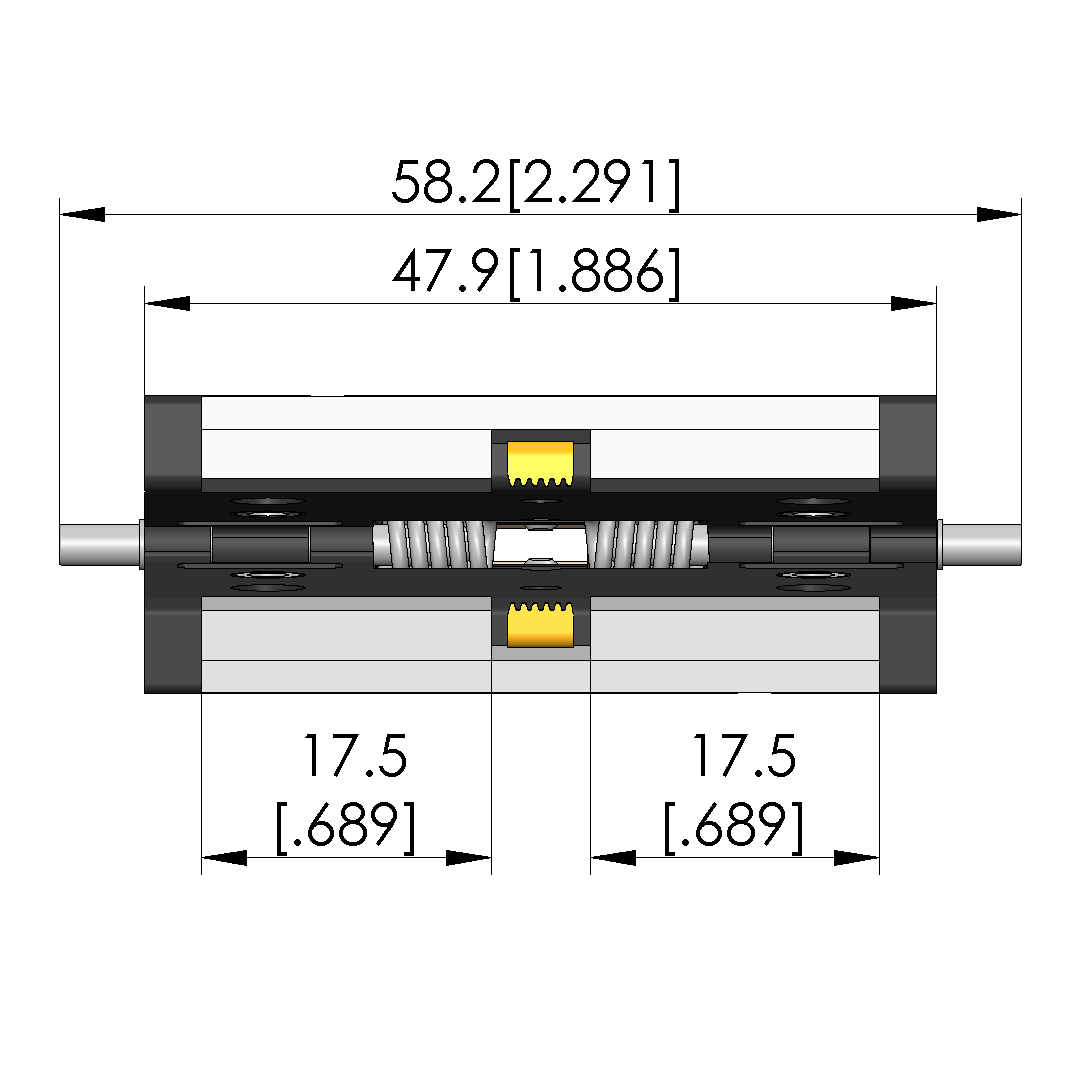

- Total length: 63 mm [2.48 in]
