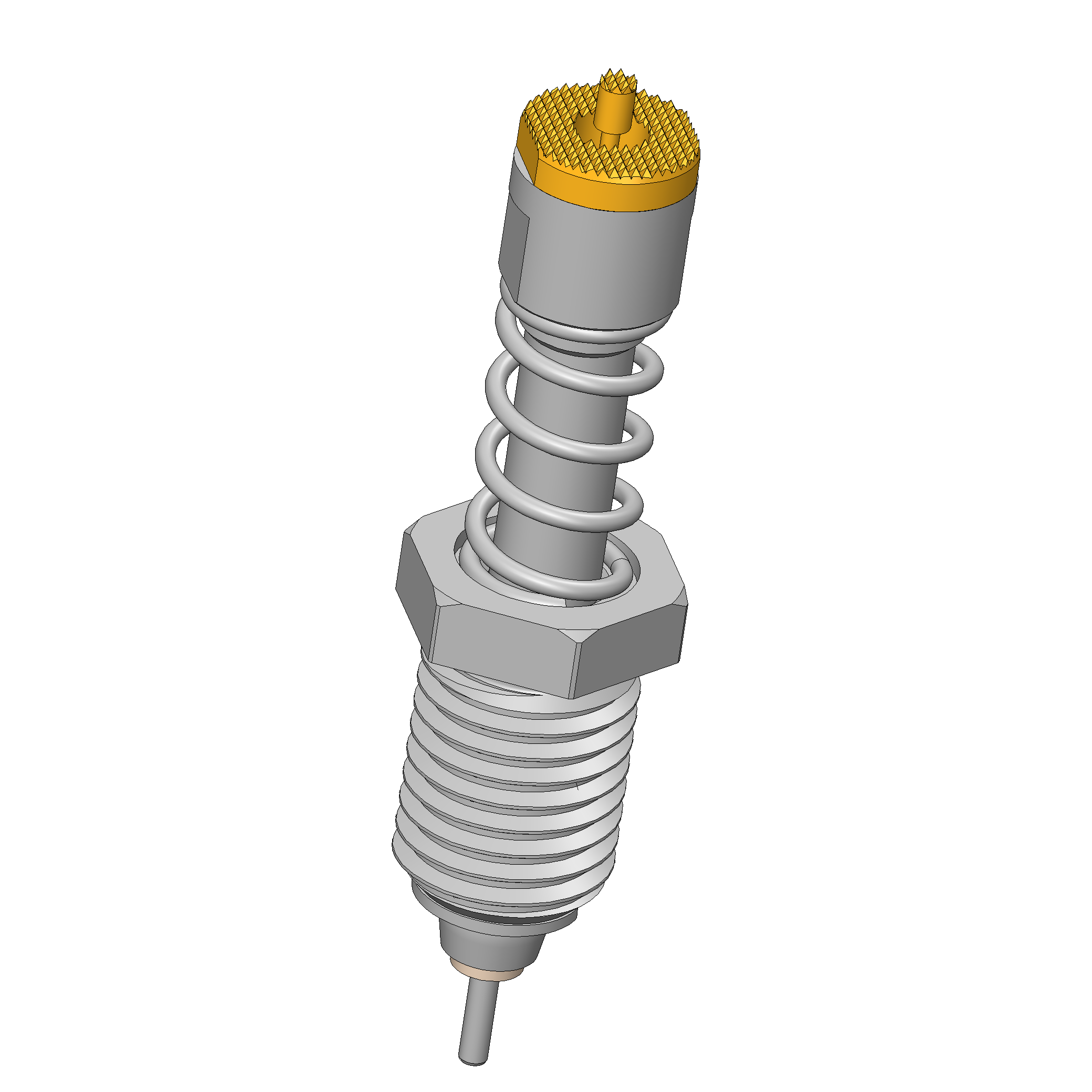

Product information "BCP-653 360 1000 A 28004 M-53"
- Contact solution for 4680 cylindrical cells and prismatic cells
- Suitable for currents up to 50 A at ΔT ≤ 20 K on aluminium
- Low-impedance probe with typical total resistance < 3 mOhm
- Designed for a wide range of applications, especially for formation and other end-of-life (EOL) tests
- Fixed cable connection
- Easy installation via threaded connection, secure hold in busbar
- Dipole design for precise voltage measurement
- Easy connection of the voltage sensor: both soldering and cable lug installation possible
| Adjustable installation height: | No |
|---|---|

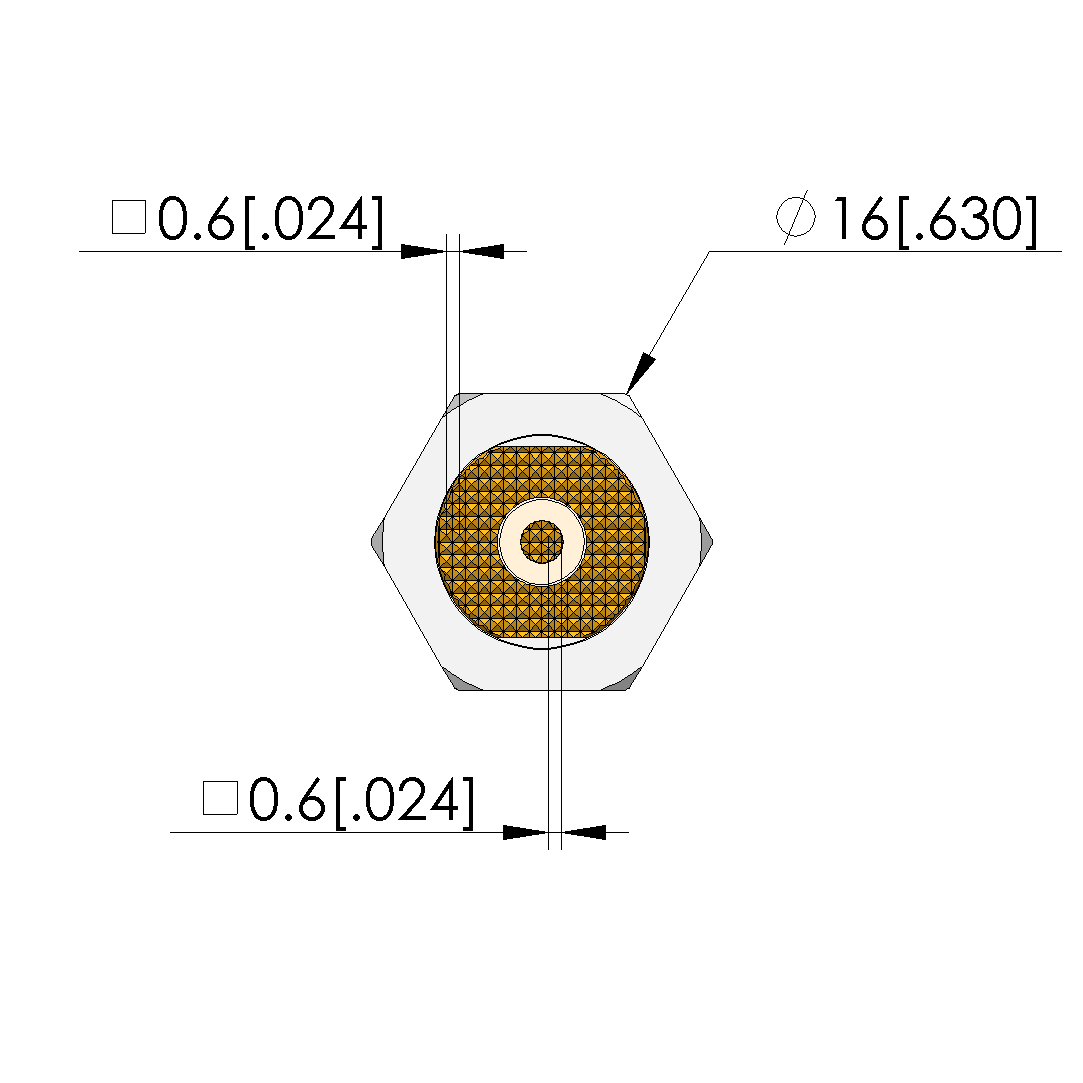

| Barrel diameter: | 12 mm [.472 in] |
| Collar height: | 04 |
| Contacting from: | Bead, Post, Pin |
| Current load capacity / rated current: | 50 A |
| Grid: | 24 mm [944 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 7 mm [.275 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Battery Contacting, Dipole BCP / 4-wire clamp |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Screw-in torque max.: | 1,500 cNm [132 lbf·in] |
| Screw-in torque min.: | 1,000 cNm [88.5 lbf·in] |
| Series: | BCP-653, BCP-653 M screw-in |
| Spring force at working stroke: | 28 N [100 ozf] |
| Spring pre-load: | 13.3 N [47.9 ozf] |
| Sub-product group: | Dipole BCP / 4-wire clamp |

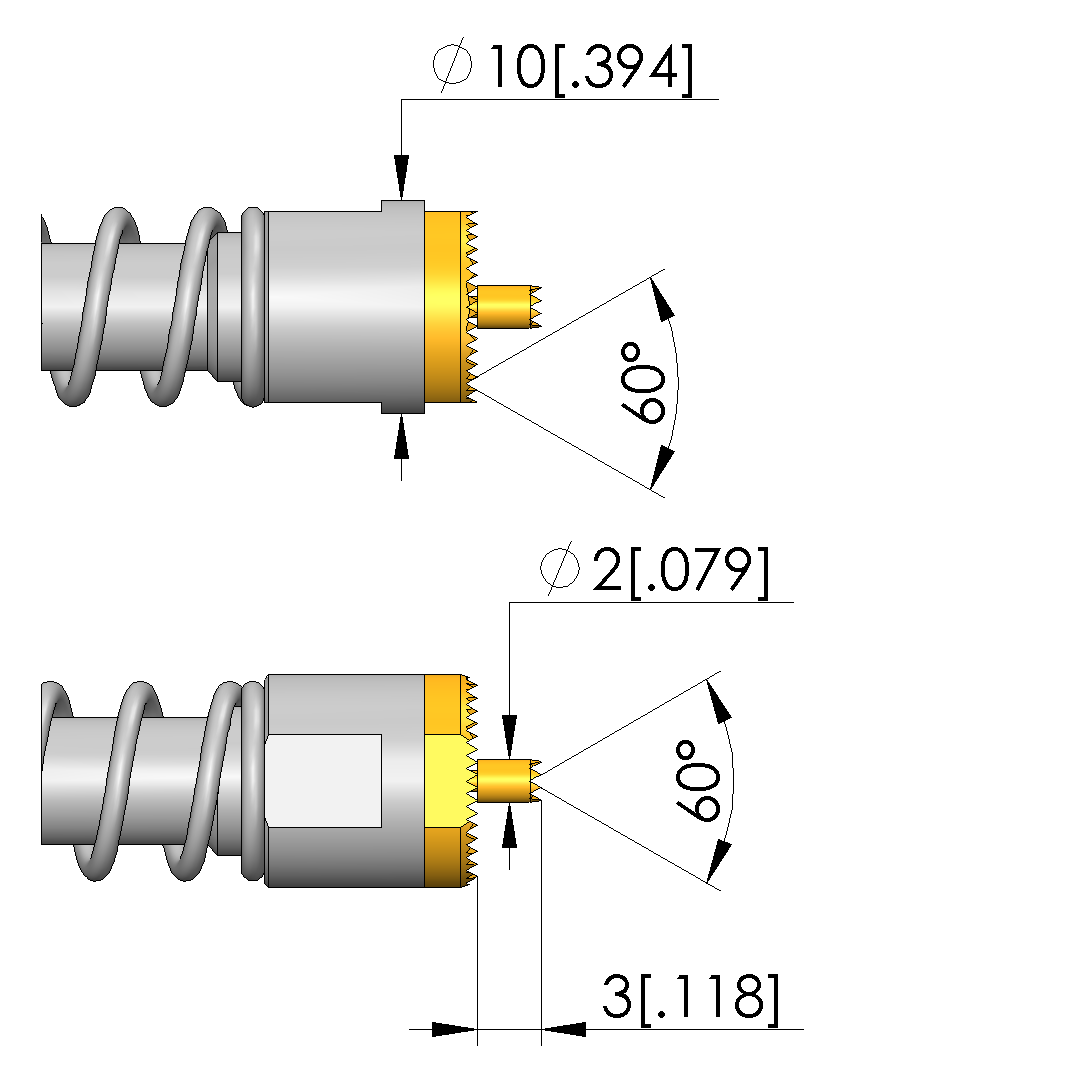

| Tip diameter: | 10 mm [.393 in] |

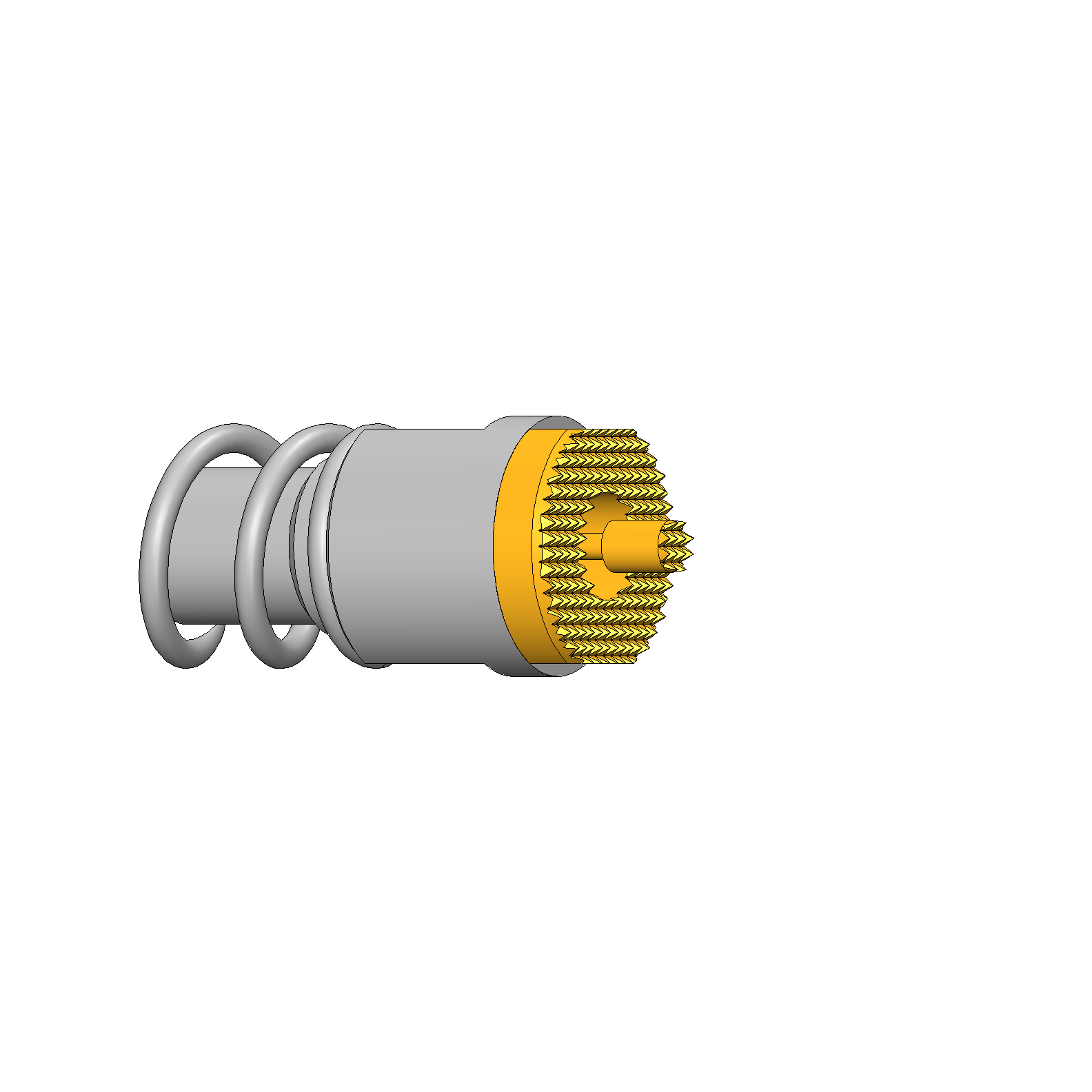

| Tip style: | 60 serrated, small grid |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |

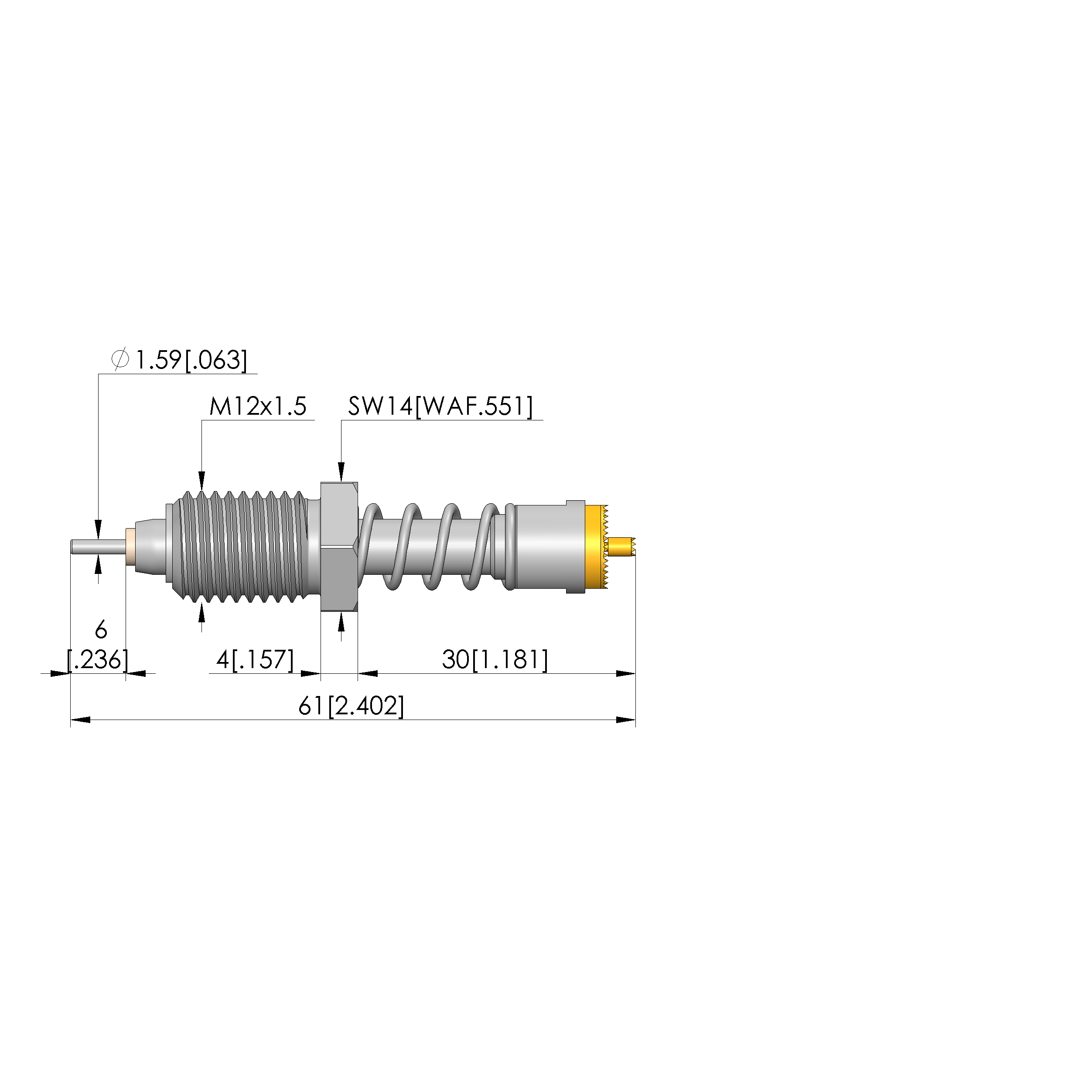

| Total length: | 61 mm [2.4 in] |
| Type of test probe connection: | Thread connection |
| Typical resistance (Ri): | 3 mOhm |
| Working stroke: | 4.4 mm [.173 in] |
Login
Produkt Details
- Contact solution for 4680 cylindrical cells and prismatic cells
- Suitable for currents up to 50 A at ΔT ≤ 20 K on aluminium
- Low-impedance probe with typical total resistance < 3 mOhm
- Designed for a wide range of applications, especially for formation and other end-of-life (EOL) tests
- Fixed cable connection
- Easy installation via threaded connection, secure hold in busbar
- Dipole design for precise voltage measurement
- Easy connection of the voltage sensor: both soldering and cable lug installation possible
Direktauswahl:
Technische Daten
Electrical data
- Current load capacity / rated current: 50 A
- Typical resistance (Ri): 3 mOhm
Mechanical data
- Working stroke: 4.4 mm [.173 in]
- Maximum stroke: 7 mm [.275 in]
- Spring pre-load: 13.3 N [47.9 ozf]
- Barrel diameter: 12 mm [.472 in]
- Spring force at working stroke: 28 N [100 ozf]
- Collar height: 04
- Total length: 61 mm [2.4 in]
General data
- Contacting from: Bead
- Contacting from: Pin
- Type of test probe connection: Thread connection
- Non-rotating: No
- Adjustable installation height: No
- Product group: Battery Contacting
- Min. temperature: -40 °C [-40 °F]
- Screw-in torque min.: 1,000 cNm [88.5 lbf·in]
- Series: BCP-653 M screw-in
- RoHS-compliant: Yes
- Max. temperature: 80 °C [176 °F]
- Grid: 24 mm [944 mil]
- Installation type: Screw-in
- Screw-in torque max.: 1,500 cNm [132 lbf·in]
- Contacting from: Post
- Magnetic: Yes
- Series: BCP-653
- Sub-product group: Dipole BCP / 4-wire clamp
- Product group: Dipole BCP / 4-wire clamp
- Quick-exchange system: No
Tip style data
- Tip diameter: 10 mm [.393 in]
- Tip style material: 3 CuBe
- Tip style: 60 serrated, small grid
- Tip style surface: A gold
