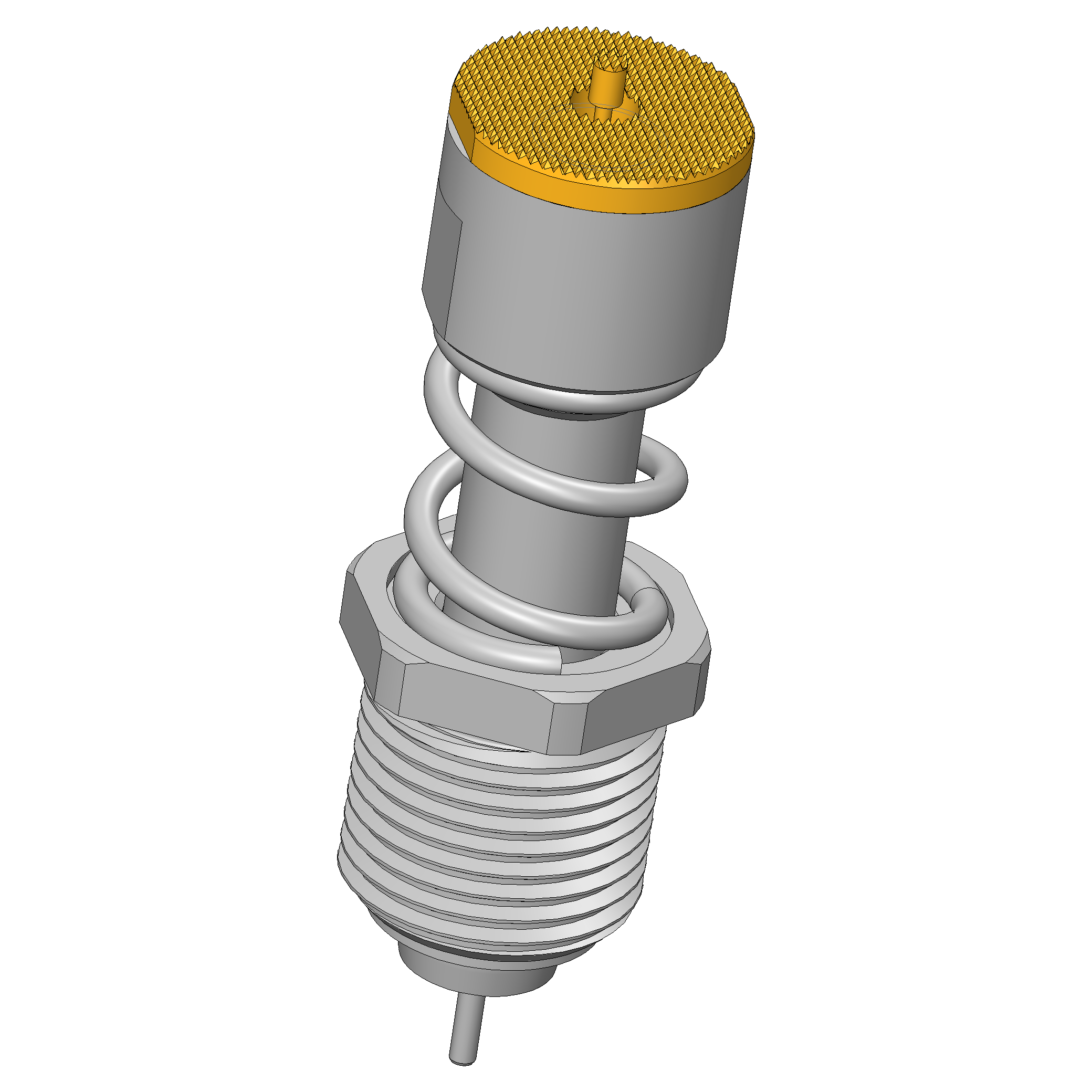

Product information "BCP-655 360 1800 A 100004M-53"
- Contact solution for 4680 cylindrical cells and prismatic cells
- Suitable for currents up to 125 A at ΔT ≤ 20 K on aluminium
- Low-impedance probe with typical total resistance < 0.5 mOhm
- Designed for a wide range of applications, especially for formation and other end-of-life (EOL) tests
- Fixed cable connection
- Easy installation via threaded connection, secure hold in busbar
- Dipole design for precise voltage measurement
- Easy connection of the voltage sensor: both soldering and cable lug installation possible
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 18 mm [.708 in] |
| Collar height: | 04 |
| Contacting from: | Bead, Post, Pin |
| Current load capacity / rated current: | 125 A |
| Grid: | 30 mm [1,181 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 7 mm [.275 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Battery Contacting, Dipole BCP / 4-wire clamp |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Screw-in torque max.: | 2,000 cNm [177 lbf·in] |
| Screw-in torque min.: | 1,500 cNm [132 lbf·in] |
| Series: | BCP-655, BCP-655 M screw-in |

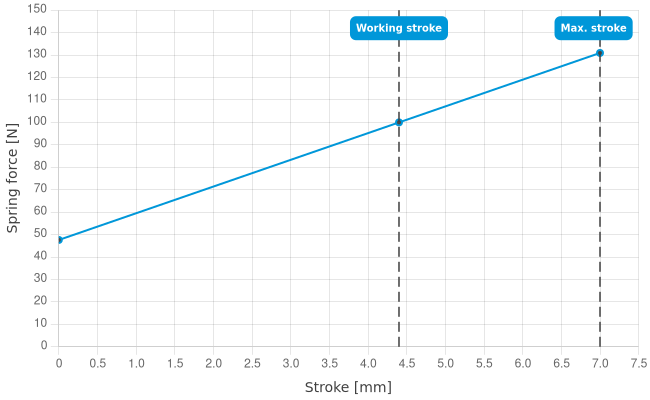

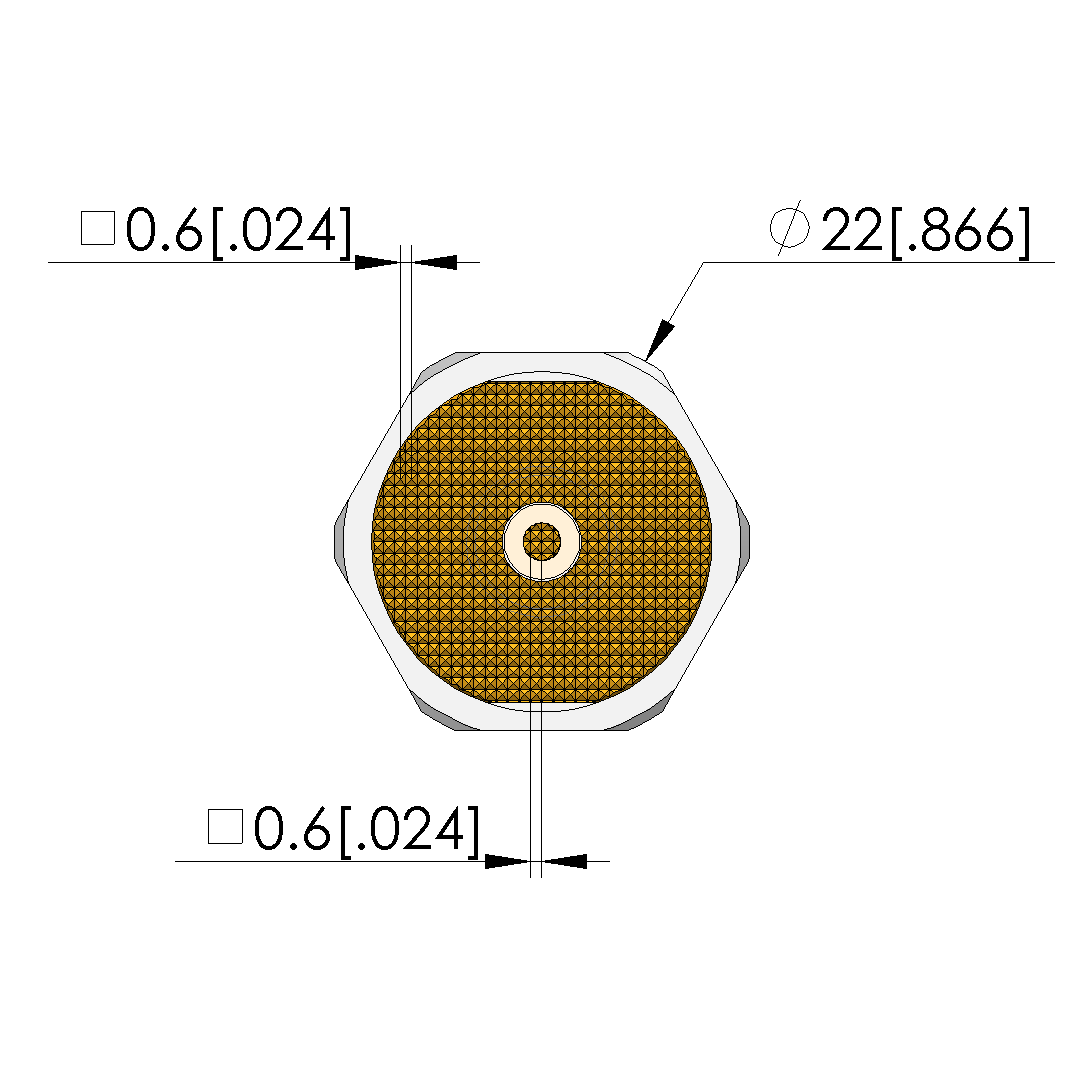

| Spring force at working stroke: | 100 N [359 ozf] |
| Spring pre-load: | 47.6 N [171 ozf] |
| Sub-product group: | Dipole BCP / 4-wire clamp |
| Tip diameter: | 18 mm [.708 in] |

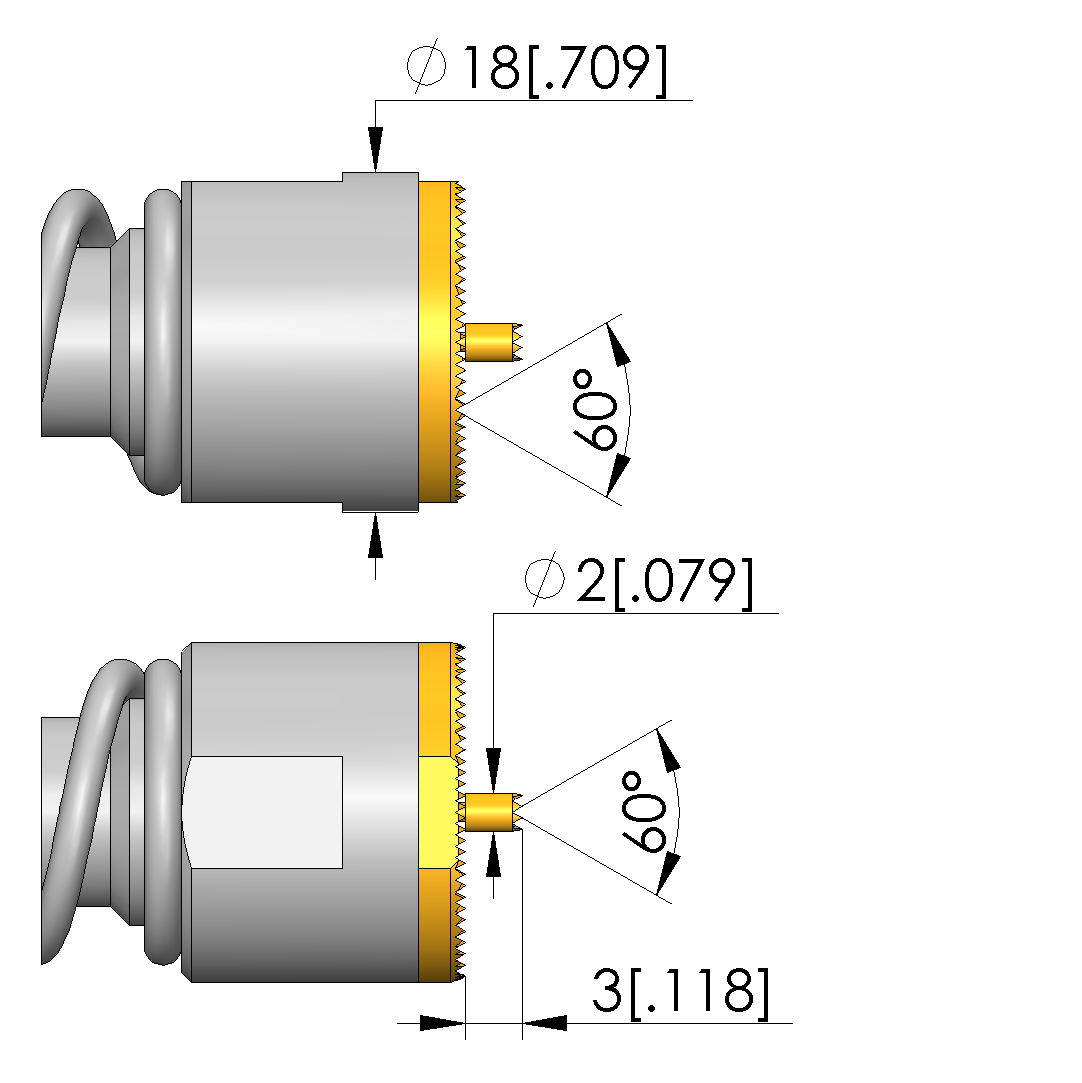

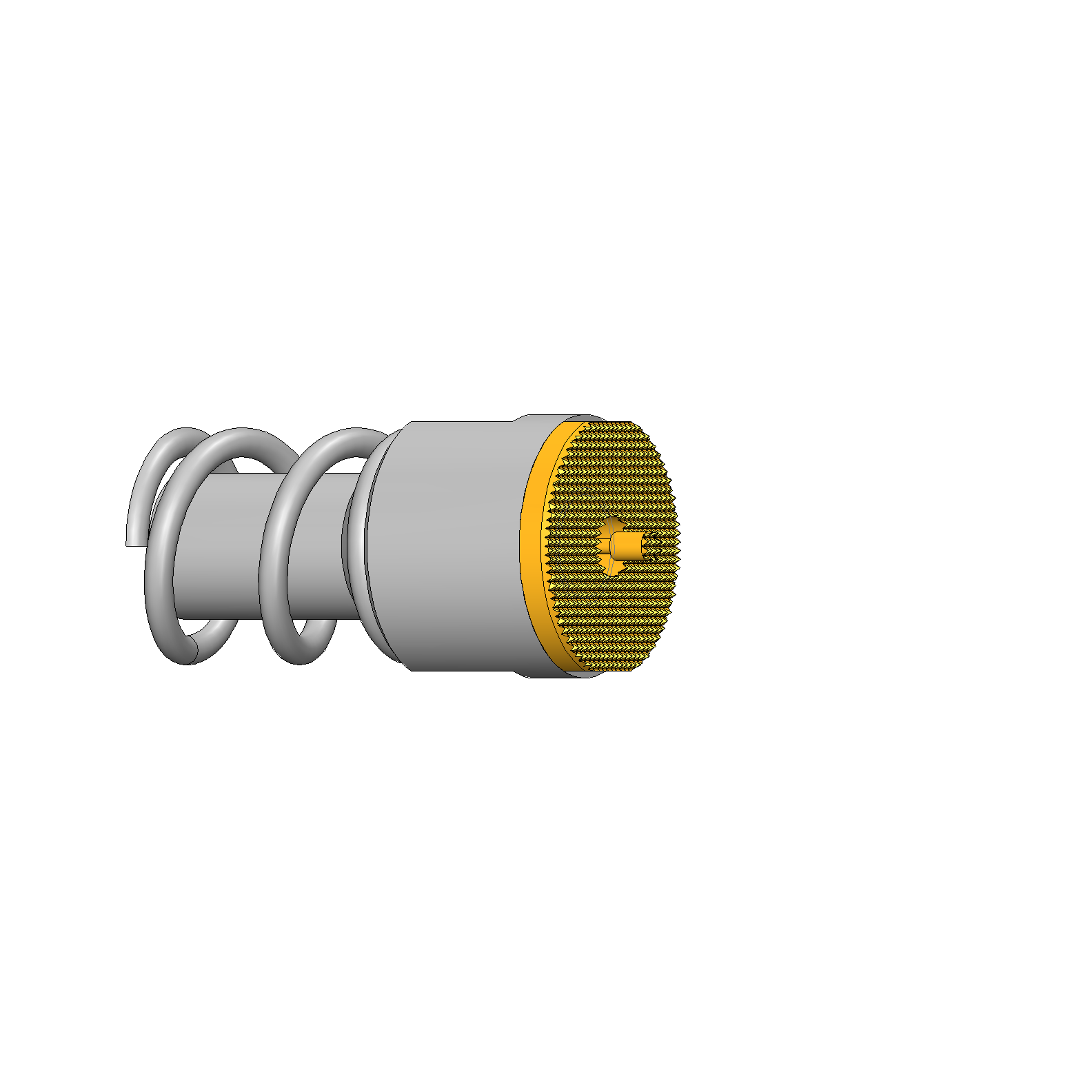

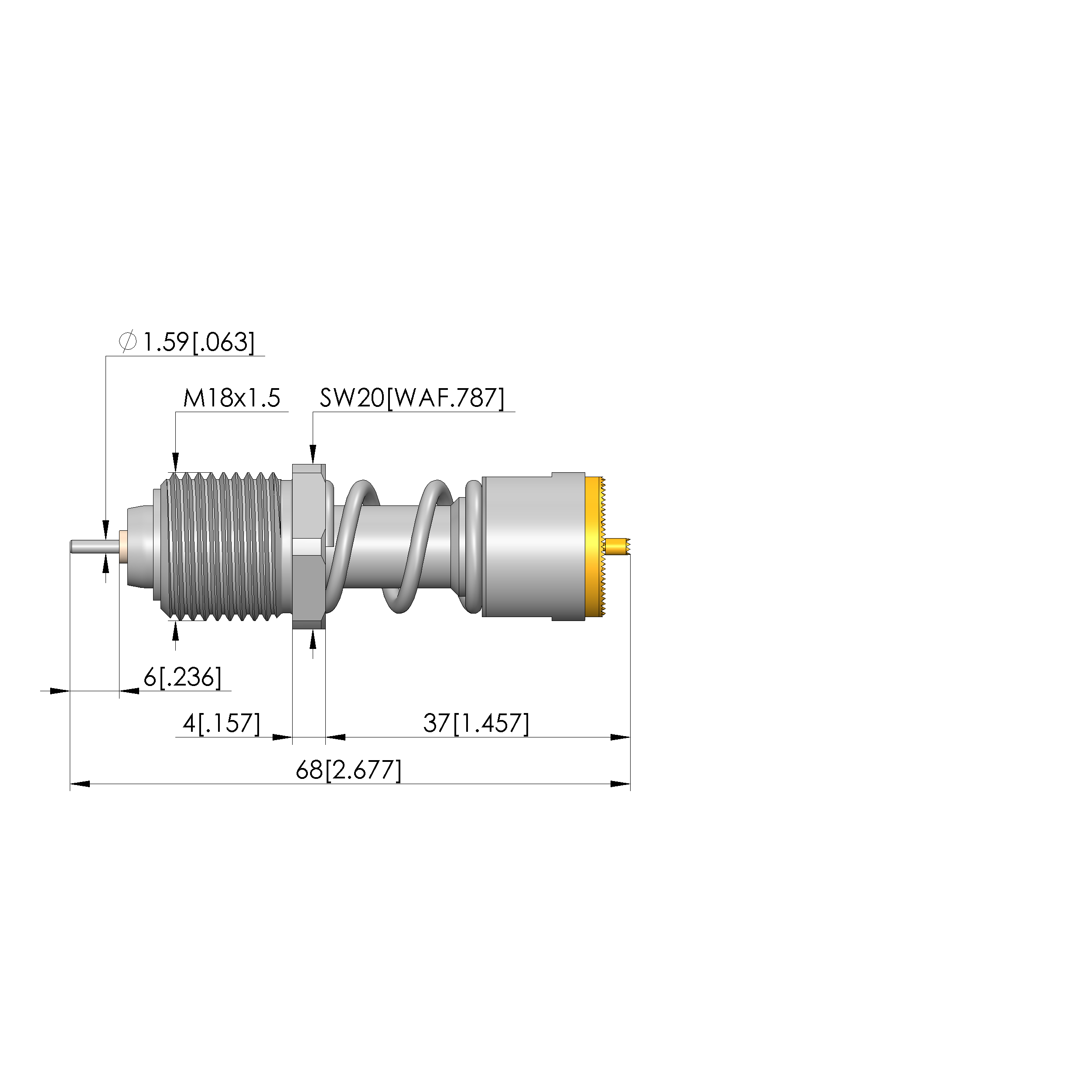

| Tip style: | 60 serrated, small grid |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 68 mm [2.67 in] |
| Type of test probe connection: | Thread connection |
| Typical resistance (Ri): | 1 mOhm |
| Working stroke: | 4.4 mm [.173 in] |
