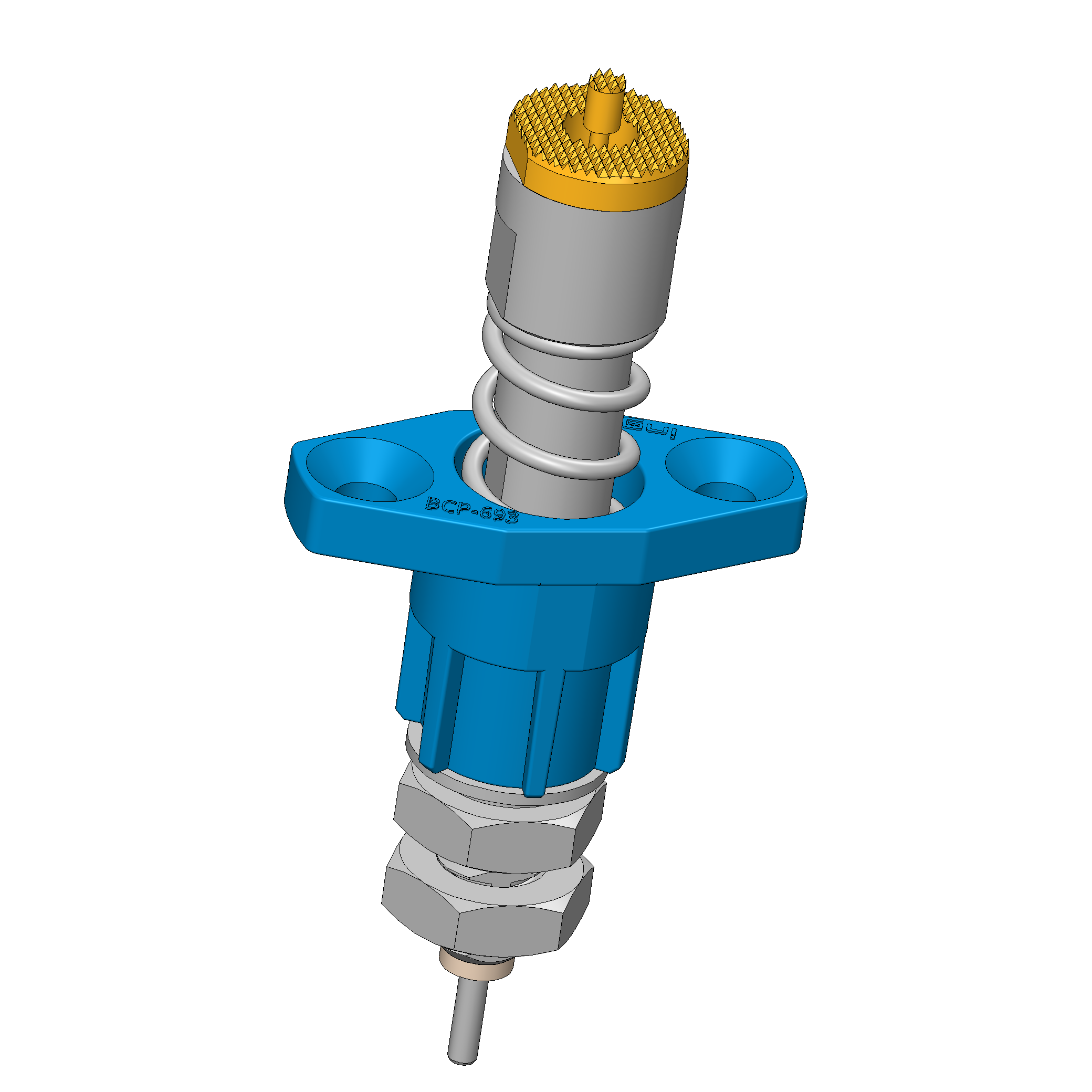

Product information "BCP-693 360 1000 A 28004-53"
- Contact solution for 4680 cylindrical cells and prismatic cells

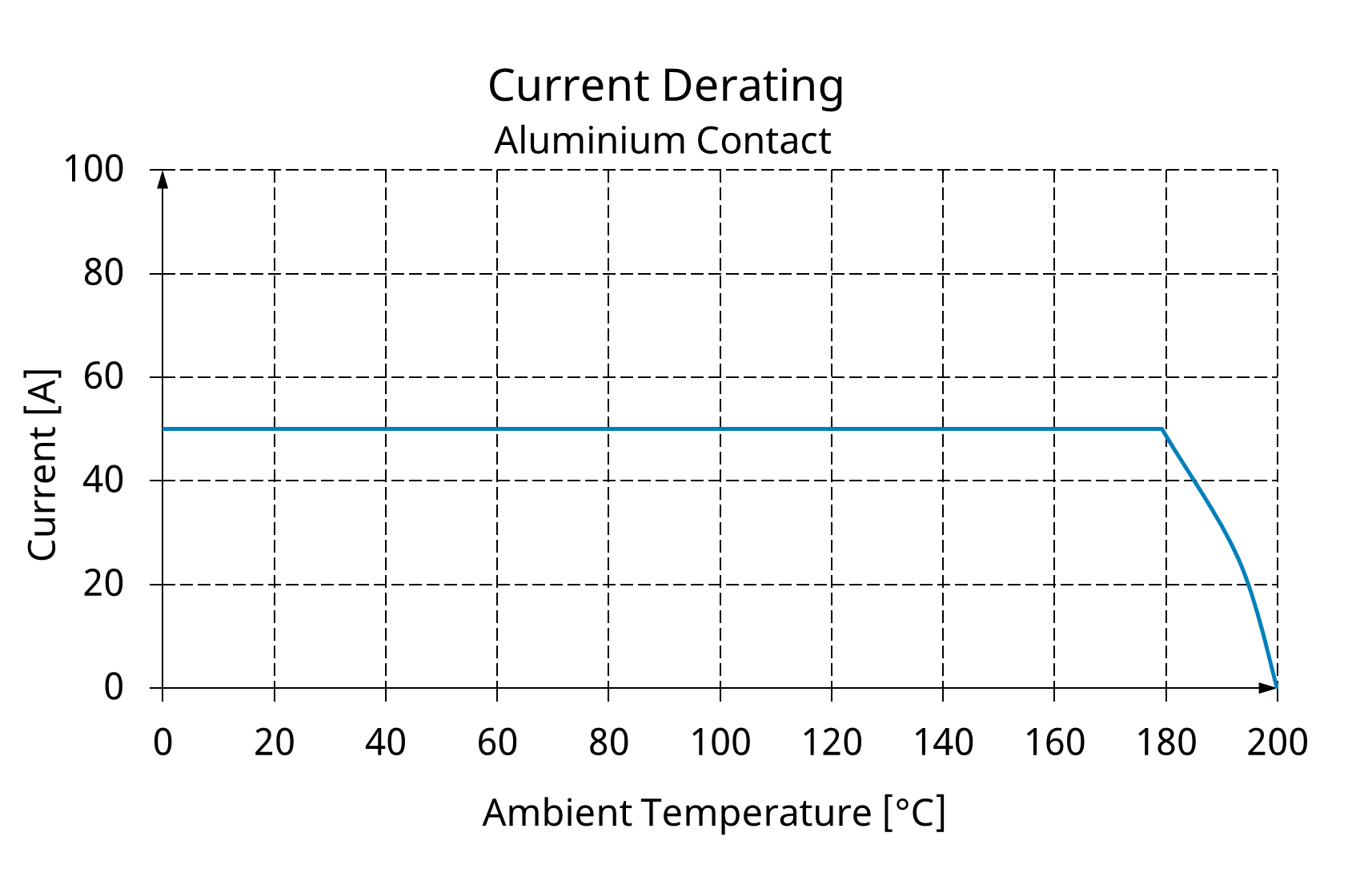

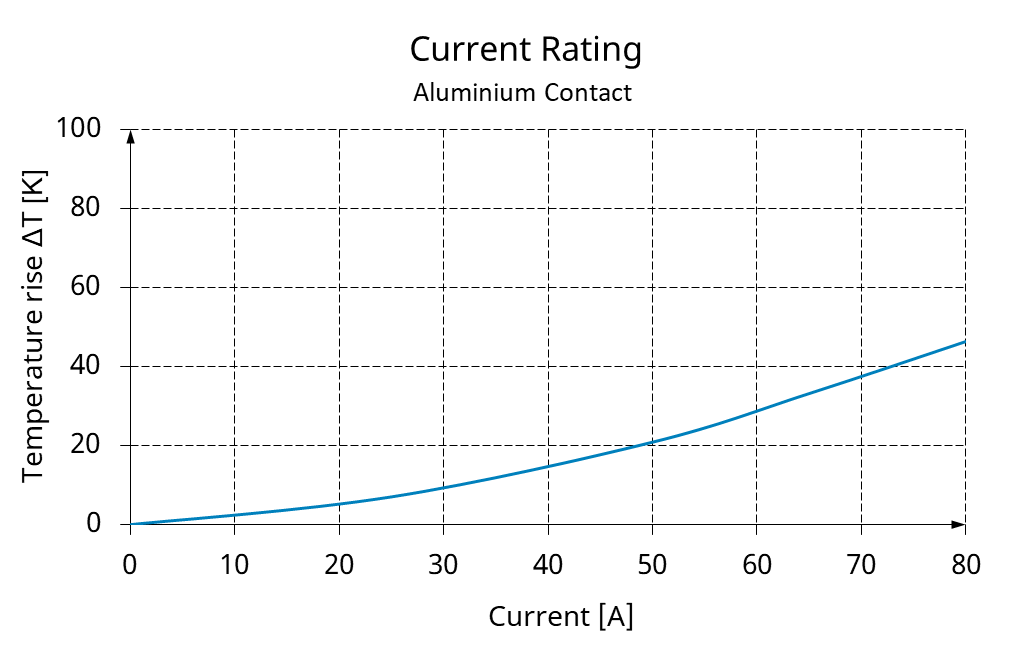

- Suitable for currents up to 50 A at ΔT ≤ 20 K on aluminium
- Low-impedance probe with typical total resistance < 3 mOhm
- Continuous plunger system with minimal internal resistance.
- Designed for a wide range of applications, especially for formation and other end-of-life (EOL) tests
- Simple flange mounting with flexible cable connection
- Dipole design for precise voltage measurement
- Easy connection of the voltage sensor: both soldering and cable lug installation possible

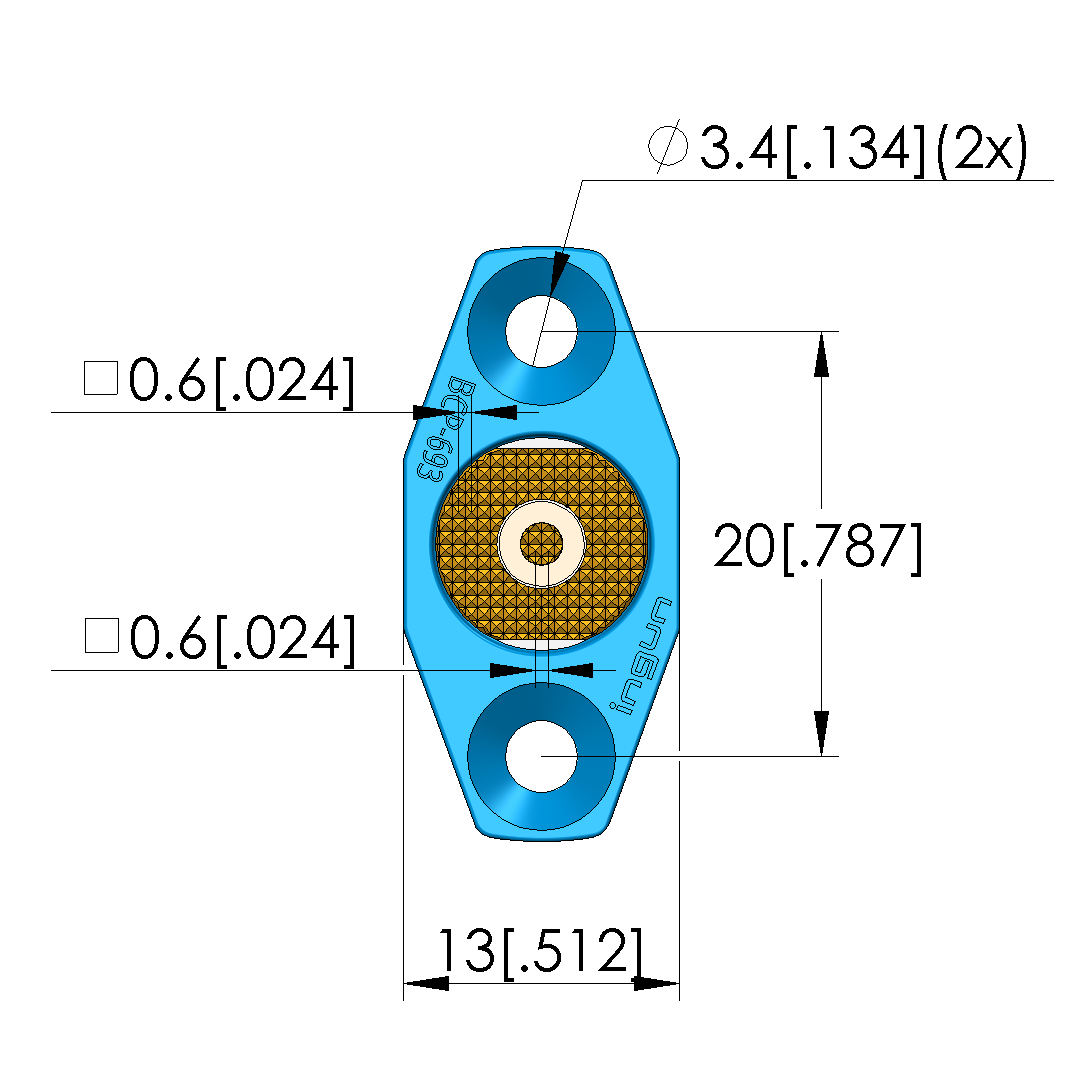

| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 13 mm [.511 in] |
| Collar height: | 04 |
| Contacting from: | Bead, Post, Pin |
| Continuous plunger: | M 6 x 10,6 |
| Current load capacity / rated current: | 50 A |
| Grid: | 14 mm [551 mil] |
| Installation type: | Flange |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 7 mm [.275 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | Yes |
| Product group: | Battery Contacting, Dipole BCP / 4-wire clamp |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | BCP-693 |
| Spring force at working stroke: | 28 N [100 ozf] |
| Spring pre-load: | 13.3 N [47.9 ozf] |
| Sub-product group: | Dipole BCP / 4-wire clamp |
| Tip diameter: | 10 mm [.393 in] |

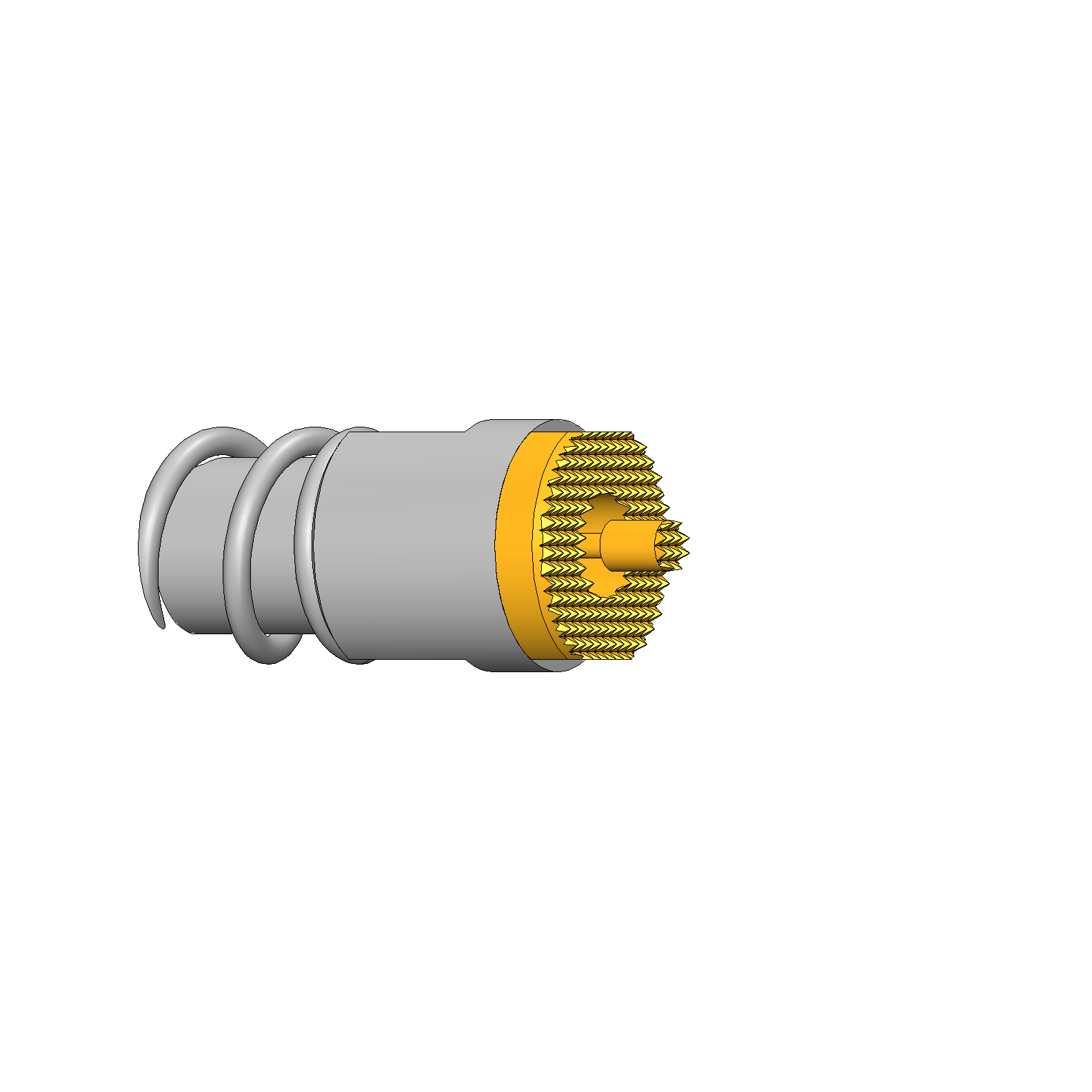

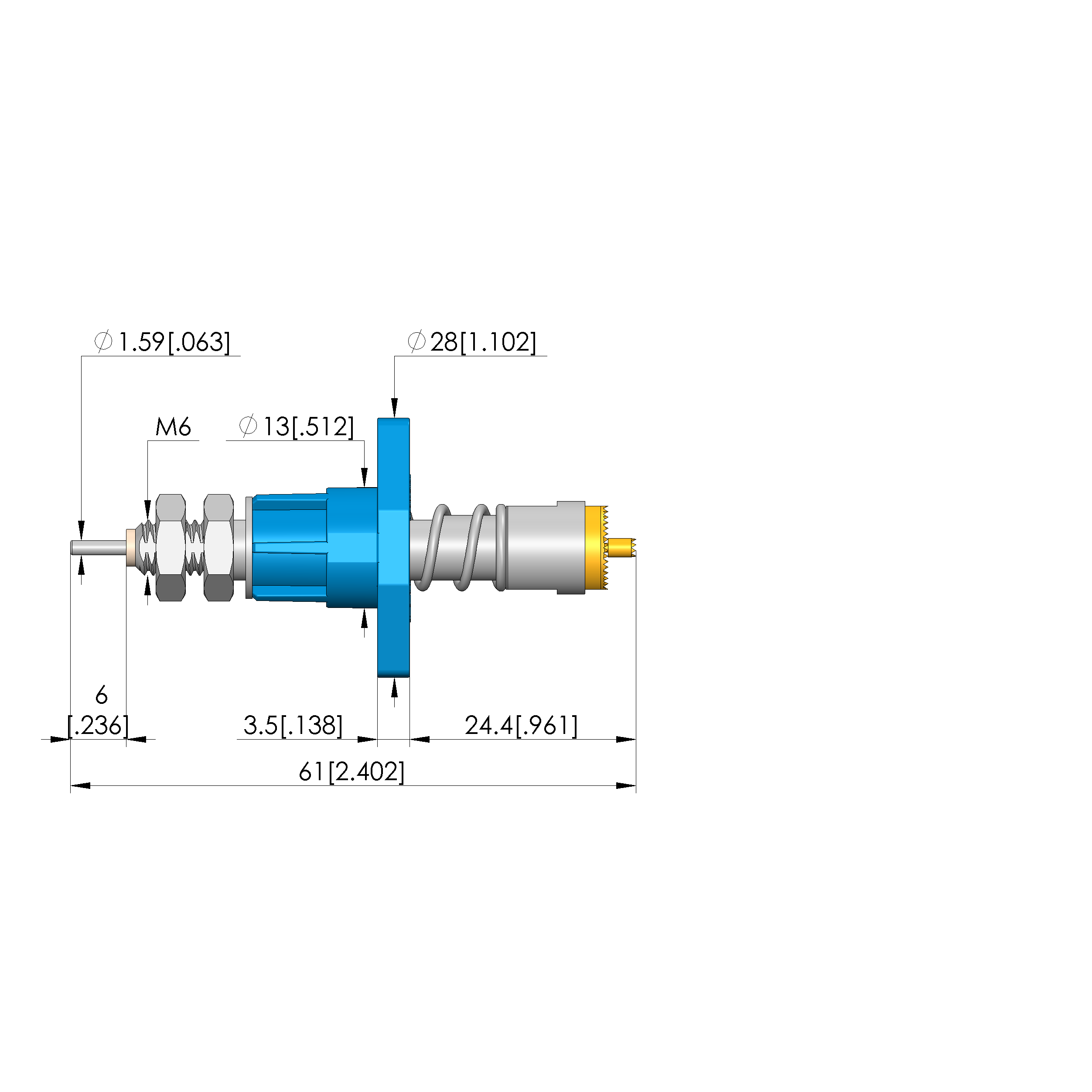

| Tip style: | 60 serrated, small grid |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 61 mm [2.4 in] |
| Type of test probe connection: | Thread connection |
| Typical resistance (Ri): | .5 mOhm |
| Working stroke: | 4.4 mm [.173 in] |
Login
Produkt Details
- Contact solution for 4680 cylindrical cells and prismatic cells
- Suitable for currents up to 50 A at ΔT ≤ 20 K on aluminium
- Low-impedance probe with typical total resistance < 3 mOhm
- Continuous plunger system with minimal internal resistance.
- Designed for a wide range of applications, especially for formation and other end-of-life (EOL) tests
- Simple flange mounting with flexible cable connection
- Dipole design for precise voltage measurement
- Easy connection of the voltage sensor: both soldering and cable lug installation possible
Direktauswahl:
Technische Daten
General data
- Non-rotating: Yes
- Contacting from: Bead
- Contacting from: Pin
- Grid: 14 mm [551 mil]
- Type of test probe connection: Thread connection
- Continuous plunger: M 6 x 10,6
- Adjustable installation height: No
- Product group: Battery Contacting
- Min. temperature: -40 °C [-40 °F]
- Installation type: Flange
- RoHS-compliant: Yes
- Max. temperature: 80 °C [176 °F]
- Series: BCP-693
- Contacting from: Post
- Magnetic: Yes
- Sub-product group: Dipole BCP / 4-wire clamp
- Product group: Dipole BCP / 4-wire clamp
- Quick-exchange system: No
Electrical data
- Current load capacity / rated current: 50 A
- Typical resistance (Ri): .5 mOhm
Mechanical data
- Working stroke: 4.4 mm [.173 in]
- Maximum stroke: 7 mm [.275 in]
- Spring pre-load: 13.3 N [47.9 ozf]
- Spring force at working stroke: 28 N [100 ozf]
- Collar height: 04
- Total length: 61 mm [2.4 in]
- Barrel diameter: 13 mm [.511 in]
Tip style data
- Tip diameter: 10 mm [.393 in]
- Tip style material: 3 CuBe

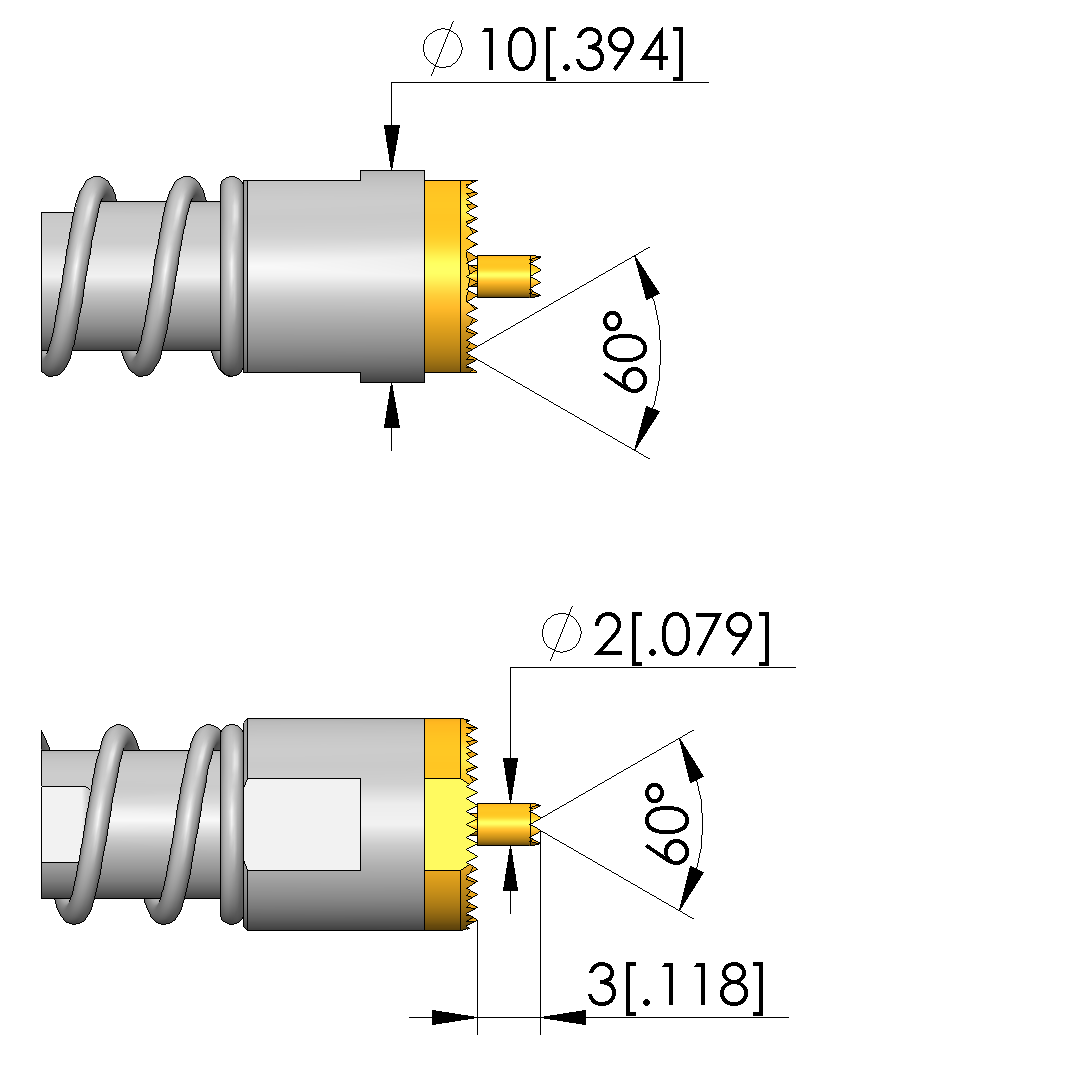

- Tip style: 60 serrated, small grid
