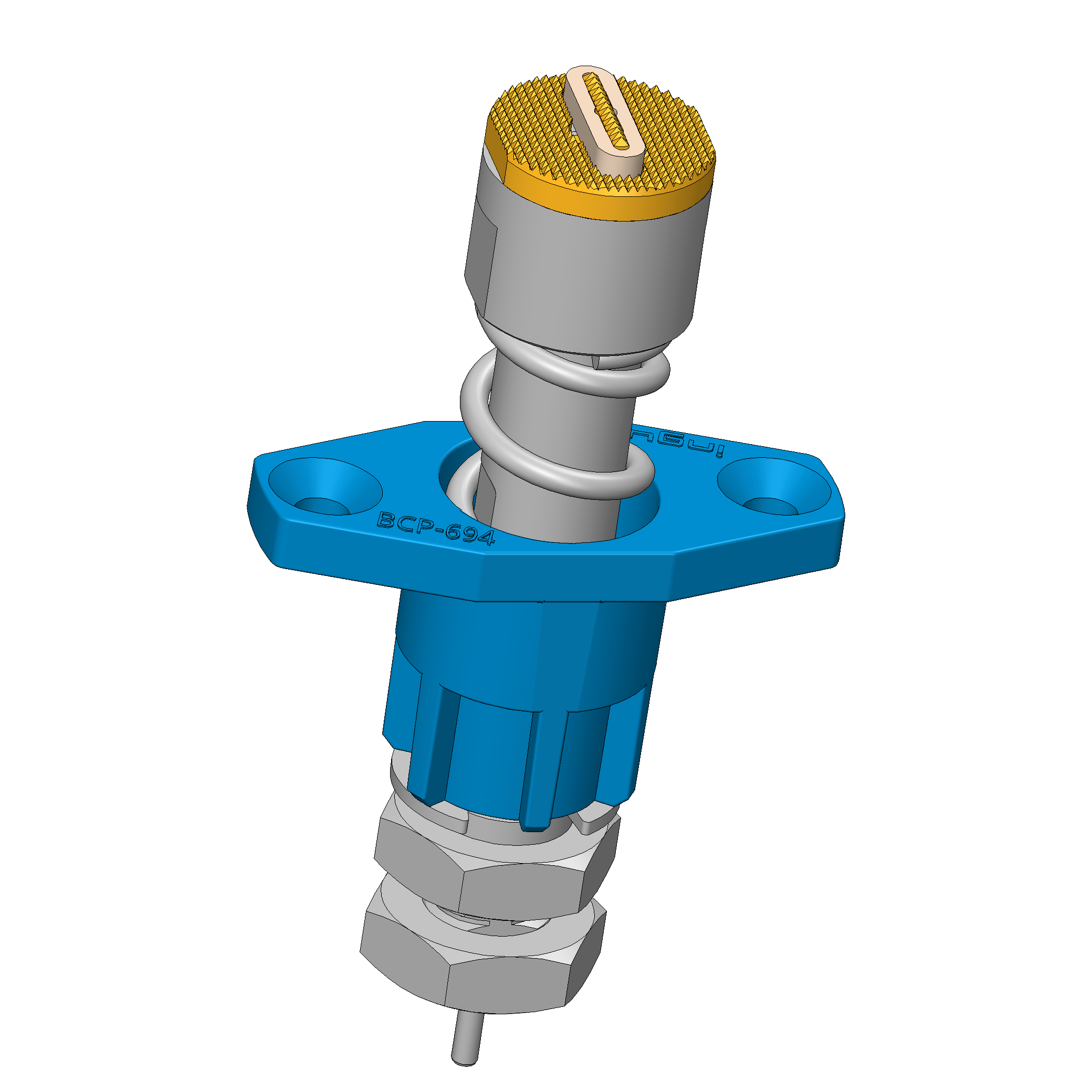

Product information "BCP-694 360 1400 A 60004-63"
- Contacting solution for cylindrical cells (46xx) and prismatic as well blade cells, Battery Modules and -Packs
- Current rating upto 100 A on Al DUT with temperaturer rise dT ≤ 20 K ; max. current rating of 220 A on high conducting materials like copper alloys
- Continuous plunger system with minimal resistance R typical < 2 mΩ
- State of the art - Flat-type Voltage-Sense Pin
- Continuous plunger system with minimal resistance R typical < 3 mΩ
- Designed for a wide range of applications, especially for formation and other end-of-life (EOL) tests
- Simple flange mounting with flexible cable connection
- Dipole design for precise voltage measurement
- Easy connection of the voltage sensor: both soldering and cable lug installation possible
| Adjustable installation height: | No |
|---|---|
| Application rec.: | DC-IR, Fast Charging/High Current, Formation |
| Barrel diameter: | 16 mm [.629 in] |
| Collar height: | 04 |
| Continuous plunger: | M 8 x 10,5 |
| Current load capacity / rated current: | 260 A |
| DUT / contact: | Cylindrical cells, Prismatic cells |
| Grid: | 17 mm [669 mil] |
| Installation type: | Flange |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 7 mm [.275 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | Yes |
| Product group: | Battery Contacting, Dipole BCP / 4-wire clamp |
| Quick-exchange system: | No |
| Rated current on aluminium @ΔT ≤ 20 K: | 100 A |
| Rated current on aluminium @ΔT ≤ 60 K: | 180 A |
| Rated current on copper @ΔT ≤ 20 K: | 160 A |
| Rated current on copper @ΔT ≤ 60 K: | 260 A |
| RoHS-compliant: | Yes |
| Series: | BCP-694 |
| Spring force at working stroke: | 60 N [215 ozf] |
| Spring pre-load: | 30.34 N [109 ozf] |
| Sub-product group: | Dipole BCP / 4-wire clamp |
| Tip diameter: | 14 mm [.551 in] |
| Tip style: | 60 serrated, small grid |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 66.6 mm [2.62 in] |
| Type of test probe connection: | Thread connection |
| Typical resistance (Ri): | .5 mOhm |
| Working stroke: | 4.4 mm [.173 in] |
Login
Product details
- Contacting solution for cylindrical cells (46xx) and prismatic as well blade cells, Battery Modules and -Packs
- Current rating upto 100 A on Al DUT with temperaturer rise dT ≤ 20 K ; max. current rating of 220 A on high conducting materials like copper alloys
- Continuous plunger system with minimal resistance R typical < 2 mΩ
- State of the art - Flat-type Voltage-Sense Pin
- Continuous plunger system with minimal resistance R typical < 3 mΩ
- Designed for a wide range of applications, especially for formation and other end-of-life (EOL) tests
- Simple flange mounting with flexible cable connection
- Dipole design for precise voltage measurement
- Easy connection of the voltage sensor: both soldering and cable lug installation possible
Other products in this series:
Technical data
General data
- Product group: Battery Contacting, Dipole BCP / 4-wire clamp
- Sub-product group: Dipole BCP / 4-wire clamp
- Series: BCP-694
- Application rec.: Fast Charging/High Current, DC-IR, Formation
- Grid: 17 mm [669 mil]
- DUT / contact: Prismatic cells, Cylindrical cells
- Magnetic: Yes
- Installation type: Flange
- Quick-exchange system: No
- Type of test probe connection: Thread connection
- Adjustable installation height: No
- Non-rotating: Yes
- Continuous plunger: M 8 x 10,5
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Electrical data
- Current load capacity / rated current: 260 A
- Rated current on copper @ΔT ≤ 20 K: 160 A
- Rated current on copper @ΔT ≤ 60 K: 260 A
- Rated current on aluminium @ΔT ≤ 20 K: 100 A
- Rated current on aluminium @ΔT ≤ 60 K: 180 A
- Typical resistance (Ri): .5 mOhm
Mechanical data

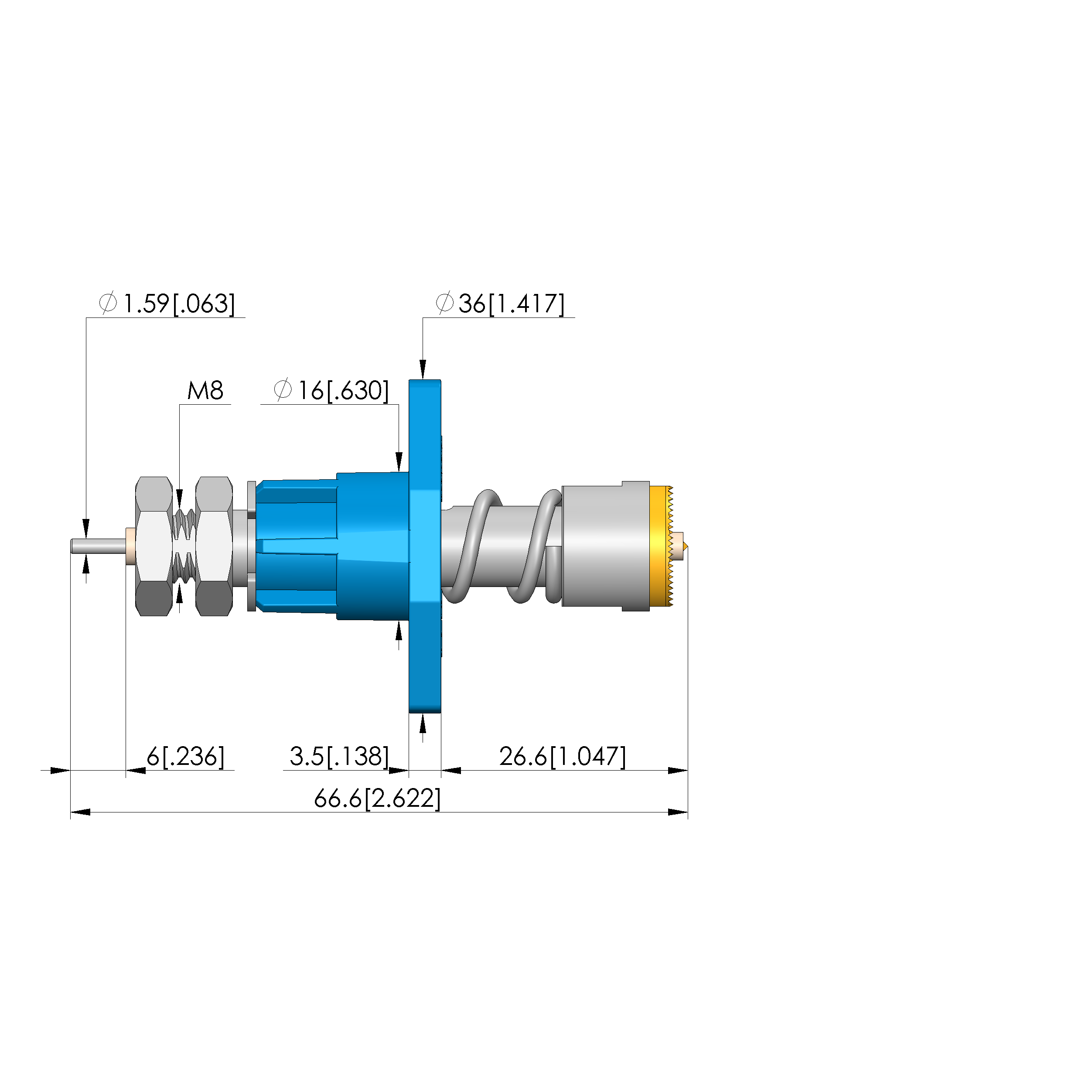

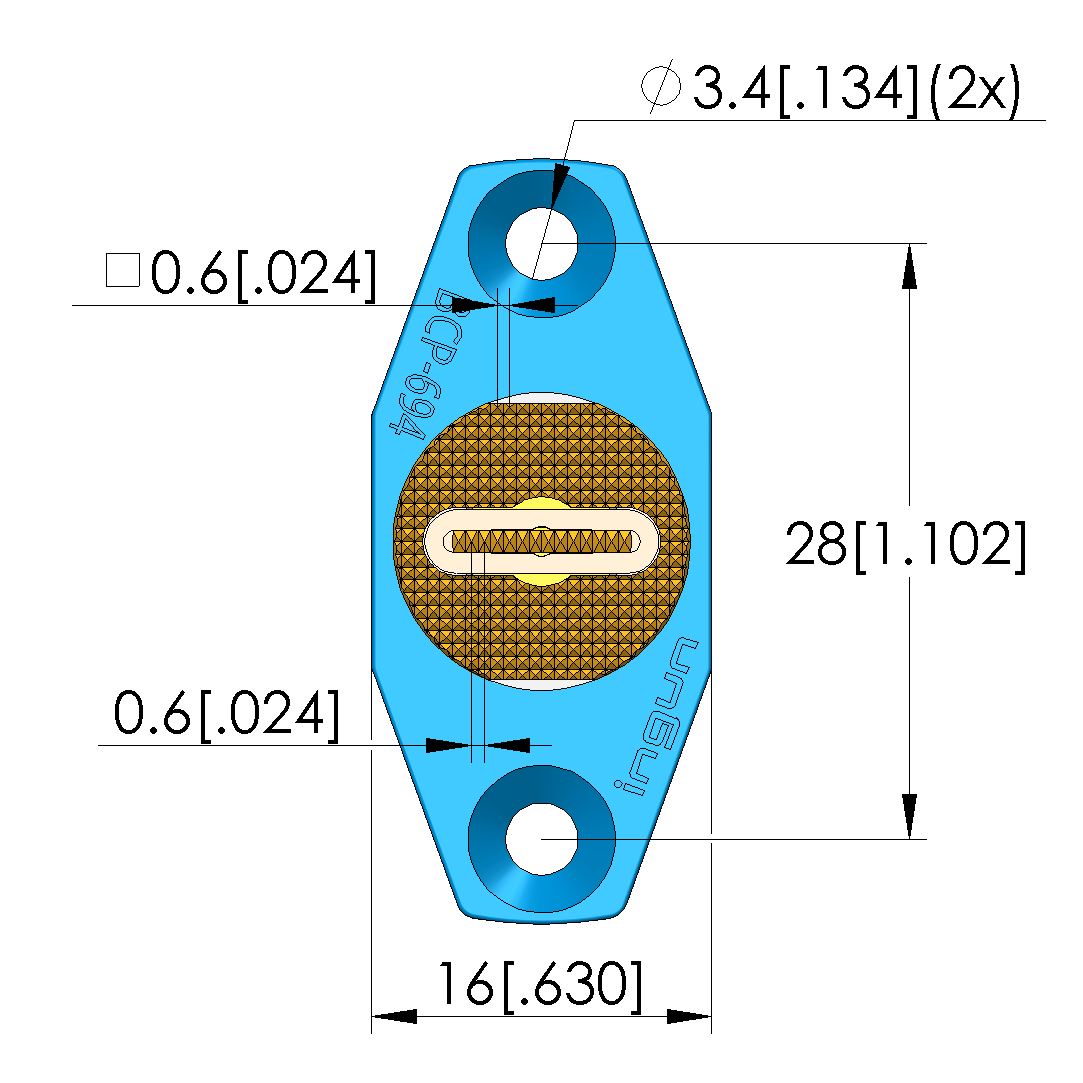

- Total length: 66.6 mm [2.62 in]
- Barrel diameter: 16 mm [.629 in]
- Maximum stroke: 7 mm [.275 in]
- Spring pre-load: 30.34 N [109 ozf]
- Collar height: 04
- Spring force at working stroke: 60 N [215 ozf]
- Working stroke: 4.4 mm [.173 in]

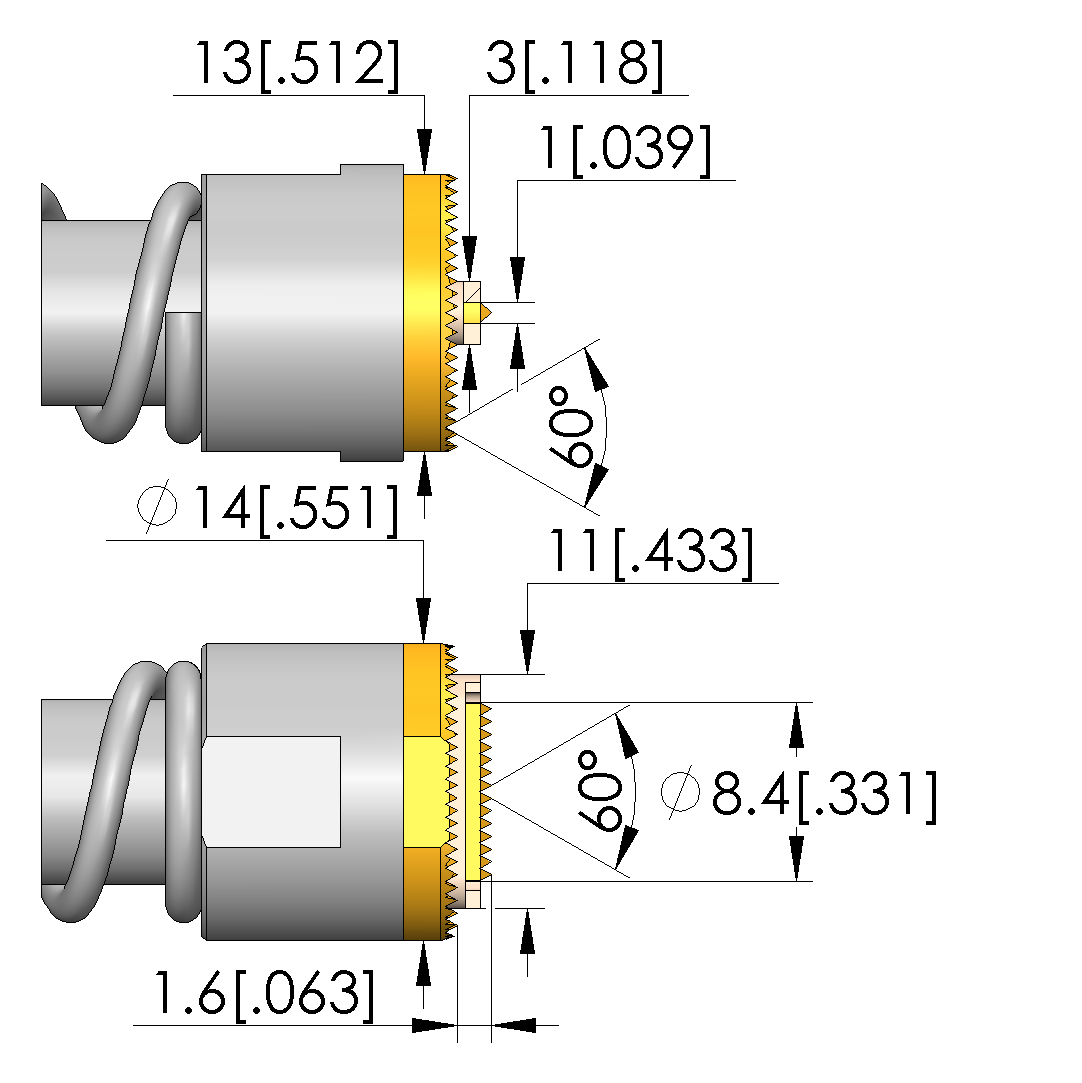

Tip style data

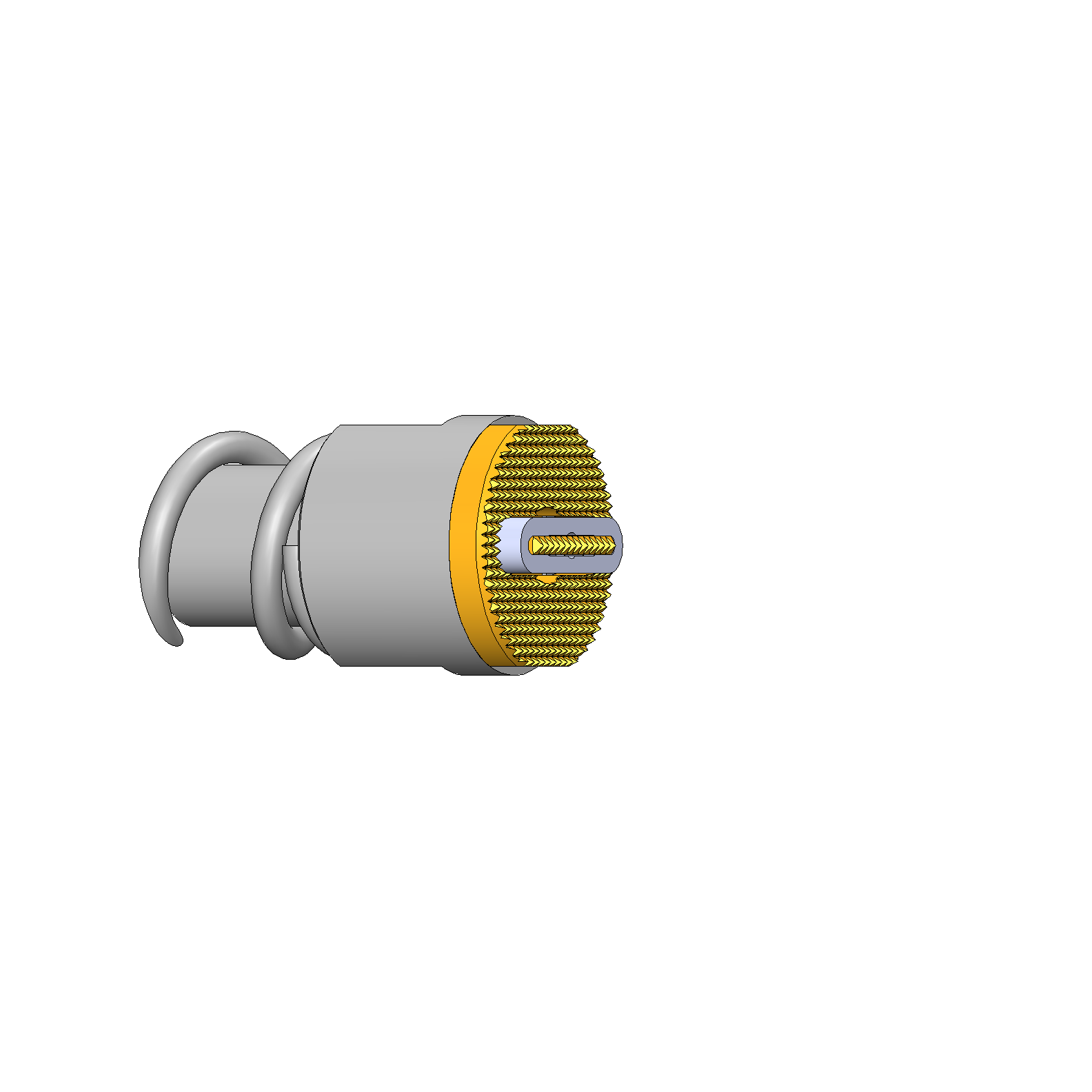

- Tip style: 60 serrated, small grid
- Tip diameter: 14 mm [.551 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
