Product information "FB-2VM-SO-MA2xxx"
- For 1-stage or 2-stage contacting with self-opening unit
- Mechanical limit of contating stage

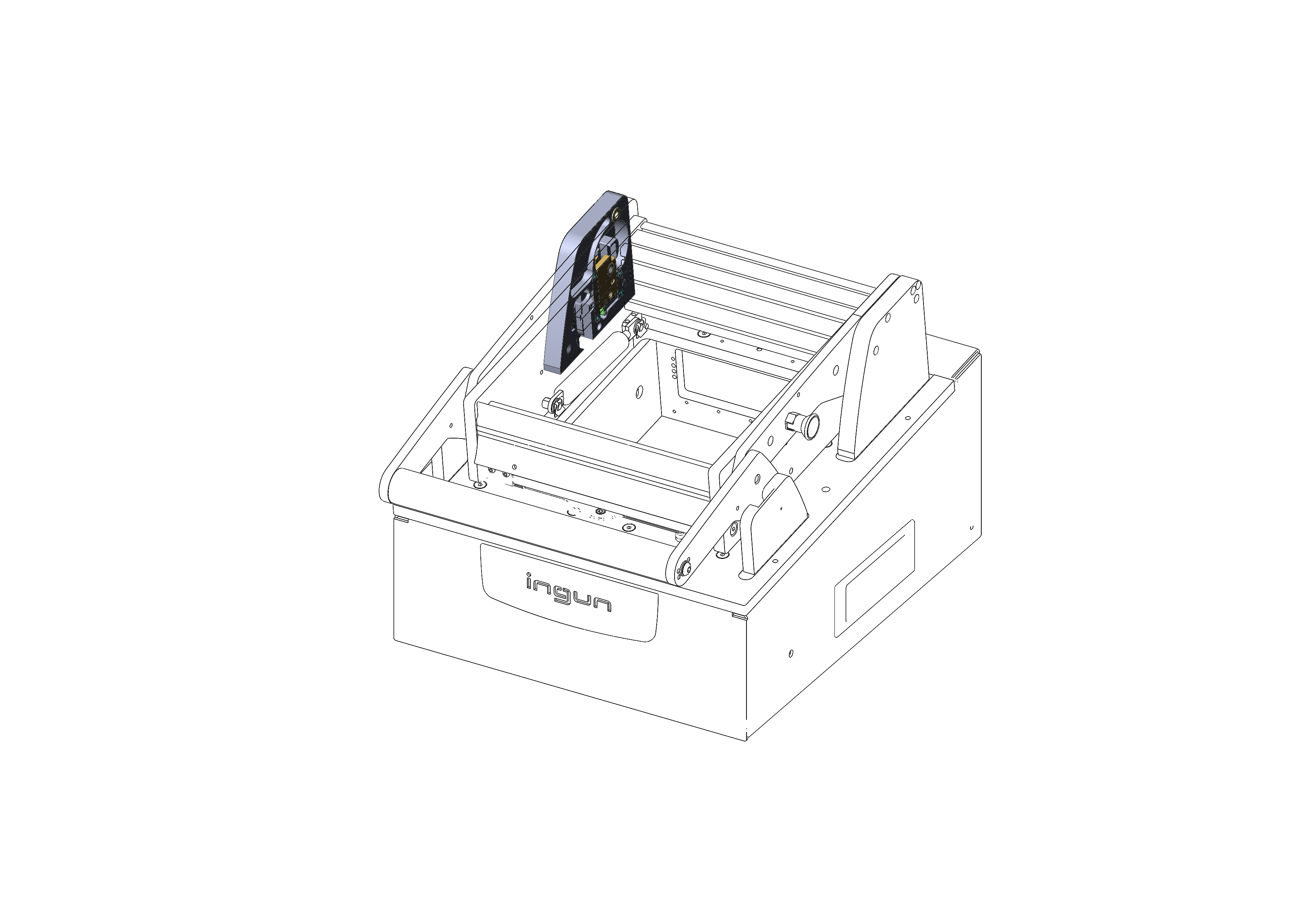

- Quick, easy installation by replacing the rear bearing block

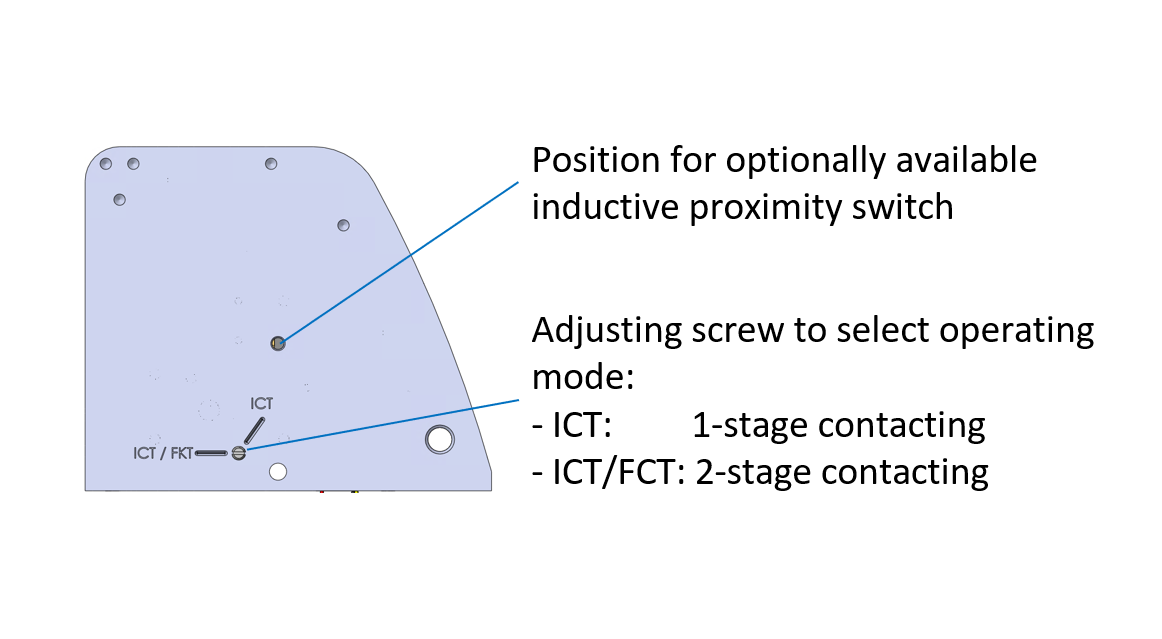

- Adjustable screw to select ICT or ICT/FCT operating mode.
- Optionally available proximity switch to detect FCT position
| Accessory type: | Additional function |
|---|---|
| Cable length: | 350 mm [13.7 in] |
| Connection: | Cable |
| For dual-stage contacting: | Yes |
| Height: | 101 mm [3.97 in] |
| Installation: | Thread M5 |
| Length: | 118 mm [4.64 in] |
| Manual test fixtures (MA): | MA 2xxx |
| Material: | 3.3547, hard-coated |
| Max. temperature: | 60 °C [140 °F] |
| Max. voltage: | 36 VDC |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 3 |
| Outer dimensionS (WxDxH): | 15 x 118 x 101 mm [.59 x 4.64 x 3.97 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Pre-assembled |
| Series: | FB-MAxxxx |
| Type: | Dual-stage limit |

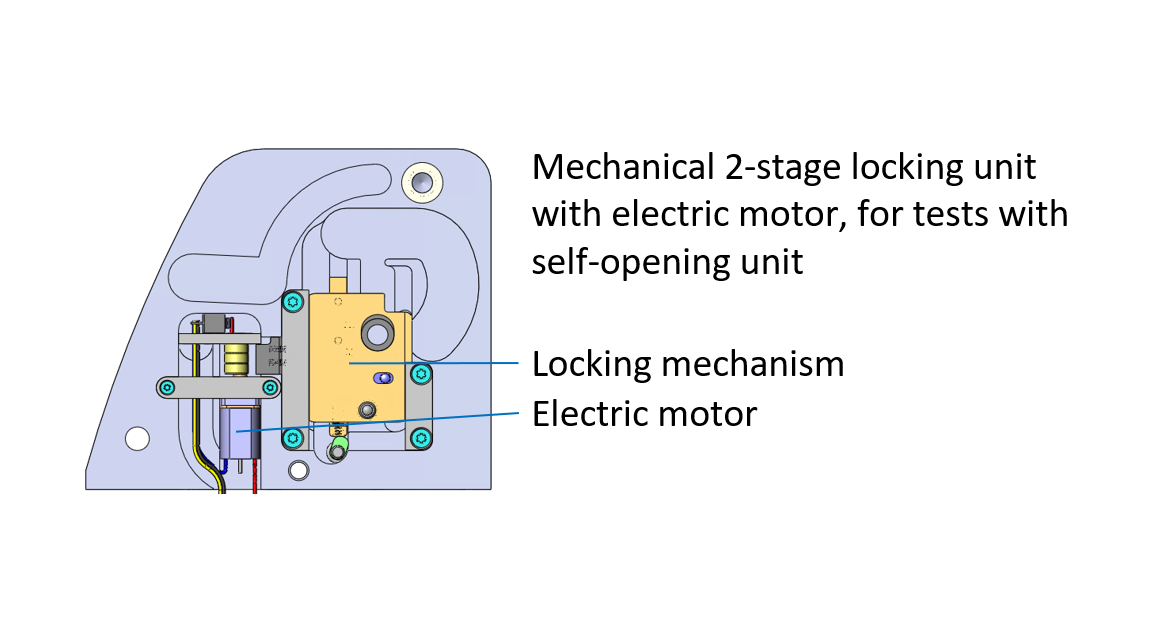

| Version: | Mechanical with electric motor |
| Weight: | 0.56 kg [1.23 lbs] |
| Width: | 15 mm [.59 in] |
Login
Produkt Details
- For 1-stage or 2-stage contacting with self-opening unit
- Mechanical limit of contating stage
- Quick, easy installation by replacing the rear bearing block
- Adjustable screw to select ICT or ICT/FCT operating mode.
- Optionally available proximity switch to detect FCT position
Direktauswahl:
Technische Daten
Compatible with
- Manual test fixtures (MA): MA 2xxx
- For dual-stage contacting: Yes
Technical data
- Connection: Cable
- Number of poles: 3
- Length: 118 mm [4.64 in]
- Outer dimensionS (WxDxH): 15 x 118 x 101 mm [.59 x 4.64 x 3.97 in]
- Cable length: 350 mm [13.7 in]
- Installation: Thread M5
- Max. voltage: 36 VDC
General data
- Max. temperature: 60 °C [140 °F]
- Height: 101 mm [3.97 in]
- Scope of delivery: Pre-assembled
- Accessory type: Additional function
- Version: Mechanical with electric motor
- Material: 3.3547, hard-coated
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Weight: 0.56 kg [1.23 lbs]
- Type: Dual-stage limit
- Width: 15 mm [.59 in]
