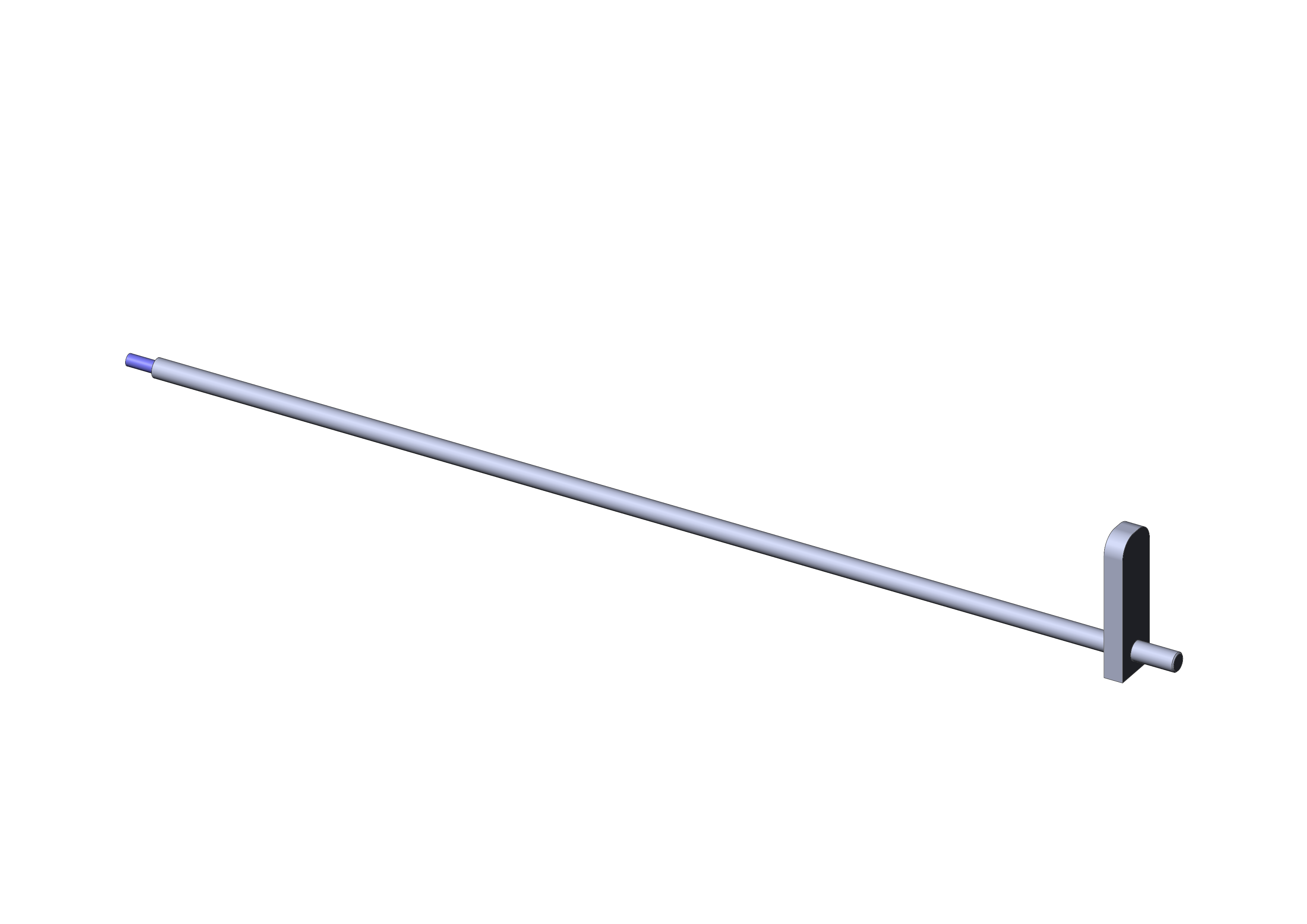

Product information "FB-KSG-ER-MAxx12"
- Functional unit for individually configurable anti-pinch protection upgrade
- Increased safety for operators during maintenance operations
- Warping of housing in case of incorrect usage is avoided as much as possible

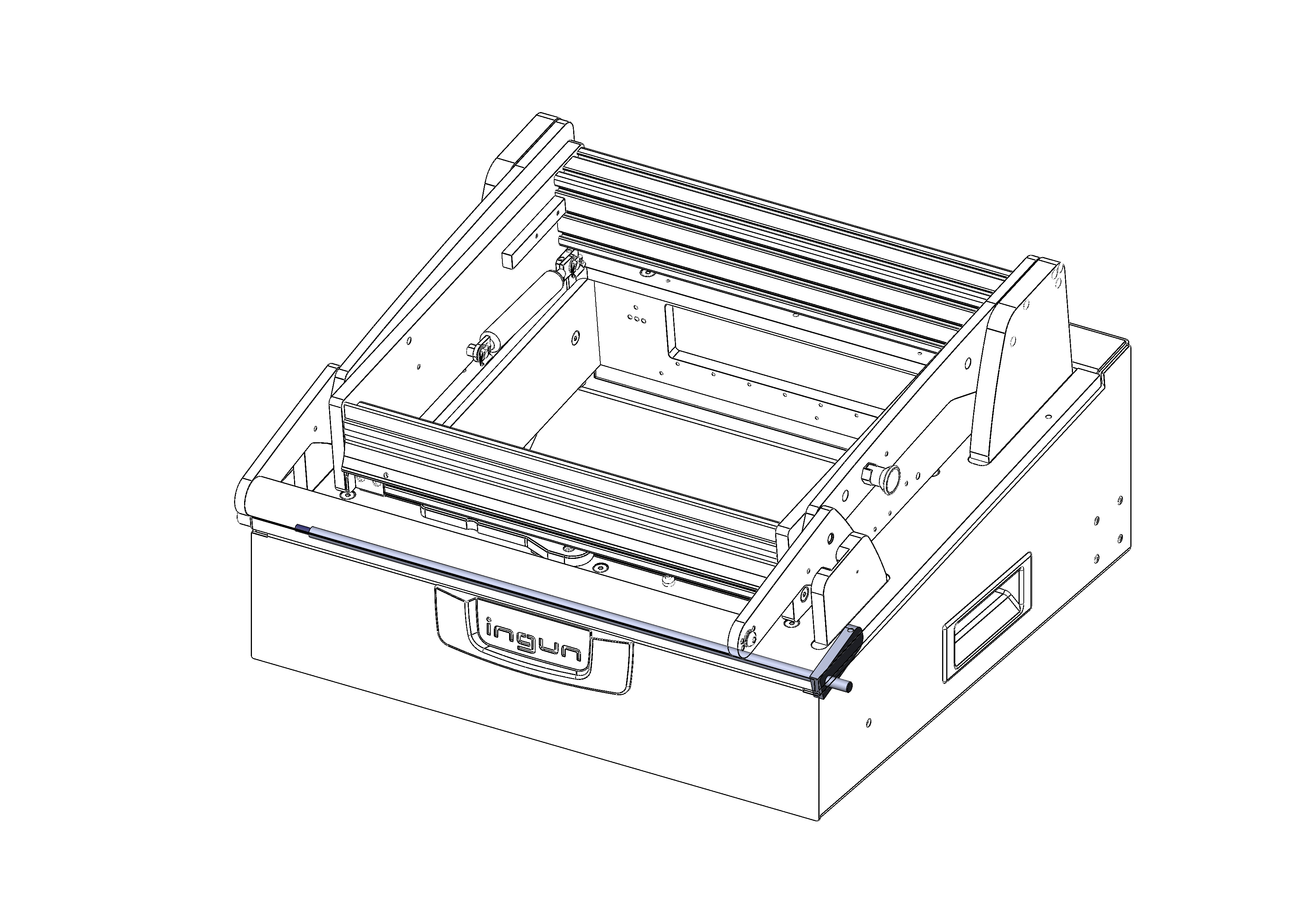

- Quick, easy installation with minimum rework on housing required
| Accessory type: | Additional function |
|---|---|
| Diameter: | 8 mm [.314 in] |
| Height: | 60 mm [2.36 in] |
| Installation: | Thread M5 |
| Length: | 20 mm [.787 in] |
| Manual test fixtures (MA): | MA xx12 |
| Material: | 3.3206 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 436 x 20 x 60 mm [17.1 x .787 x 2.36 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Type: | Anti-pinch protection extention |
| Version: | Set |
| Weight: | 0.08 kg [.176 lbs] |
| Width: | 436 mm [17.1 in] |
Login
Produkt Details
- Functional unit for individually configurable anti-pinch protection upgrade
- Increased safety for operators during maintenance operations
- Warping of housing in case of incorrect usage is avoided as much as possible
- Quick, easy installation with minimum rework on housing required
Direktauswahl:
Technische Daten
General data
- Weight: 0.08 kg [.176 lbs]
- Material: 3.3206
- Max. temperature: 60 °C [140 °F]
- Scope of delivery: Unassembled
- Height: 60 mm [2.36 in]
- Accessory type: Additional function
- Width: 436 mm [17.1 in]
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Version: Set
- Type: Anti-pinch protection extention
Compatible with
- Manual test fixtures (MA): MA xx12
Technical data
- Diameter: 8 mm [.314 in]
- Length: 20 mm [.787 in]
- Installation: Thread M5
- Outer dimensionS (WxDxH): 436 x 20 x 60 mm [17.1 x .787 x 2.36 in]
