Product information "FB-SIS-OSA-MAxx13"

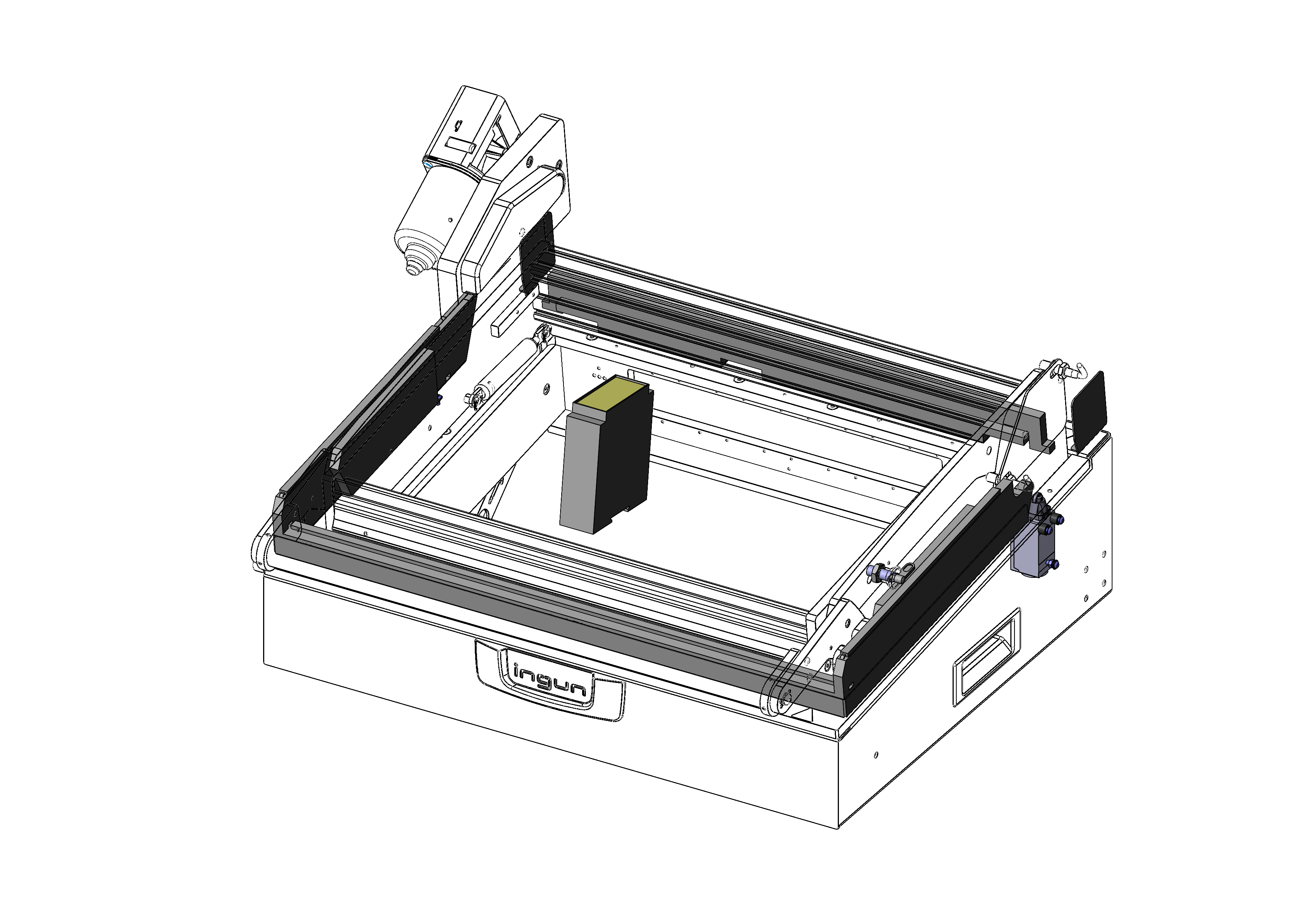

- Safety switch provides anti-pinch protection for automatic test fixtures

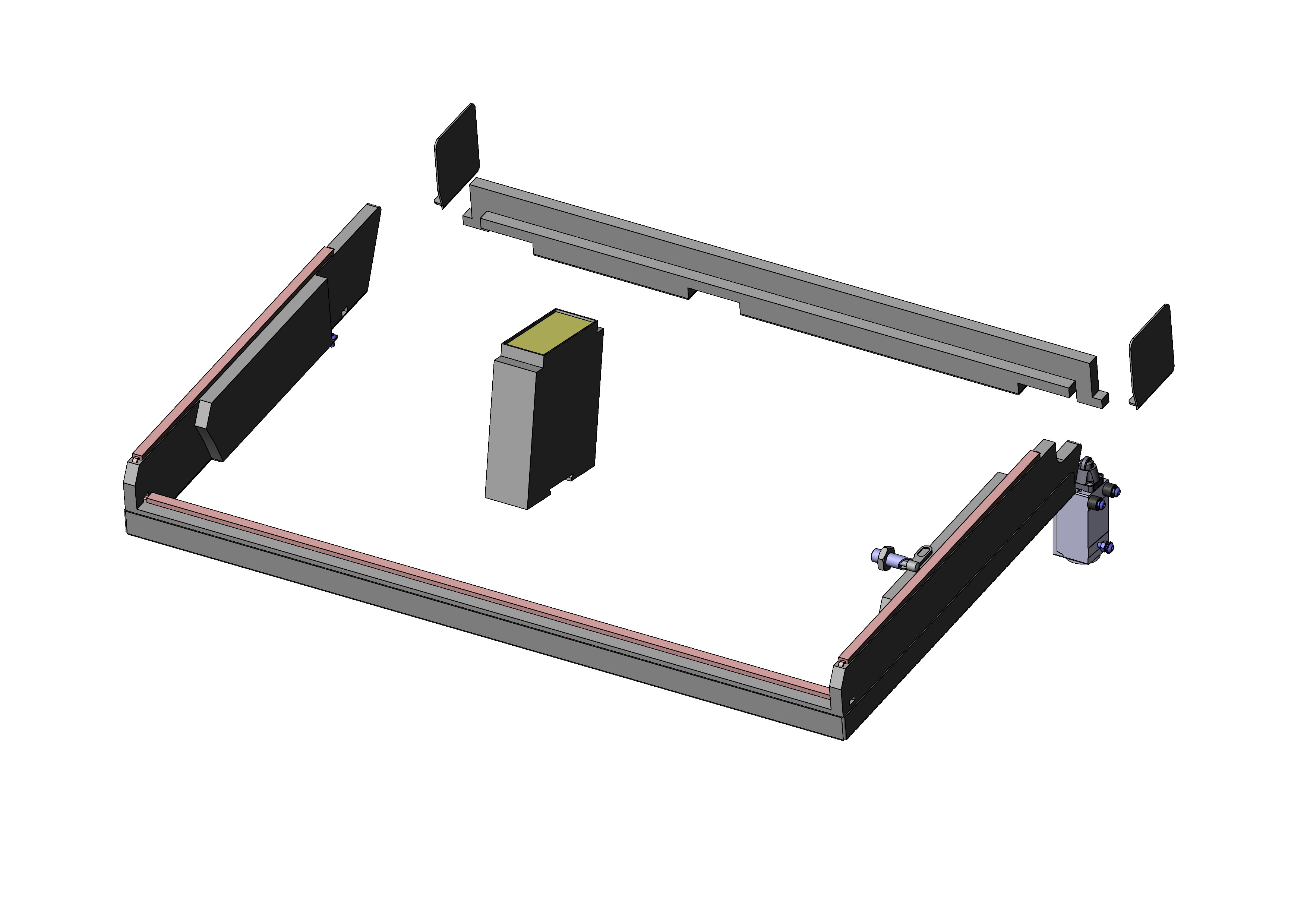

- Functional unit for individually configurable upgrading (independent, on-site installation)
- Includes detailed installation documentation
| Accessory type: | Additional function |
|---|---|
| For dual-stage contacting: | No |
| Height: | 67 mm [2.63 in] |
| Length: | 507 mm [19.9 in] |
| Manual test fixtures (MA): | MA xx13 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 613 x 507 x 67 mm [24.1 x 19.9 x 2.63 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Type: | Safety strip |
| Version: | Access protection |
| Weight: | 1.6 kg [3.52 lbs] |
| Width: | 613 mm [24.1 in] |
Login
Produkt Details
- Safety switch provides anti-pinch protection for automatic test fixtures
- Functional unit for individually configurable upgrading (independent, on-site installation)
- Includes detailed installation documentation
Direktauswahl:
Technische Daten
Technical data
- Outer dimensionS (WxDxH): 613 x 507 x 67 mm [24.1 x 19.9 x 2.63 in]
- Length: 507 mm [19.9 in]
General data
- Weight: 1.6 kg [3.52 lbs]
- Version: Access protection
- Max. temperature: 60 °C [140 °F]
- Scope of delivery: Unassembled
- Accessory type: Additional function
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- Type: Safety strip
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Height: 67 mm [2.63 in]
- Width: 613 mm [24.1 in]
Compatible with
- Manual test fixtures (MA): MA xx13
- For dual-stage contacting: No
