Produktinformation
Product information "FB-SIS-OSA-MAxx11"

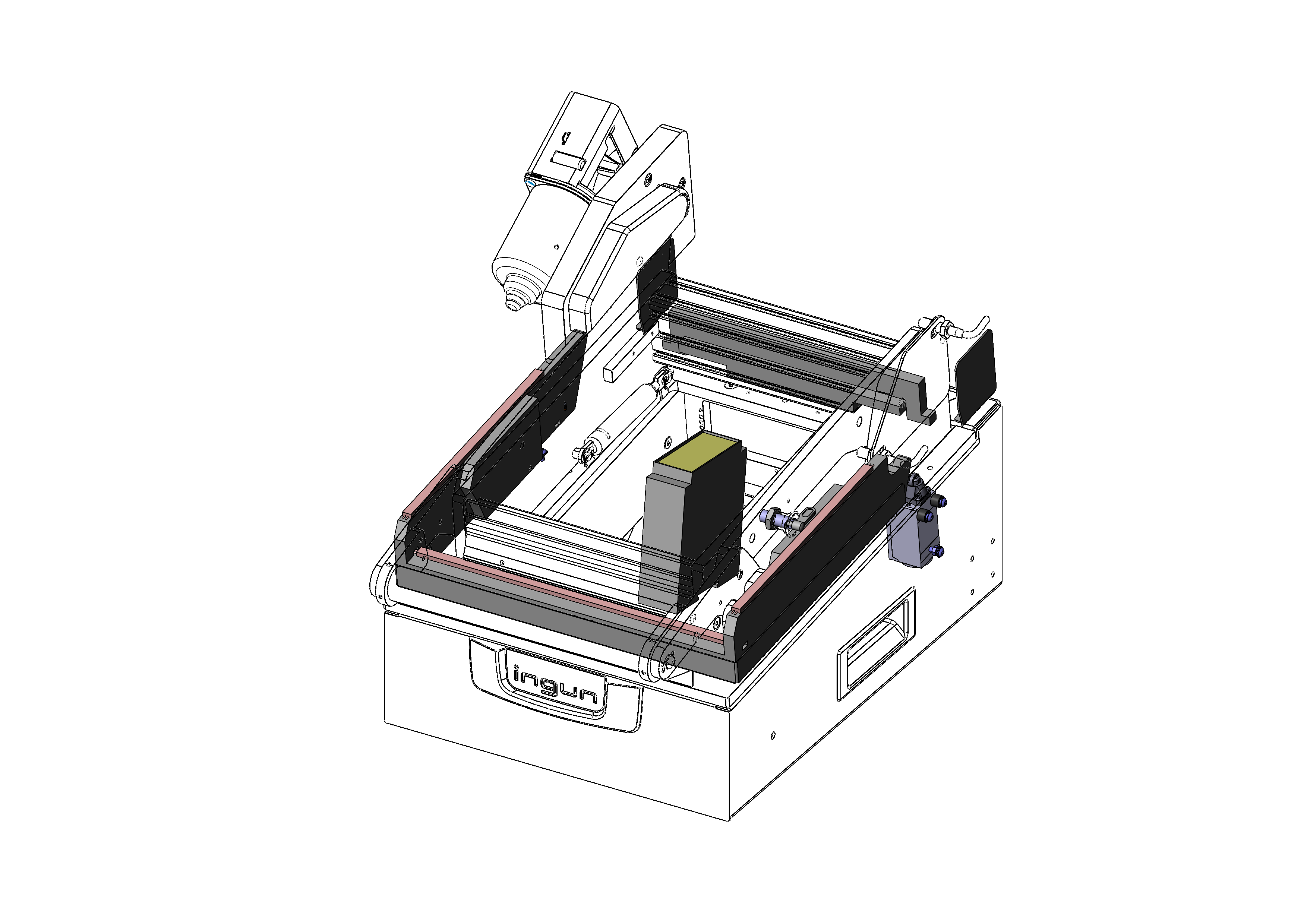

- Safety switch provides anti-pinch protection for automatic test fixtures
- Functional unit for individually configurable upgrading (independent, on-site installation)
- Includes detailed installation documentation
| Accessory type: | Additional function |
|---|---|
| For dual-stage contacting: | No |
| Height: | 67 mm [2.63 in] |
| Length: | 437 mm [17.2 in] |
| Manual test fixtures (MA): | MA xx11 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 317 x 437 x 67 mm [12.4 x 17.2 x 2.63 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Type: | Safety strip |
| Version: | Access protection |
| Weight: | 1.2 kg [2.64 lbs] |
| Width: | 317 mm [12.4 in] |
Login
Produkt Details
- Safety switch provides anti-pinch protection for automatic test fixtures
- Functional unit for individually configurable upgrading (independent, on-site installation)
- Includes detailed installation documentation
Direktauswahl:
Technische Daten
Compatible with
- Manual test fixtures (MA): MA xx11
- For dual-stage contacting: No
Technical data
- Outer dimensionS (WxDxH): 317 x 437 x 67 mm [12.4 x 17.2 x 2.63 in]
- Length: 437 mm [17.2 in]
General data
- Version: Access protection
- Max. temperature: 60 °C [140 °F]
- Scope of delivery: Unassembled
- Accessory type: Additional function
- Width: 317 mm [12.4 in]
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- Type: Safety strip
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Height: 67 mm [2.63 in]
- Weight: 1.2 kg [2.64 lbs]
