Produktinformation

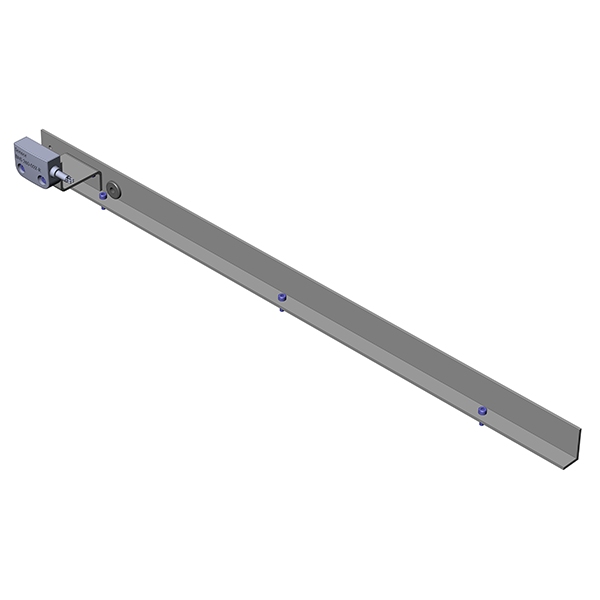

Product information "FB-SIS-BM-MAxx13"
- Safety switch for locking the closed pressure frames
| Accessory type: | Additional function |
|---|---|
| Cable length: | 1,000 mm [39.3 in] |
| Connection: | Cable |
| Exchangeable kits version: | No limitations |
| Height: | 51 mm [2 in] |
| Length: | 506 mm [19.9 in] |

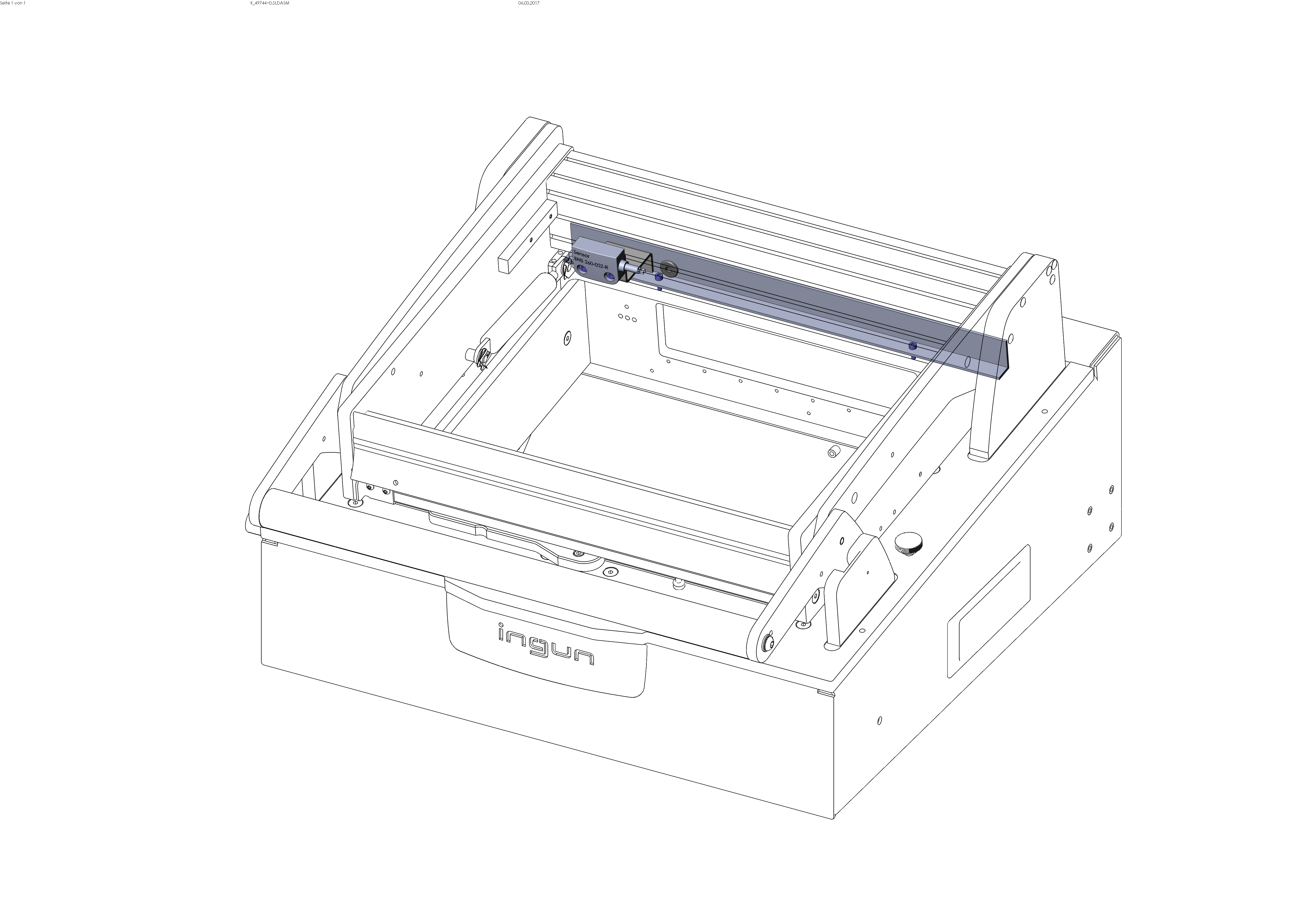

| Manual test fixtures (MA): | MA xx13 |
| Material: | PVC (cable) |
| Max. temperature: | 70 °C [158 °F] |
| Min. temperature: | -25 °C [-13 °F] |
| Outer dimensionS (WxDxH): | 68 x 506 x 51 mm [2.67 x 19.9 x 2 in] |
| Product group: | Safety switch / actuator |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Type: | Safety switch |
| Version: | Magnetic |
| Width: | 68 mm [2.67 in] |
Login
Produkt Details
- Safety switch for locking the closed pressure frames
Direktauswahl:
Technische Daten
General data
- Min. temperature: -25 °C [-13 °F]
- Version: Magnetic
- Height: 51 mm [2 in]
- Scope of delivery: Unassembled
- Accessory type: Additional function
- Width: 68 mm [2.67 in]
- Material: PVC (cable)
- Max. temperature: 70 °C [158 °F]
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Product group: Safety switch / actuator
- Type: Safety switch
Compatible with
- Manual test fixtures (MA): MA xx13
- Exchangeable kits version: No limitations
Technical data
- Outer dimensionS (WxDxH): 68 x 506 x 51 mm [2.67 x 19.9 x 2 in]
- Connection: Cable
- Cable length: 1,000 mm [39.3 in]
- Length: 506 mm [19.9 in]
