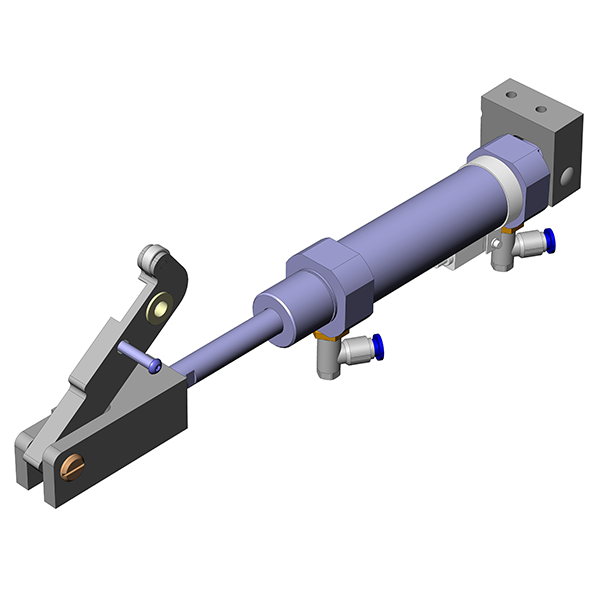

Product information "FB-SOP-MA2x09"

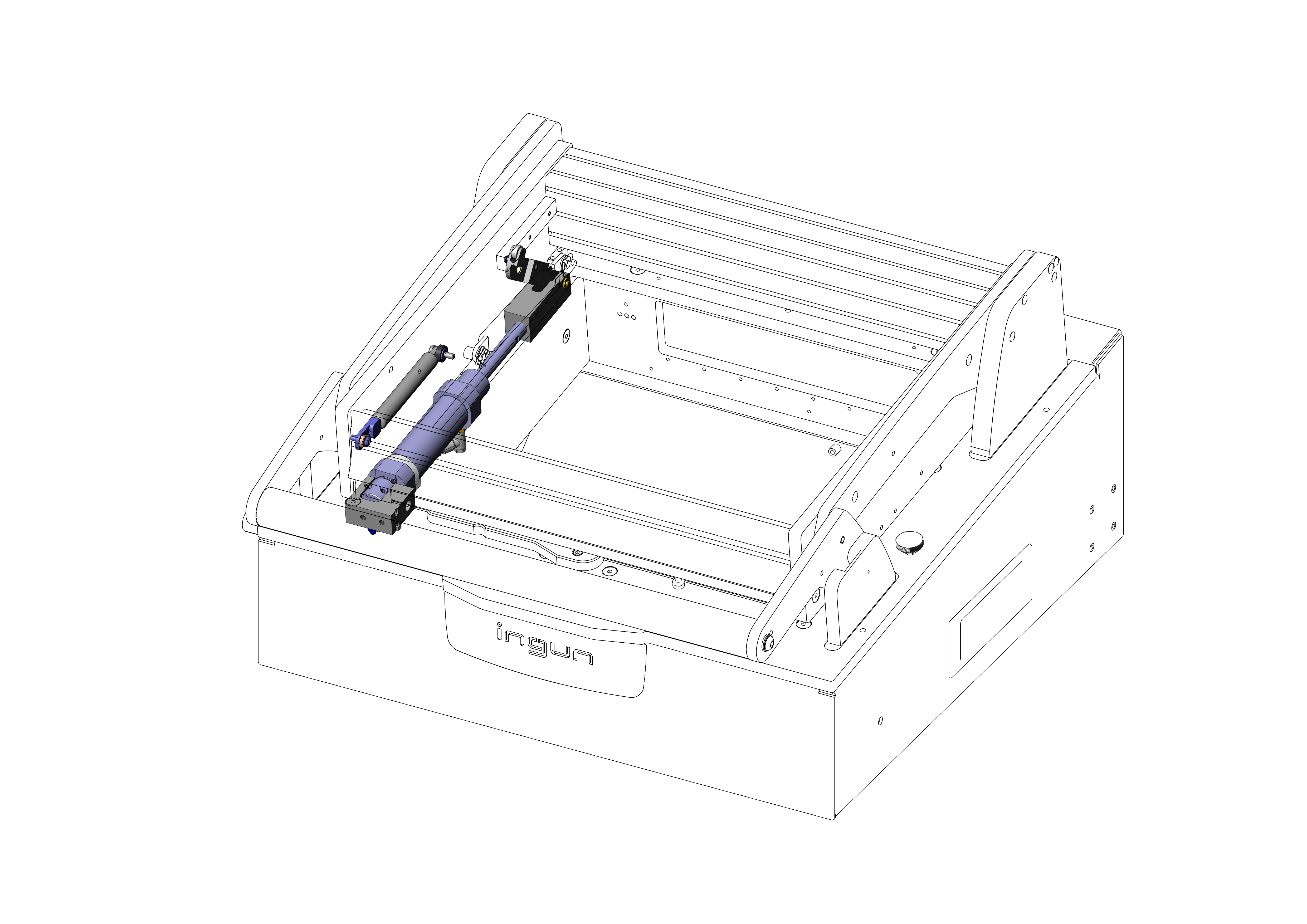

- Automated, self-opening for manual test fixture MA xxxx
- Open test fixture must be closed manually
- Functional unit for individually configurable upgrade
- Sustainably increased productivity in the test field
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No limitations |
| Height: | 98 mm [3.85 in] |
| Length: | 277 mm [10.9 in] |
| Manual test fixtures (MA): | MA 2x09 |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -20 °C [-4 °F] |
| Product group: | Automation |
| Series: | FB-MAxxxx |
| Stroke: | 50 mm [1.96 in] |
| Version: | Pneumatic |
| Width: | 46 mm [1.81 in] |
Login
Produkt Details
- Automated, self-opening for manual test fixture MA xxxx
- Open test fixture must be closed manually
- Functional unit for individually configurable upgrade
- Sustainably increased productivity in the test field
Direktauswahl:
Technische Daten
Compatible with
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA 2x09
General data
- Width: 46 mm [1.81 in]
- Accessory type: Additional function
- Height: 98 mm [3.85 in]
- Version: Pneumatic
- Min. temperature: -20 °C [-4 °F]
- Series: FB-MAxxxx
- Max. temperature: 80 °C [176 °F]
- Product group: Automation
Technical data
- Stroke: 50 mm [1.96 in]
- Length: 277 mm [10.9 in]
