Product information "FB-SOE-MAxx11/12/13/13T/14"

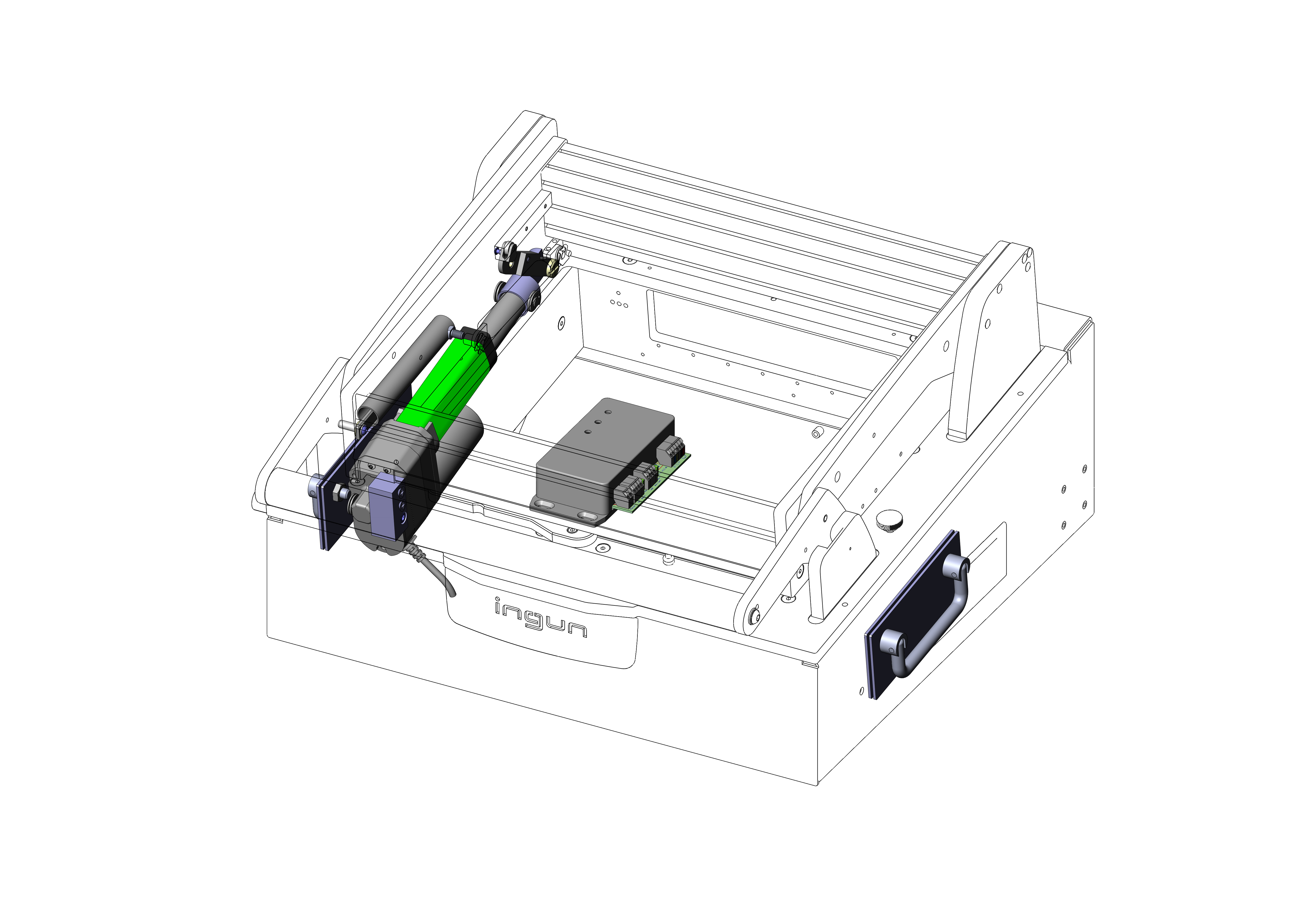

- Automated, self-opening for manual test fixture MA xxxx
- Open test fixture must be closed manually

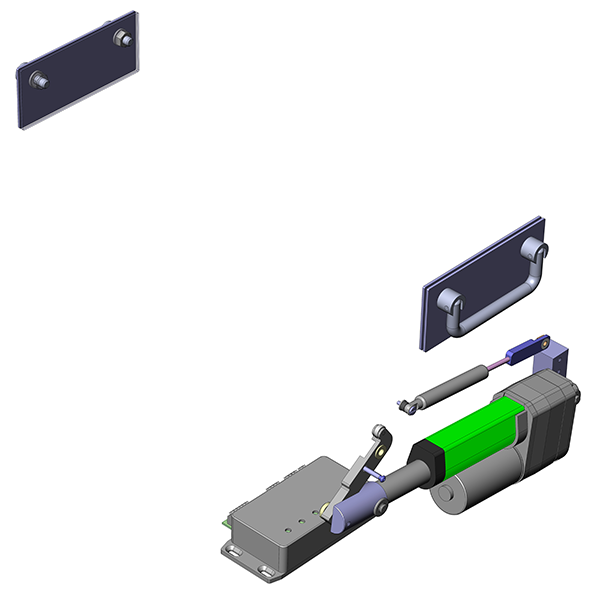

- Functional unit for individually configurable upgrade
- Sustainably increased productivity in the test field
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No limitations |
| Height: | 145 mm [5.7 in] |
| Length: | 304 mm [11.9 in] |
| Manual test fixtures (MA): | MA xxxx, MA xxxxT |
| Max. temperature: | 80 °C [176 °F] |
| Max. voltage: | 24 VDC |
| Min. temperature: | -20 °C [-4 °F] |
| Product group: | Automation |
| Scope of delivery: | With control |
| Series: | FB-MAxxxx |
| Stroke: | 40 mm [1.57 in] |
| Version: | Electrical |
| Width: | 52 mm [2.04 in] |
Login
Produkt Details
- Automated, self-opening for manual test fixture MA xxxx
- Open test fixture must be closed manually
- Functional unit for individually configurable upgrade
- Sustainably increased productivity in the test field
Direktauswahl:
Technische Daten
General data
- Height: 145 mm [5.7 in]
- Scope of delivery: With control
- Version: Electrical
- Accessory type: Additional function
- Min. temperature: -20 °C [-4 °F]
- Series: FB-MAxxxx
- Max. temperature: 80 °C [176 °F]
- Width: 52 mm [2.04 in]
- Product group: Automation
Compatible with
- Manual test fixtures (MA): MA xxxxT
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA xxxx
Technical data
- Max. voltage: 24 VDC
- Stroke: 40 mm [1.57 in]
- Length: 304 mm [11.9 in]
