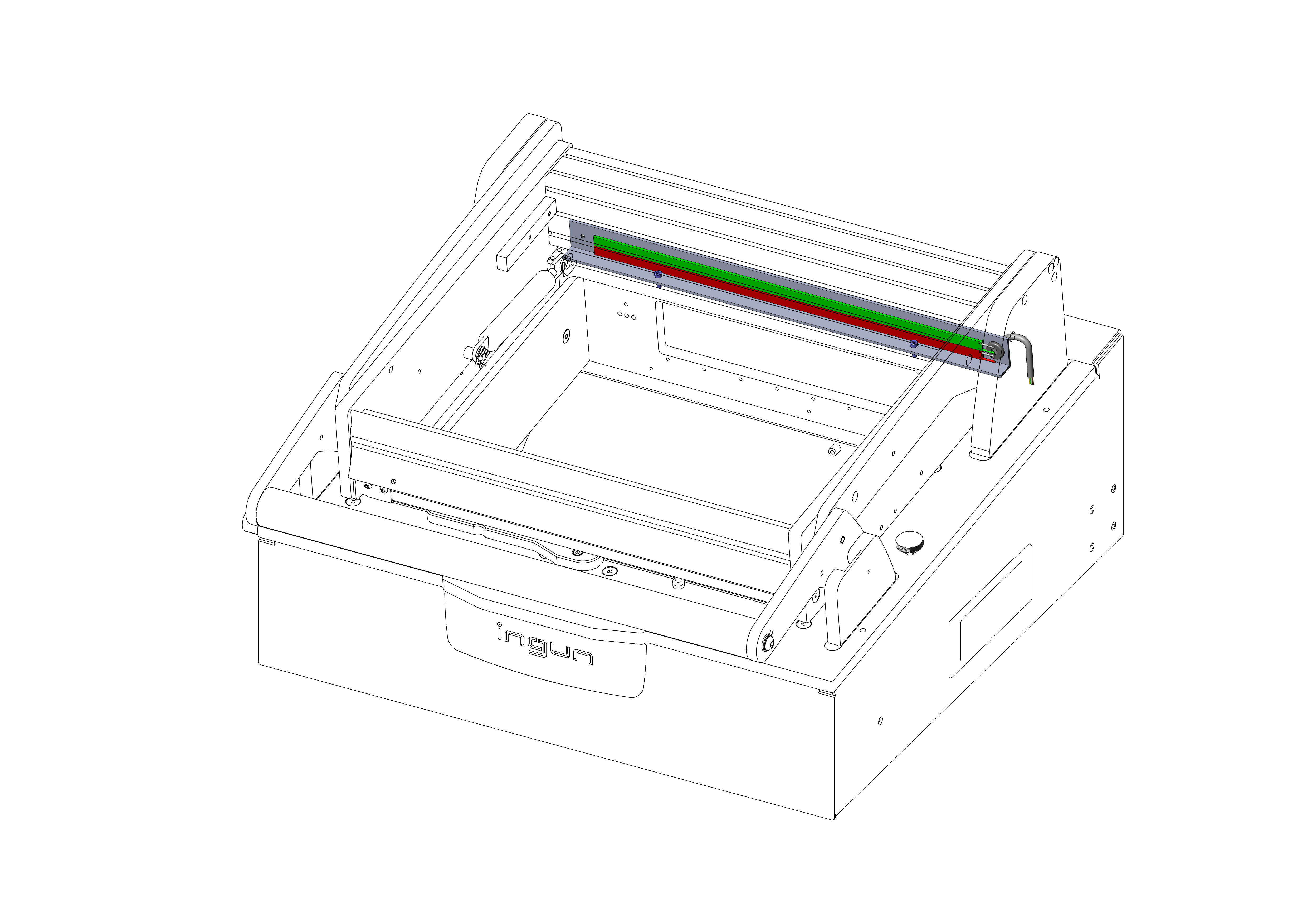

Product information "FB-LED-MAxx12"
- Signalling of the test results (pass/fail) on the test fixture
- Illumination of the test fixture interior
- Functional unit for individually configurable upgrade
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No limitations |
| Height: | 25 mm [.984 in] |
| Length: | 15 mm [.59 in] |
| Manual test fixtures (MA): | MA xx12 |
| Max. voltage: | 12 V |
| Outer dimensionS (WxDxH): | 350 x 15 x 25 mm [13.7 x .59 x .984 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Partially assembled |
| Series: | FB-MAxxxx |
| Type: | Green/red |
| Version: | Pass/fail LED indicator |
| Width: | 350 mm [13.7 in] |
Login
Produkt Details
- Signalling of the test results (pass/fail) on the test fixture
- Illumination of the test fixture interior
- Functional unit for individually configurable upgrade
Direktauswahl:
Technische Daten
General data
- Type: Green/red
- Width: 350 mm [13.7 in]
- Accessory type: Additional function
- Version: Pass/fail LED indicator
- Product group: Functional units
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Height: 25 mm [.984 in]
- Scope of delivery: Partially assembled
Compatible with
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA xx12
Technical data
- Outer dimensionS (WxDxH): 350 x 15 x 25 mm [13.7 x .59 x .984 in]
- Max. voltage: 12 V
- Length: 15 mm [.59 in]
