Product information "FB-ENT-NDH-P"
- Automated unlocking of closed pressure frame

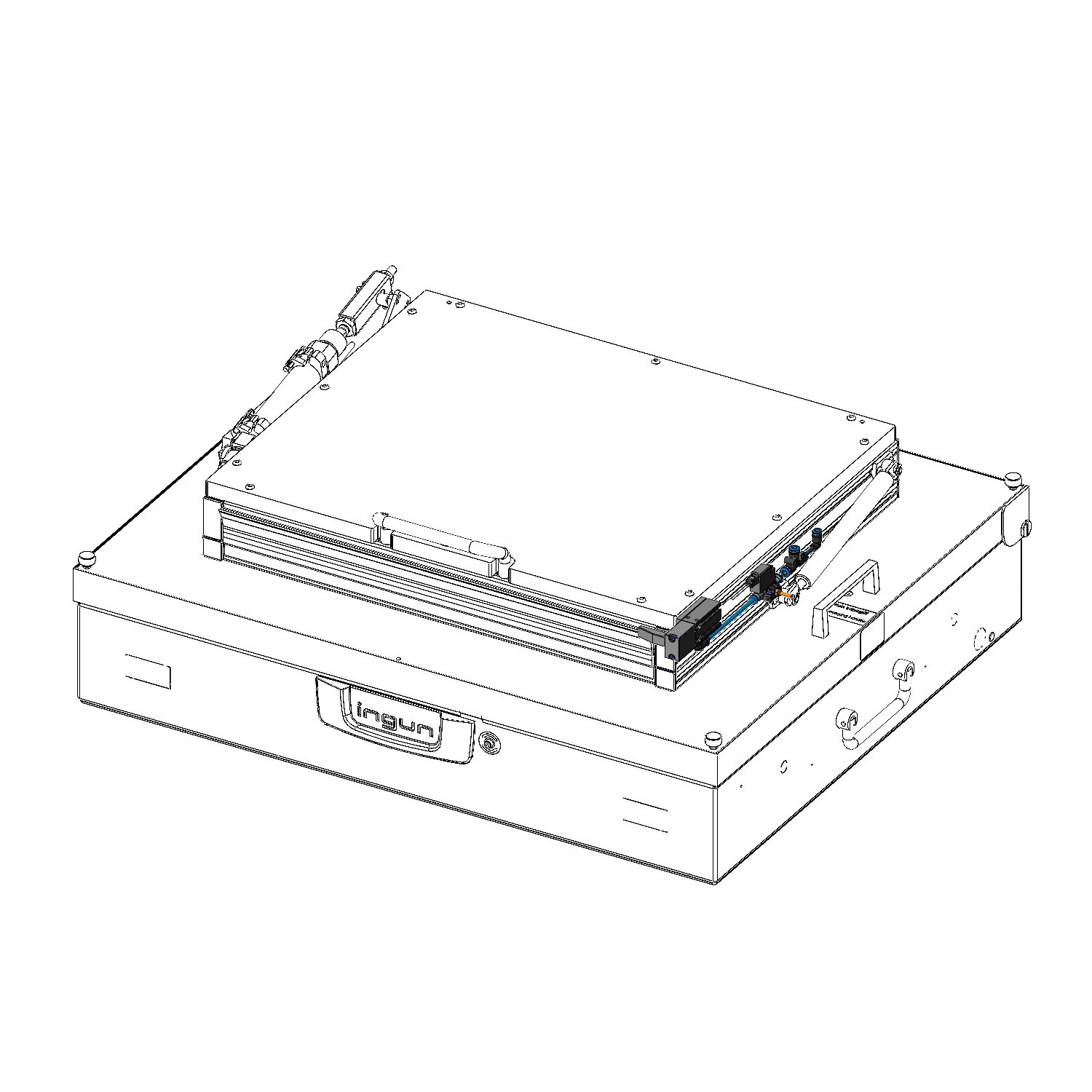

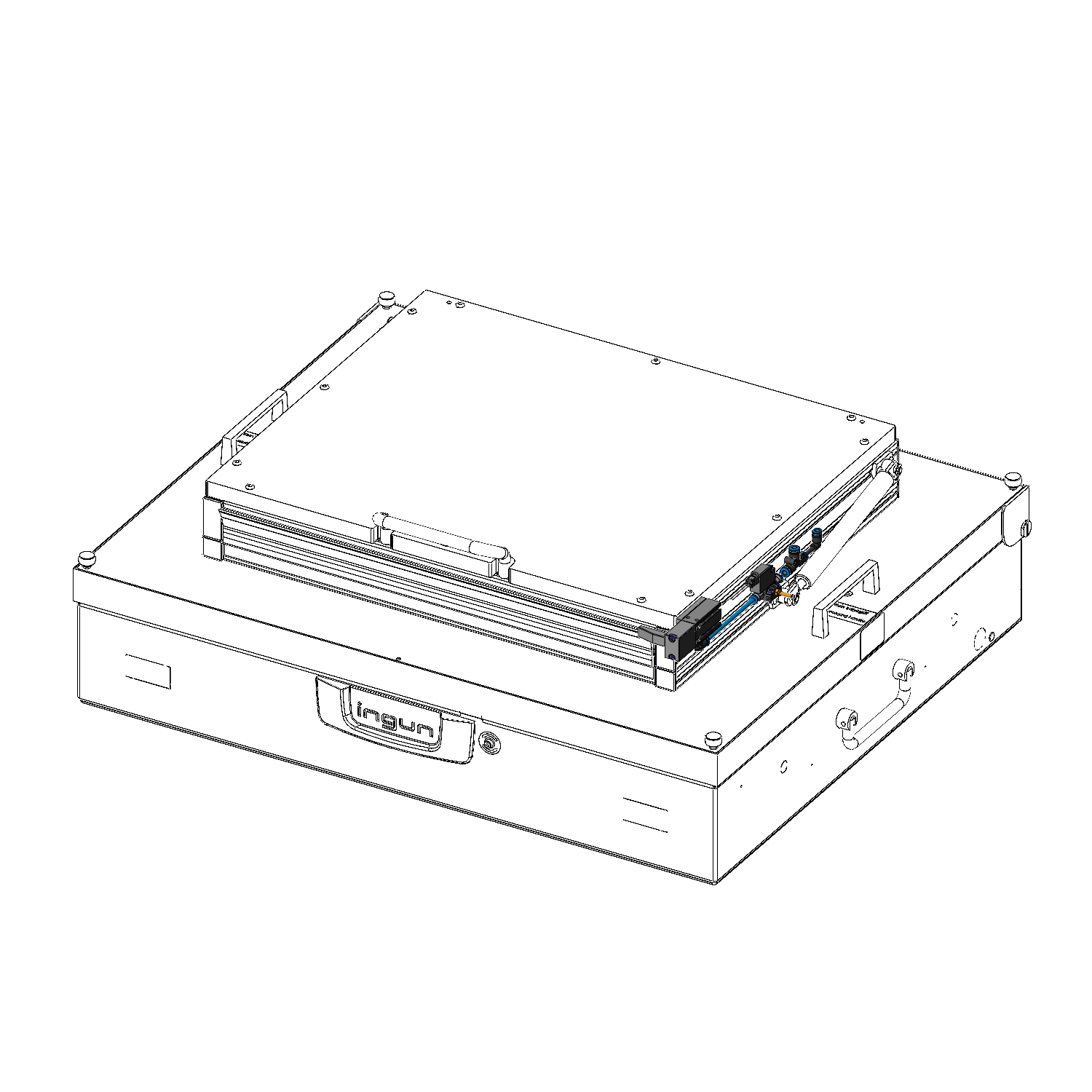

- Quick, easy installation either on the side profile of the frame or on the pressure plate
- Simple adaptation to the pneumatic control system of the automatic opener/closer for vacuum test fixtures
- Pneumatic drive system
| Accessories: | NDH, VKH, ZSK |
|---|---|
| Accessory type: | Additional function |
| Compressed air connection: | QS-4 |
| Connection: | Compressed air, 6 bar |
| Force: | 31 N [111 ozf] |
| Height: | 29 mm [1.14 in] |
| Length: | 74 mm [2.91 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 48 x 74 x 29 mm [1.88 x 2.91 x 1.14 in] |
| Product group: | Automation |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-VAxxxx |
| Stroke: | 10 mm [.393 in] |
| Type: | Unlocking unit for pressure frame |
| Vacuum test fixtures (VA): | VA 20xx, VA 40xx |
| Version: | Pneumatic |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 48 mm [1.88 in] |
Login
Produkt Details
- Automated unlocking of closed pressure frame
- Quick, easy installation either on the side profile of the frame or on the pressure plate
- Simple adaptation to the pneumatic control system of the automatic opener/closer for vacuum test fixtures
- Pneumatic drive system
Direktauswahl:
Technische Daten
Compatible with
- Accessories: NDH
- Vacuum test fixtures (VA): VA 40xx
- Vacuum test fixtures (VA): VA 20xx
- Accessories: VKH
- Accessories: ZSK
General data
- Type: Unlocking unit for pressure frame
- Max. temperature: 60 °C [140 °F]
- Scope of delivery: Unassembled
- Accessory type: Additional function
- Min. temperature: 10 °C [50 °F]
- Version: Pneumatic
- Width: 48 mm [1.88 in]
- RoHS-compliant: Yes
- Product group: Automation
- Height: 29 mm [1.14 in]
- Series: FB-VAxxxx
- Weight: 0.01 kg [.022 lbs]
Technical data
- Compressed air connection: QS-4
- Force: 31 N [111 ozf]
- Length: 74 mm [2.91 in]
- Stroke: 10 mm [.393 in]
- Outer dimensionS (WxDxH): 48 x 74 x 29 mm [1.88 x 2.91 x 1.14 in]
- Connection: Compressed air, 6 bar
