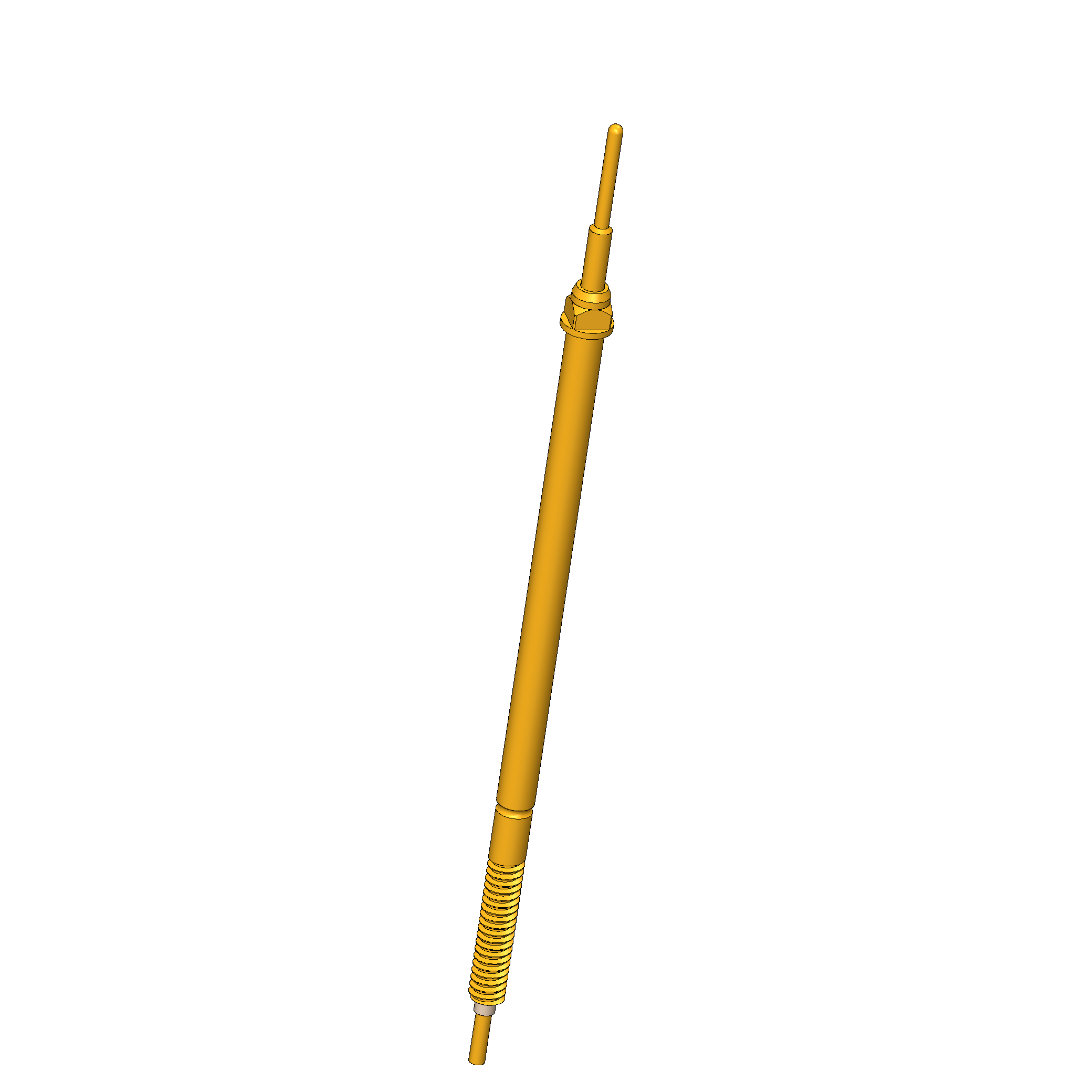

Product information "SKS-215 305 064 A 1502 M"
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle, optionally available with a quick-change system for easy exchange during maintenance
| Adjustable installation height: | Yes |
|---|---|
| Barrel diameter: | 1.65 mm [.064 in] |
| Collar height: | 02 |
| Compatible connector(s): | SE-081 |
| Compatible receptacle(s): | KS-215 M |
| Contacting from: | Pad, Female connector |
| Current load capacity / rated current: | 3 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 5 mm [.196 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (screwed-in), Switching probes |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Screw-in torque: | 3 – 5 cNm [.265 – .442 lbf·in] |
| Screw-in torque max.: | 5 cNm [.442 lbf·in] |
| Screw-in torque min.: | 3 cNm [.265 lbf·in] |
| Series: | SKS-215, SKS-215 M plug system, screw-in |
| Spring force at switching point: | 0.45 N [1.61 ozf] |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.25 N [.899 ozf] |
| Sub-product group: | SKS (screwed-in) |
| Switching point: | 8.5 mm [.334 in] |
| Switch path: | 1.5 mm [.059 in] |
| Tip diameter: | 0.64 mm [.025 in] |
| Tip style: | 05 bullet-nosed (full radius) |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 46.5 mm [1.83 in] |
| Type of test probe connection: | Plug |
| Working stroke: | 4 mm [.157 in] |
Login
Produkt Details
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle, optionally available with a quick-change system for easy exchange during maintenance
Direktauswahl:
Technische Daten

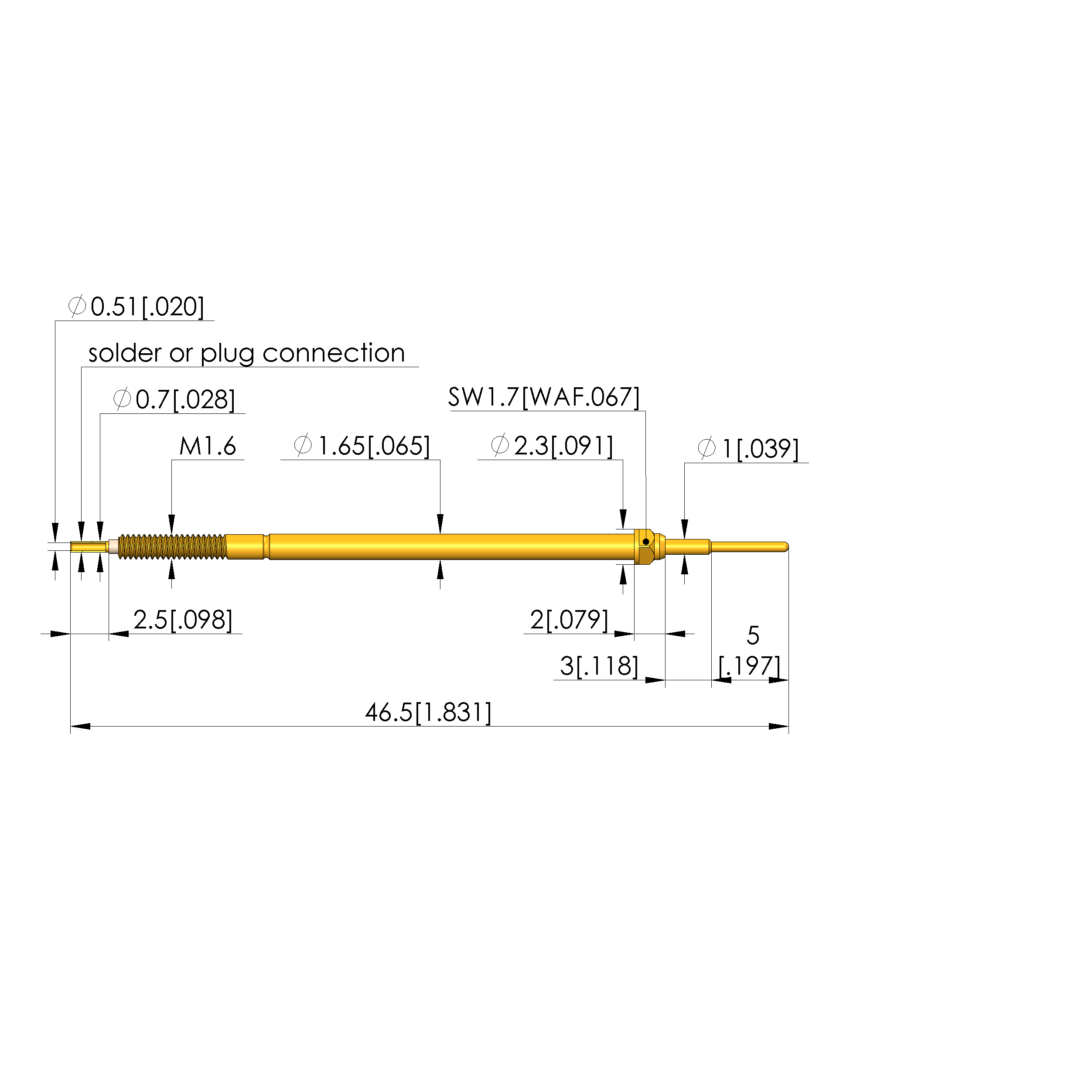

Mechanical data
- Maximum stroke: 5 mm [.196 in]
- Switching point: 8.5 mm [.334 in]
- Spring force at switching point: 0.45 N [1.61 ozf]
- Total length: 46.5 mm [1.83 in]
- Barrel diameter: 1.65 mm [.064 in]
- Switch path: 1.5 mm [.059 in]
- Spring pre-load: 0.25 N [.899 ozf]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Working stroke: 4 mm [.157 in]
- Collar height: 02
Tip style data

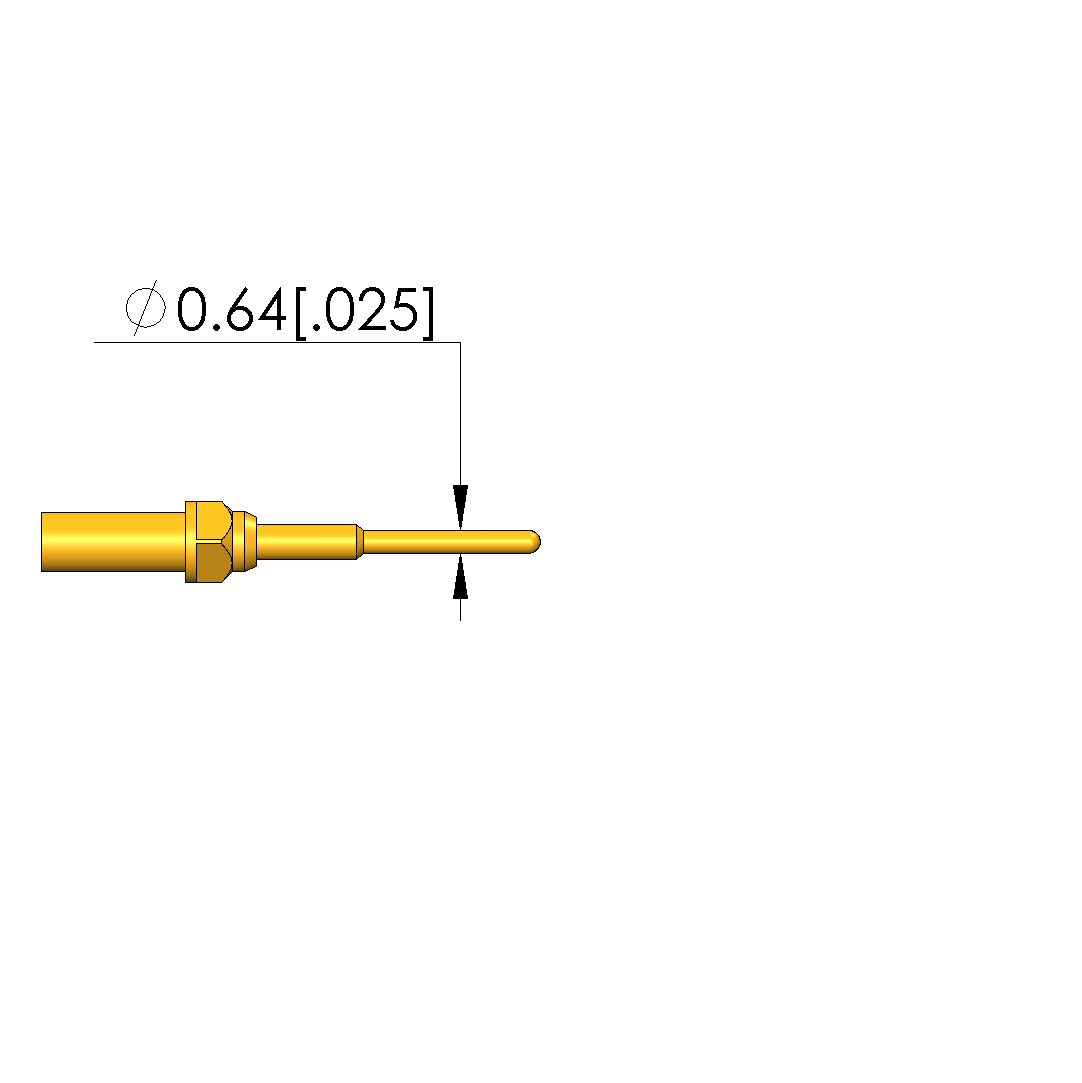

- Tip diameter: 0.64 mm [.025 in]
- Tip style material: 3 CuBe

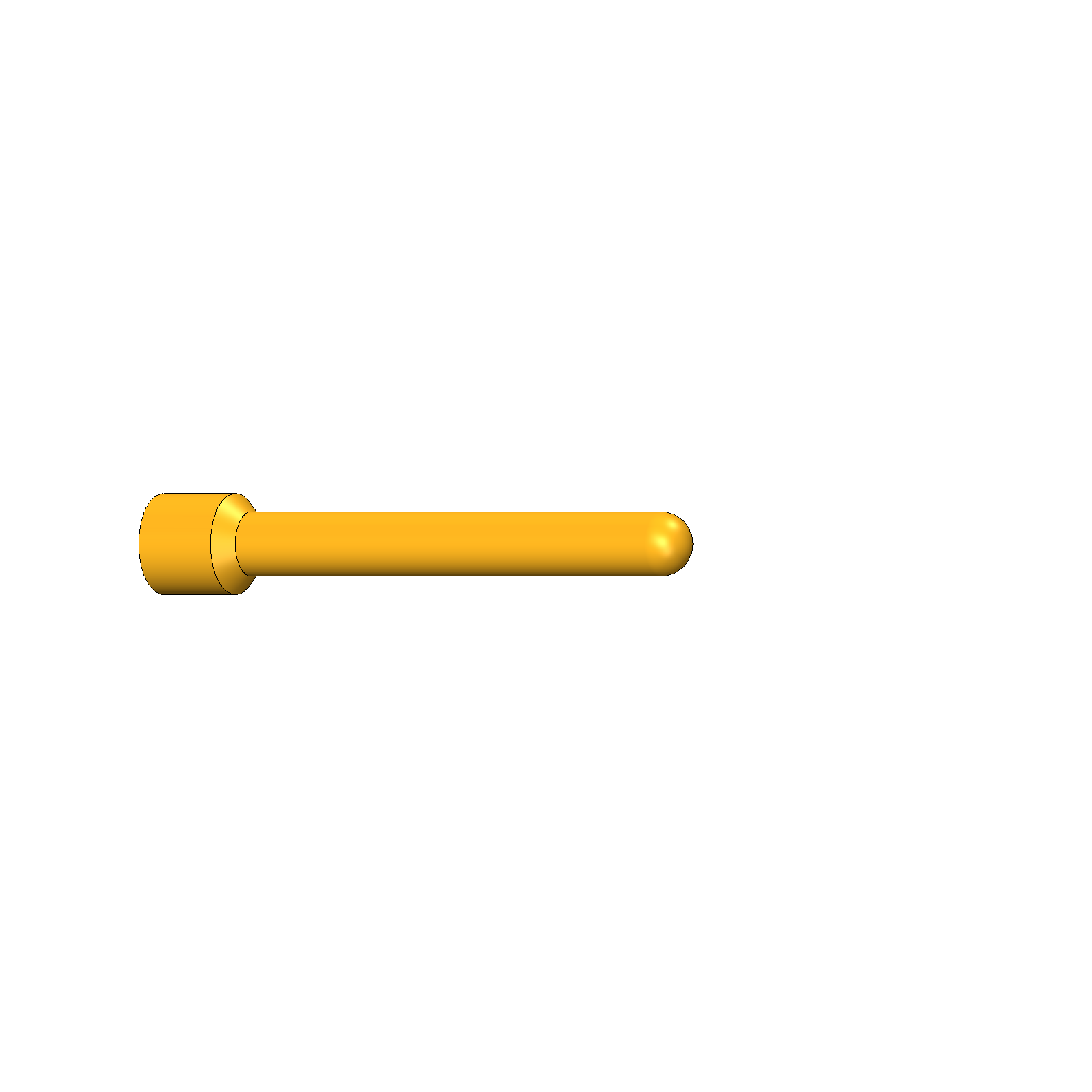

- Tip style: 05 bullet-nosed (full radius)
- Tip style surface: A gold
General data
- Contacting from: Female connector
- Series: SKS-215 M plug system, screw-in
- Screw-in torque max.: 5 cNm [.442 lbf·in]
- Non-rotating: No
- Type of test probe connection: Plug
- Compatible connector(s): SE-081
- Series: SKS-215
- Grid: 2.54 mm [100 mil]
- Min. temperature: -40 °C [-40 °F]
- Product group: Switching probes
- Screw-in torque min.: 3 cNm [.265 lbf·in]
- RoHS-compliant: Yes
- Adjustable installation height: Yes
- Max. temperature: 80 °C [176 °F]
- Screw-in torque: 3 – 5 cNm [.265 – .442 lbf·in]
- Installation type: Screw-in
- Product group: SKS (screwed-in)
- Compatible receptacle(s): KS-215 M
- Sub-product group: SKS (screwed-in)
- Magnetic: Yes
- Contacting from: Pad
- Quick-exchange system: No
Electrical data
- Current load capacity / rated current: 3 A
