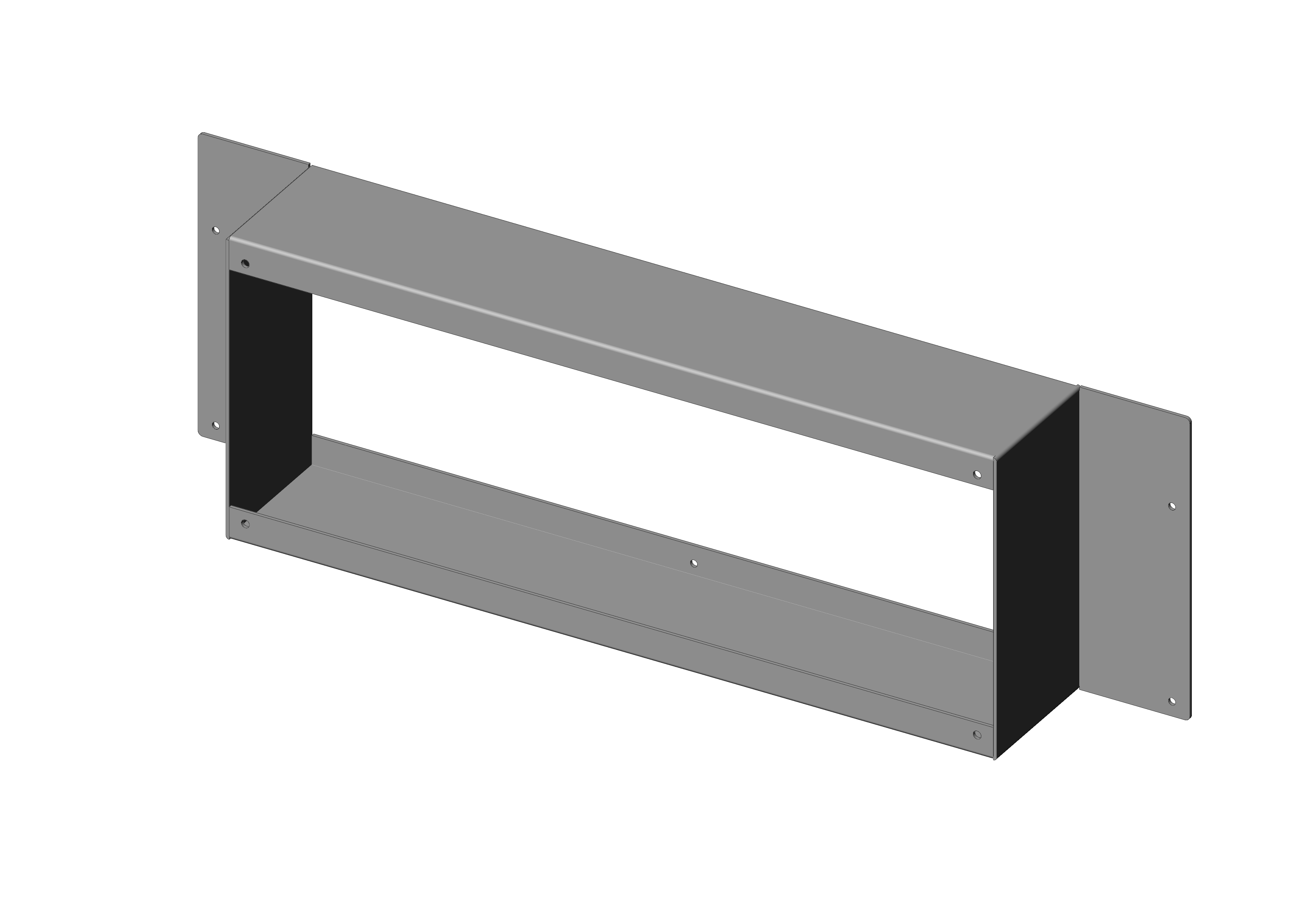

Product information "SSA-ODU-FOUR-A-MAxx13"
- Interface support für ODU-MAC® Mass Interconnect interface
- Ideally designed for MA xx13 test fixtures
- Quick, easy installation on the back of the test fixture
- Reliable connection from test fixture to system interface
| Accessories: | SST-ODU-FOUR-A |
|---|---|
| Accessory type: | Additional function |
| Height: | 186 mm [7.32 in] |
| Length: | 600 mm [23.6 in] |
| Manual test fixtures (MA): | MA xx13 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 600 x 90 x 186 mm [23.6 x 3.54 x 7.32 in] |
| Product group: | Housing |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | SSA-MAxxxx |
| Type: | ODU-MAC Black-Line |
| Version: | 12-Flex FOUR A |
| Weight: | 1.05 kg [2.31 lbs] |
| Width: | 90 mm [3.54 in] |
Login
Produkt Details
- Interface support für ODU-MAC® Mass Interconnect interface
- Ideally designed for MA xx13 test fixtures
- Quick, easy installation on the back of the test fixture
- Reliable connection from test fixture to system interface
Other products in this series:
Technical data
General data
- Product group: Housing
- Series: SSA-MAxxxx
- Type: ODU-MAC Black-Line
- Version: 12-Flex FOUR A
- Accessory type: Additional function
- Scope of delivery: Unassembled
- Width: 90 mm [3.54 in]
- Height: 186 mm [7.32 in]
- Weight: 1.05 kg [2.31 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Manual test fixtures (MA): MA xx13
- Accessories: SST-ODU-FOUR-A
Technical data
- Length: 600 mm [23.6 in]
- Outer dimensionS (WxDxH): 600 x 90 x 186 mm [23.6 x 3.54 x 7.32 in]
