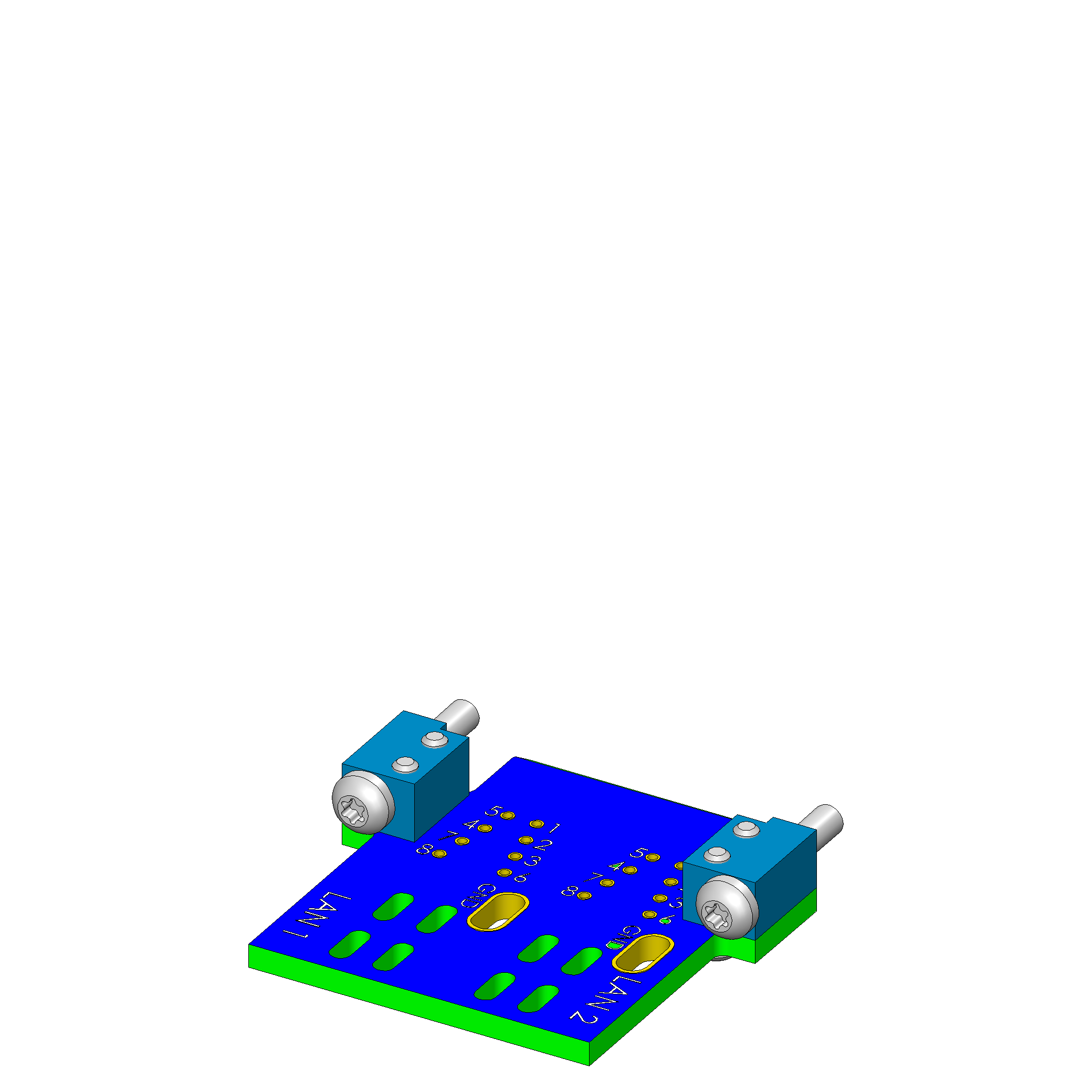

Product information "STV-HSD-SB-P-LAN-002"
- LAN HSD connector for DUT-side HSD interface block SB-P-HSD-005
- Reliable transmission of LAN signals
- HSD signal transmission via an interface (serial additional HSD interface blocks not yet possible)
- Two independent LAN channels for signal transmission
- Signal connection by soldering of commercially available LAN cables, separated on one side, to 8 free solder vias with ground.
- Colour-coded assignment of the HSD connectors, blue for HSD interface block on the DUT side
- Consistently stable signal quality throughout
- Gross data rate up to 1 Gbit/s
- PoE (power over Ethernet) compatible, in accordance with IEEE 802.3
| Accessory type: | Customising accessories |
|---|---|
| Bestückung: | 2x 8 Lötvias |
| Colour: | Blue |
| Connection: | Solder connection (vias) |
| Gross data rate: | 1 Gbit/s |

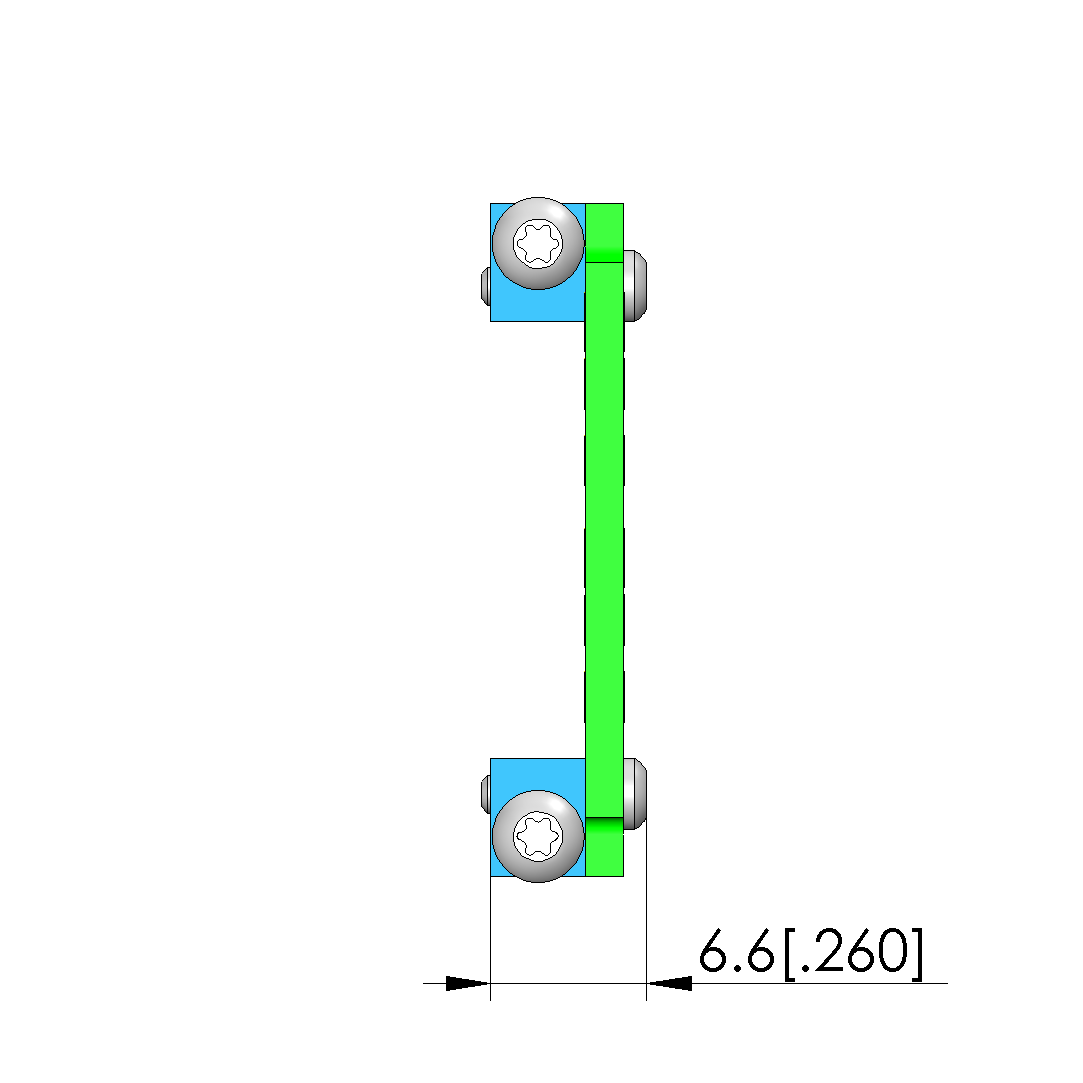

| Height: | 7 mm [.275 in] |
| Installation: | Screw M2 |
| Interface blocks (SB): | SB-P-HSD-005 |
| Length: | 28.5 mm [1.12 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 2 |

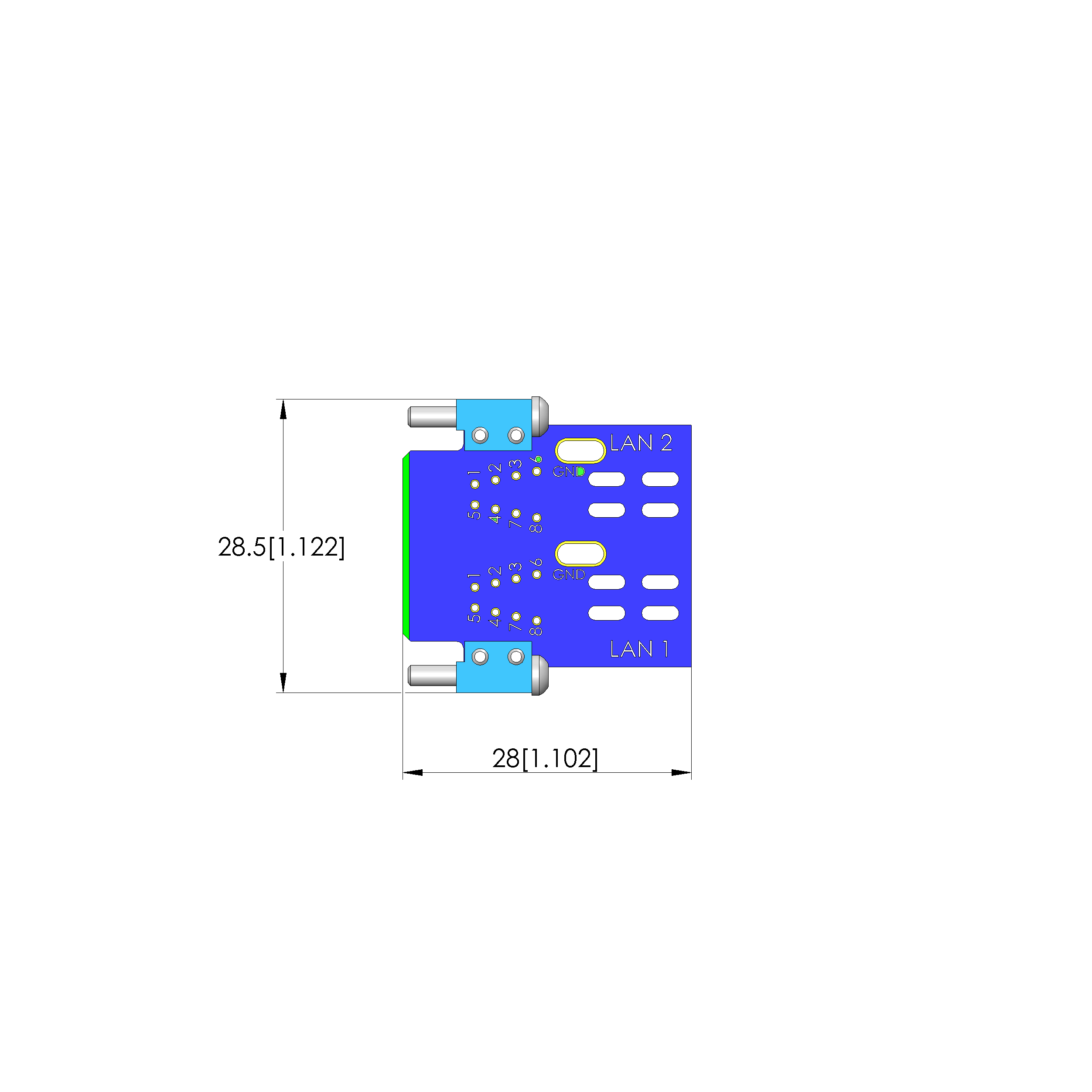

| Outer dimensionS (WxDxH): | 28.5 x 28 x 7 mm [1.12 x 1.1 x .275 in] |
| Product group: | Electric accessory |
| RoHS-compliant: | Yes |
| Scope of delivery: | Includes installation accessories |
| Series: | STV |
| Type: | HSD-SB connector |
| Version: | LAN (DUT side) |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 28 mm [1.1 in] |
Login
Produkt Details
- LAN HSD connector for DUT-side HSD interface block SB-P-HSD-005
- Reliable transmission of LAN signals
- HSD signal transmission via an interface (serial additional HSD interface blocks not yet possible)
- Two independent LAN channels for signal transmission
- Signal connection by soldering of commercially available LAN cables, separated on one side, to 8 free solder vias with ground.
- Colour-coded assignment of the HSD connectors, blue for HSD interface block on the DUT side
- Consistently stable signal quality throughout
- Gross data rate up to 1 Gbit/s
- PoE (power over Ethernet) compatible, in accordance with IEEE 802.3
Direktauswahl:
Technische Daten
General data
- Colour: Blue
- Bestückung: 2x 8 Lötvias
- Width: 28 mm [1.1 in]
- Max. temperature: 60 °C [140 °F]
- Height: 7 mm [.275 in]
- Accessory type: Customising accessories
- Type: HSD-SB connector
- Min. temperature: 10 °C [50 °F]
- Product group: Electric accessory
- RoHS-compliant: Yes
- Version: LAN (DUT side)
- Series: STV
- Scope of delivery: Includes installation accessories
- Weight: 0.01 kg [.022 lbs]
Technical data
- Number of poles: 2
- Gross data rate: 1 Gbit/s
- Installation: Screw M2
- Outer dimensionS (WxDxH): 28.5 x 28 x 7 mm [1.12 x 1.1 x .275 in]
- Length: 28.5 mm [1.12 in]
- Connection: Solder connection (vias)
Compatible with
- Interface blocks (SB): SB-P-HSD-005
