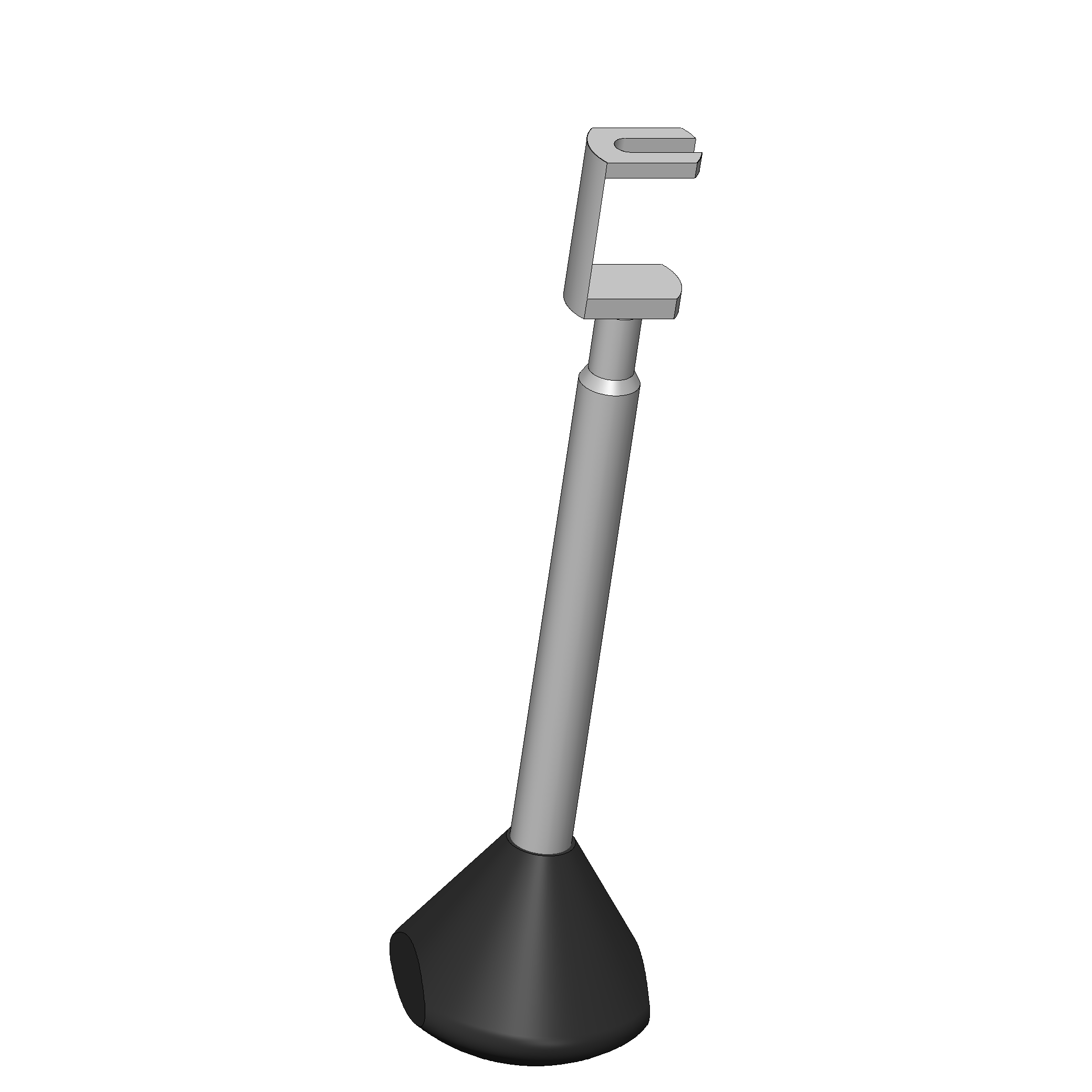

Product information "SW-ZW-HFS-810"
| Compatible test probe(s) / receptacle(s): | 509 HFS-410, HFS-440, HFS-810, HFS-840, HFS-860 |
|---|---|

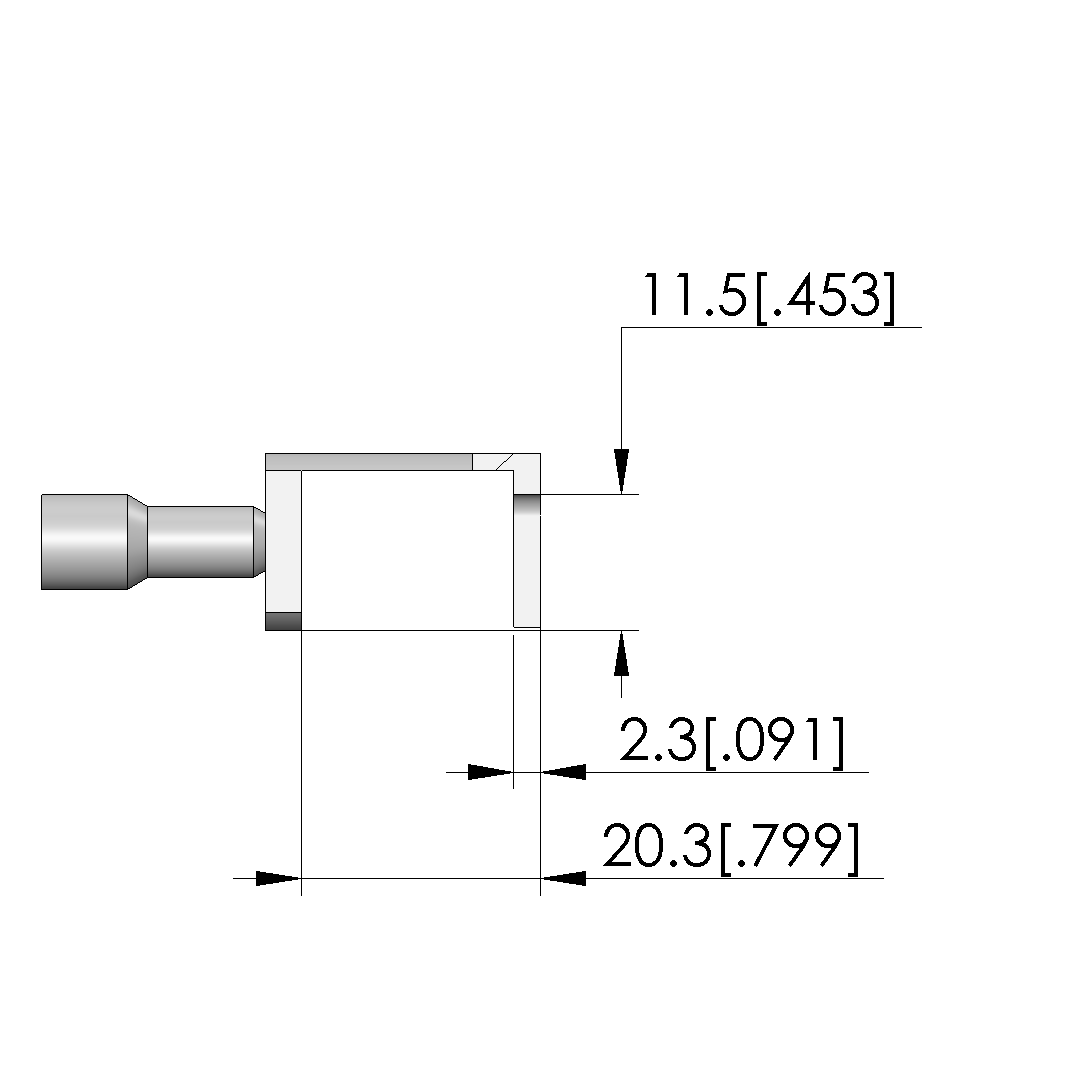

| Max. tip diameter: | 11.5 mm [.452 in] |
| Min. tip diameter: | 4.1 mm [.161 in] |
| Product group: | Insertion and extraction tools (SW-ZW) |
| RoHS-compliant: | Yes |
| Series: | SW-HFS |
| Test probe installation type: | Plug-in |
| Tool for receptacle (KS): | No |
| Tool for test probe (GKS): | Yes |
| Tool version: | Rigid |
Login
Other products in this series:
Technical data
General data
- Product group: Insertion and extraction tools (SW-ZW)
- Compatible test probe(s) / receptacle(s): 509 HFS-410, HFS-860, HFS-840, HFS-810, HFS-440
- Series: SW-HFS
- Tool for receptacle (KS): No
- Tool for test probe (GKS): Yes
- Test probe installation type: Plug-in
- Min. tip diameter: 4.1 mm [.161 in]
- Max. tip diameter: 11.5 mm [.452 in]
- Tool version: Rigid
- RoHS-compliant: Yes
